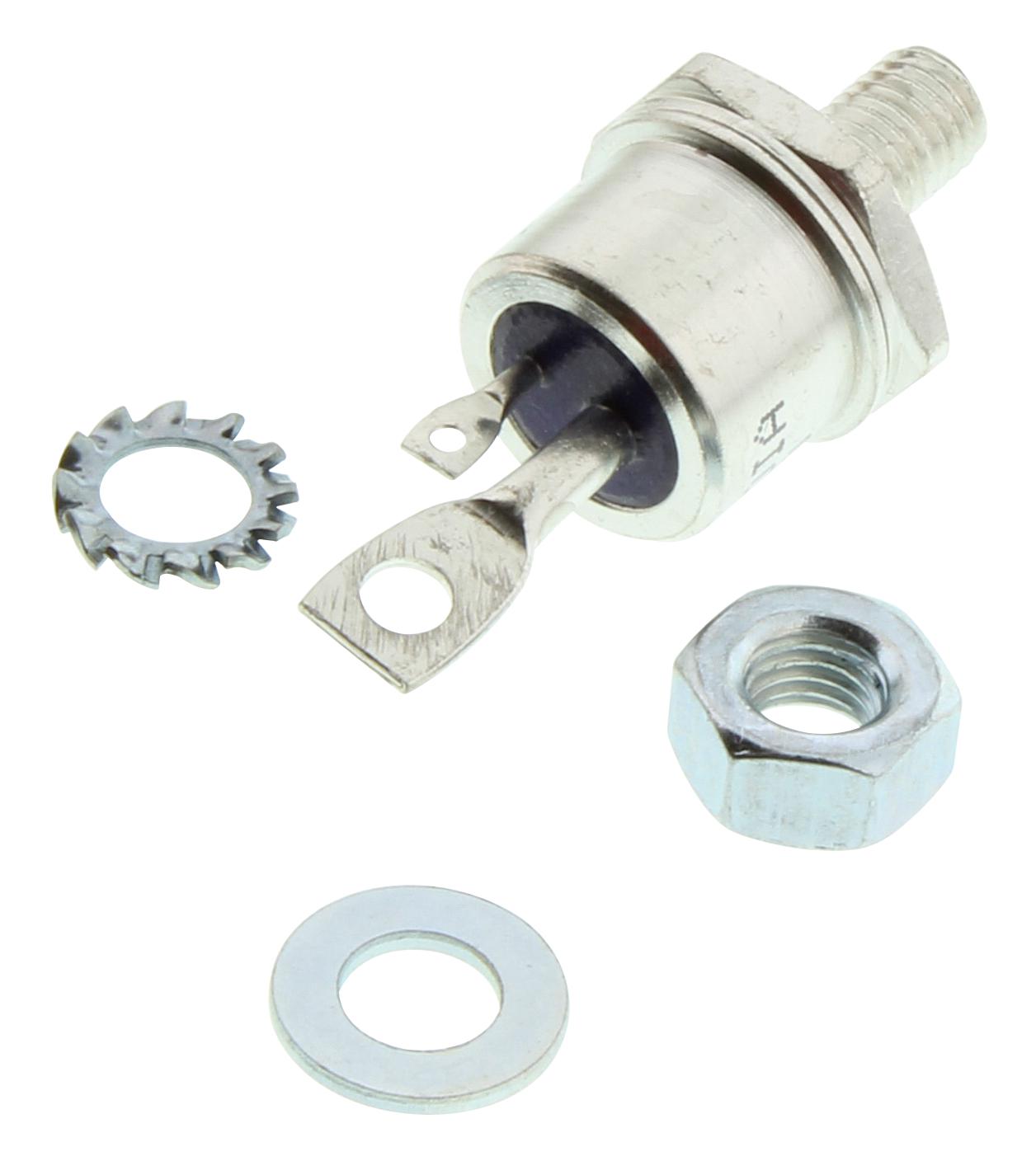

Vishay VS50RIA120 Medium Power Thyristor
The VS-50RIA120 is a versatile 3-pin medium-power phase-control thyristor designed for high-reliability applications including motor control, power supplies, and aerospace systems. It features excellent dynamic characteristics, high surge current capability, and a broad voltage range of 100 V to 1200 V. Suitable for phase control in converters, lighting circuits, and battery chargers, it offers robust operation with a maximum on-state current of 50 A and peak repetitive off-state voltages up to 1200 V. Compatible with standard packages and metric thread options for easy mounting.
Vishay VS50RIA120 Medium Power Thyristor Specifications:
- Maximum average on-state current: 50 A
- Maximum RMS on-state current: 80 A
- Peak surge current: 1490 A (non-repetitive)
- Voltage range: 100 V to 1200 V (Vorw/Varw)
- Maximum repetitive peak off-state voltage: up to 1200 V
- Maximum on-state voltage: 1.60 V at 157 A
- Gate trigger voltage: 20 V maximum
- Gate trigger current: 100 mA maximum
- Rise time: typical 110 us
- Operating junction temperature: -40°C to +125°C
- Thermal resistance (junction to case): 0.35 °C/W
- Packaged in TO-208AC (TO-65), with metric thread option available
- Dimensions: 22.4 mm max. width, 17.27 mm height, 14.5 mm length
- Case style: TO-208AC (TO-65), suitable for high current switching
Buy the Vishay Series VS-50RIA120: Medium Power Phase Control Thyristor
Purchase the Vishay Series VS-50RIA120 thyristor online today for your high-reliability power control needs. Designed for motor controls, lighting circuits, and aerospace applications, this device offers excellent surge capacity, fast switching, and broad voltage ratings from 100 V to 1200 V. Its robust construction supports continuous operation at 50 A, with peak surge currents up to 1490 A. Equipped with a standard package and metric thread options, it ensures easy installation and dependable performance for demanding electronic projects.
Order your Vishay Series VS-50RIA120 thyristor today and enhance your power control solutions with reliable high surge and dynamic performance.
Frequently Asked Questions
Where can I buy Vishay VS50RIA120?
You can click on the BUY or RFQ button to purchase VS50RIA120 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VS50RIA120?
You can download the VS50RIA120 datasheet or visit the Vishay website for support.
Who is the manufacturer of VS50RIA120?
Vishay
