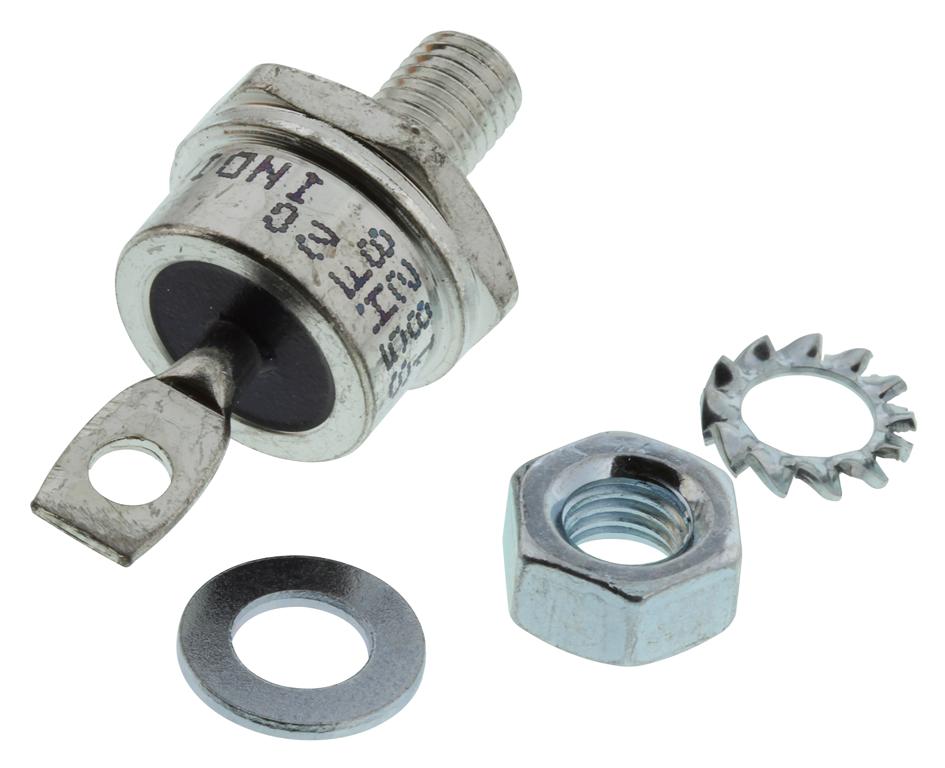

Vishay VS85HF20 Standard Recovery Diode
The VS-85HF20 is a high surge current capability standard recovery diode suitable for various applications such as battery chargers, machine tool controls, converters, and welding. It features a peak repetitive reverse voltage of up to 400V, with the cathode connected to the stud in normal polarity. The device can operate within a maximum junction temperature range of -65°C to 180°C, making it ideal for power management, motor drive and control, and industrial applications.
Vishay VS85HF20 Standard Recovery Diode Specifications:
- Package: DO-203AB (DO-5)
- Maximum Junction Temperature Range: -65°C to 180°C
- Peak Repetitive Reverse Voltage: 400V
- Maximum Average Forward Current: 85A
- Maximum RMS Forward Current: 133A
- Surge Current (10ms): 1450A
- Thermal Resistance, Junction to Case: 0.35 KW
- Thermal Resistance, Case to Heatsink: 0.25
- Maximum Temperature Rating: 180°C
- Threshold Voltage: 0.68V (up to 1200V), 0.69V (for 1400V and 1600V)
- Maximum Forward Voltage Drop: 1.2V at 267A
- Conduction Angle: 180° with 0.10 A, 120° with 0.11 A, 90° with 0.13 A
- Case Style: DO-203AB (DO-5), Dimensions: 15.1 mm x 6.1 mm
- Lead Material: Copper, M8 x 1.25 threaded stud mounting
- Weight: Approximately 9g
Buy the Buy Vishay Standard Recovery Diode Part Number VS-85HF20 Online
Purchase the Vishay VS-85HF20 online today—designed to handle high surge currents up to 1450A with a peak reverse voltage of 400V. Perfect for power supplies, motor drives, and industrial controls, this diode offers robust thermal and electrical performance, ensuring long-lasting durability and excellent reliability. With its precise specifications and quality construction, it is ideal for demanding industrial environments. Ordering online simplifies your procurement process, ensuring quick delivery of this high surge diode for all your power management and control needs.
Get Vishay VS-85HF20 today—built for high surge current and reliable power regulation in industrial applications.
Frequently Asked Questions
Where can I buy Vishay VS85HF20?
You can click on the BUY or RFQ button to purchase VS85HF20 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VS85HF20?
You can download the VS85HF20 datasheet or visit the Vishay website for support.
Who is the manufacturer of VS85HF20?
Vishay
