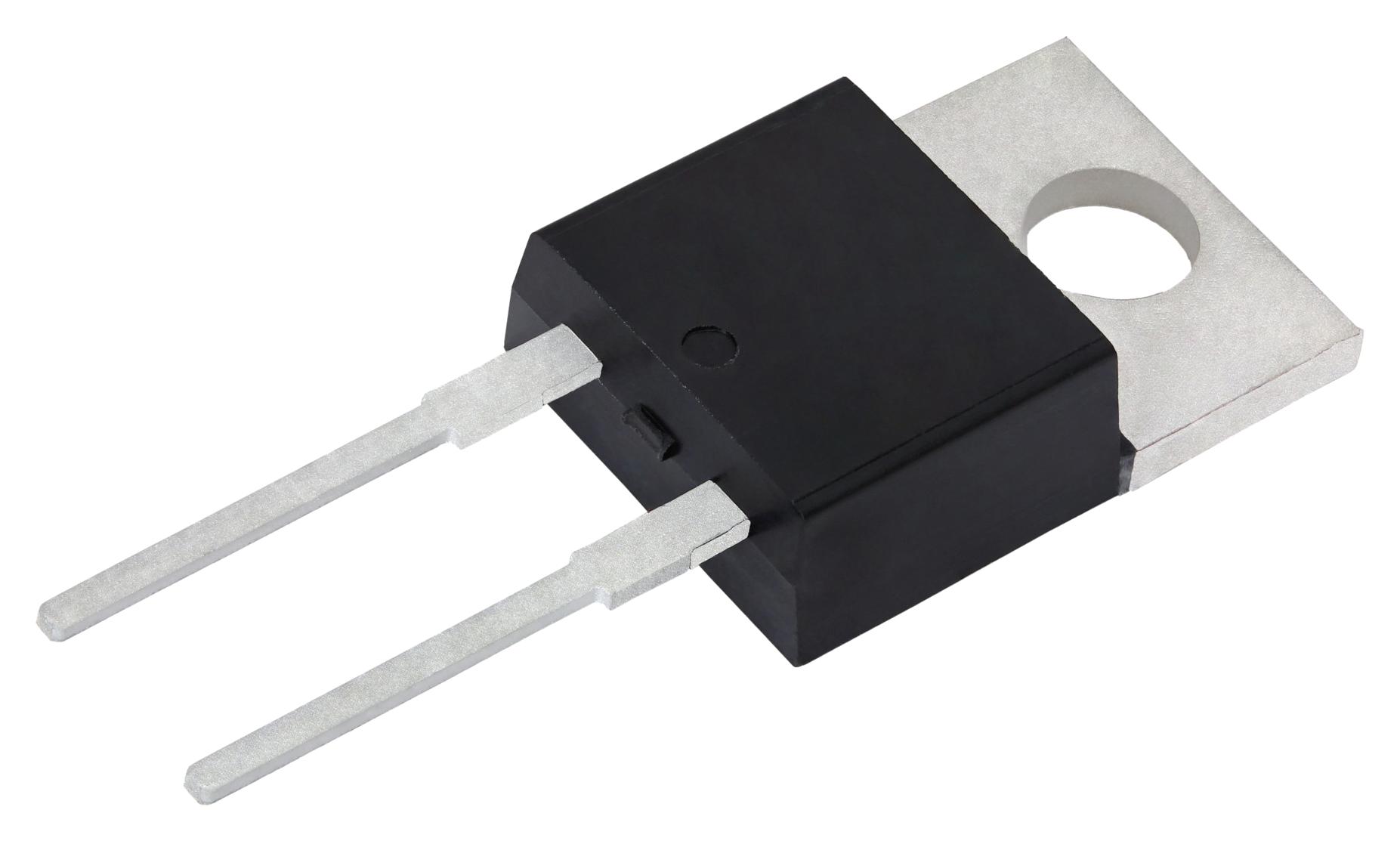

Vishay VSC08ET07TM3 Silicon Carbide Schottky Diode
The Vishay VSC08ET07TM3 is a high-performance 650 V wide bandgap Silicon Carbide (SiC) Schottky diode designed for high-speed switching and efficiency in power electronic applications. It features low recovery tail, no switching losses, and temperature-invariant switching behavior. Suitable for AC/DC power factor correction, DC/DC converters, and ultrafast rectification, this rugged 8 A diode offers excellent thermal and electrical performance, meeting stringent industry standards. Its halogen-free, RoHS-compliant construction ensures safety and environmental compliance for industrial and consumer electronics.
Vishay VSC08ET07TM3 Silicon Carbide Schottky Diode Specifications:
- Maximum repetitive reverse voltage: 650 V
- Forward current: 8 A
- Maximum junction temperature: 175°C
- Repetitive peak surge current: 29.5 A
- Average rectified forward current: 8 A at 126°C
- Power dissipation: 23 W at 110°C
- Case: 2L TO-220AC
- Thermal resistance junction-to-case: 2.28 °C/W
- Operating junction temperature range: -55°C to +175°C
- Reverse leakage current: 100 nA at 150°C, 5 nA at 175°C
- Forward voltage drop: 17 V at 8 A and 150°C, 18 V at 175°C
- Total capacitance: 37 pF at 400 V, 1 MHz
- Material: Silicon Carbide (SiC), Halogen-free, RoHS-compliant
Buy the Vishay Series Silicon Carbide Schottky Diode: VSC08ET07TM3
Purchase the Vishay VSC08ET07TM3 online to enjoy superior efficiency, ultrafast switching, and rugged durability in power electronics. This 650 V SiC diode ensures low conduction losses, fast recovery, and high reliability for applications such as AC/DC power conversion, DC/DC converters, and high-frequency rectification. Its halogen-free, RoHS-compliant design meets rigorous environmental standards. Whether you are building industrial power supplies or advanced electronics, buying online offers convenience, fast delivery, and competitive prices for this industry-leading SiC Schottky diode.
Buy Vishay VSC08ET07TM3 now and experience unmatched reliability and performance in high-speed power switching applications.
