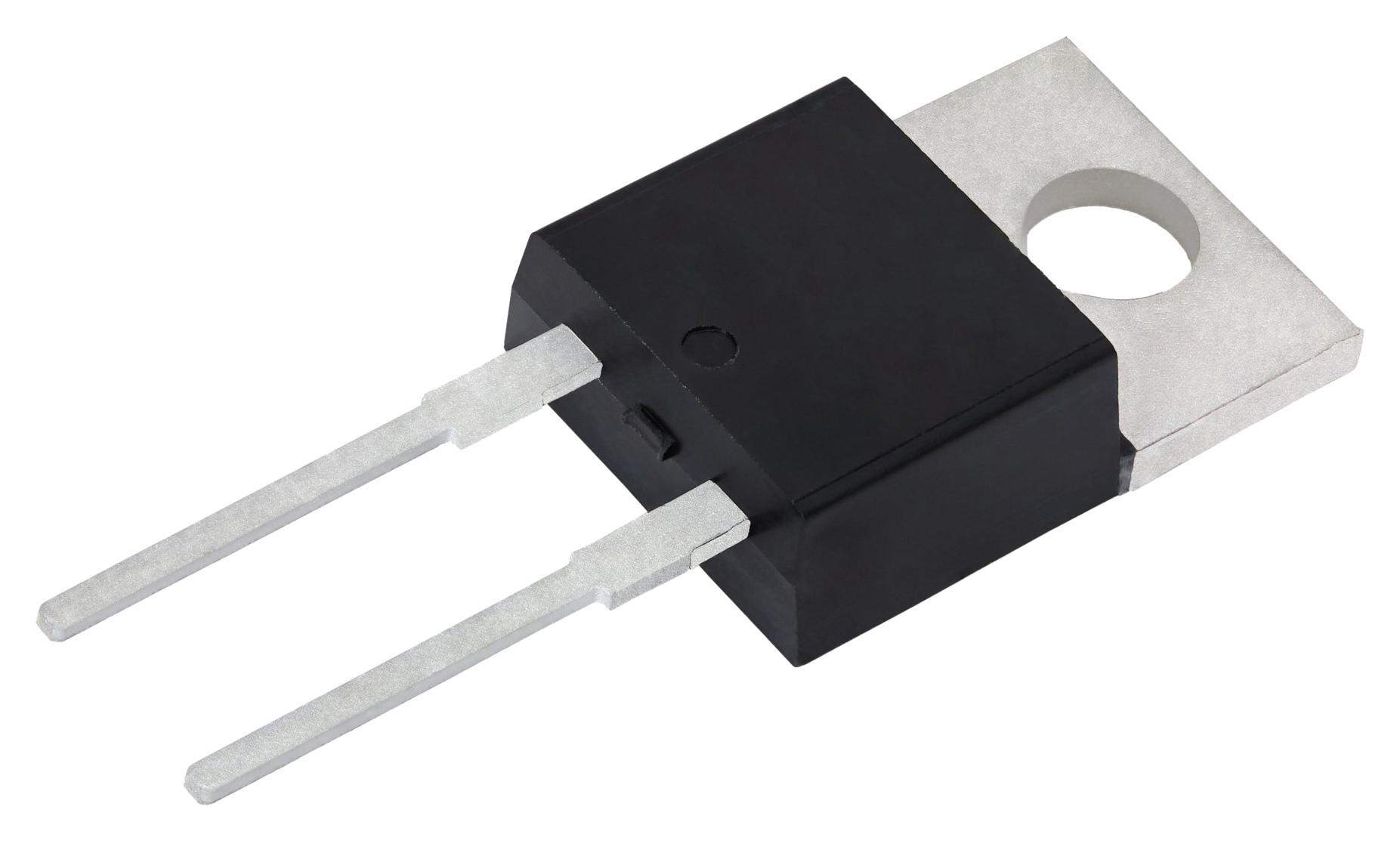

Vishay VSC20ET07TM3 Silicon Carbide Power Diode
The Vishay SiC Schottky diode is a high-performance, rugged 650 V rectifier designed for high-speed switching and efficient operation across a wide temperature range. Using wide bandgap silicon carbide technology, it offers low forward voltage drop, virtually no switching losses, and temperature-invariant switching behavior, making it ideal for AC/DC PFC and DC/DC applications like ultra-high frequency converters in FBPS and LLC systems. Its thermal stability, high surge current capacity, and RoHS compliance ensure reliable performance in demanding industrial environments.
Vishay VSC20ET07TM3 Silicon Carbide Power Diode Specifications:
- Peak repetitive reverse voltage: 650 V
- Average rectified forward current: 20 A at 125°C (DC)
- Repetitive peak surge current: 75 A at 25°C
- Maximum junction temperature: 175°C
- Forward voltage at 20A, 150°C: 1.60V
- Maximum power dissipation: 52 W at 110°C
- Total capacitance: 105 pF at 400 V, 1 MHz
- Thermal resistance junction-to-case: 0.41 °C/W
- Operating and storage temperature range: -55°C to +175°C
- Package: 2L TO-220AC
- RoHS compliant, halogen-free
- Solderable leads, maximum mounting torque 10 in-lbs
Buy the Buy Vishay SiC Schottky Diode Part Number VSC20ET07TM3 Online
Purchase the Vishay Silicon Carbide Power Diode VSC20ET07TM3 online to ensure high-speed switching, low losses, and robust performance in your power conversion projects. This rugged 650 V, 20 A diode features low forward voltage, excellent surge current capacity, and wide temperature operation, making it perfect for AC/DC PFC, DC/DC converters, and high-frequency rectification. Its RoHS compliance and halogen-free design guarantee environmentally responsible manufacturing, while its reliable mechanical construction ensures durability in demanding industrial environments. Buy online now to enhance your system efficiency and performance.
Get Vishay VSC20ET07TM3 today—built for high efficiency, rugged performance, and reliable power rectification in demanding industrial applications.
Frequently Asked Questions
Where can I buy Vishay VSC20ET07TM3?
You can click on the BUY or RFQ button to purchase VSC20ET07TM3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VSC20ET07TM3?
You can download the VSC20ET07TM3 datasheet or visit the Vishay website for support.
Who is the manufacturer of VSC20ET07TM3?
Vishay
