Vishay VSMBR1645M3 Schottky Rectifier
The Vishay Schottky rectifier VSMBR1645M3 is a high-performance, RoHS-compliant diode designed for power supply, converter, and reverse battery protection applications. It features low forward voltage drop, high temperature operation up to 150°C, and a rugged package with a guard ring for enhanced reliability. Optimized for high-frequency switching, this diode offers high purity, moisture resistance, and reliable operation in demanding environments, making it ideal for industrial and electronic applications requiring efficient current handling and durability.
Vishay VSMBR1645M3 Schottky Rectifier Specifications:
- Maximum DC reverse voltage: 35 V or 45 V
- Maximum average forward current: 16 A at 134°C
- Peak surge current: 150 A
- Maximum forward voltage drop: 0.57 V at 16 A and 125°C
- Maximum reverse leakage current: 40 mA at rated DC voltage and 125°C
- Junction capacitance: 1400 pF at 5V reverse voltage
- Operating junction temperature: -65°C to +150°C
- Thermal resistance junction to case: 0.50 K/W
- Maximum storage temperature: -65°C to +175°C

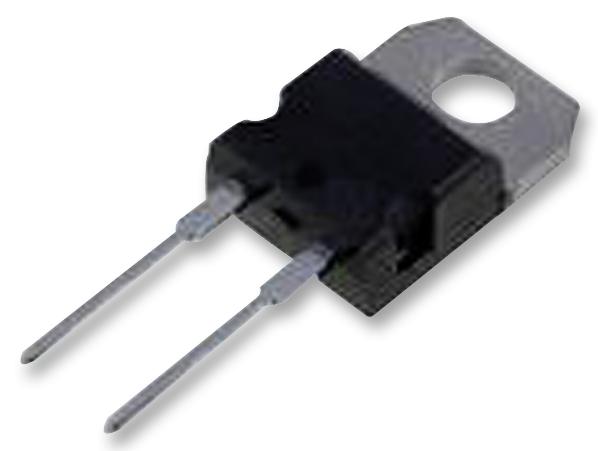

- Package: TO-220AC, JEDEC style 2L
- Typical series inductance: 8.0 nH
- Mounting torque: 6-12 kgf cm
- Material: Halogen-free, RoHS compliant
Buy the Vishay VS-MBR1645-M3 – Reliable Schottky Rectifier for Industrial Applications
Discover the Vishay VS-MBR1645-M3 Schottky rectifier, engineered for high efficiency and durability. With a 45V voltage rating and 16A current capacity, this diode ensures reliable performance in power supplies, converters, and reverse battery protection circuits. Its rugged TO-220AC package and high temperature tolerance up to 150°C make it suitable for demanding industrial and electronic environments. RoHS compliant and halogen-free, this rectifier provides a durable, moisture-resistant solution that enhances system reliability and longevity.
Buy Vishay VS-MBR1645-M3 now and experience unmatched reliability and performance in high-current, high-frequency power electronics. Perfect for switching power supplies and protection circuits.
