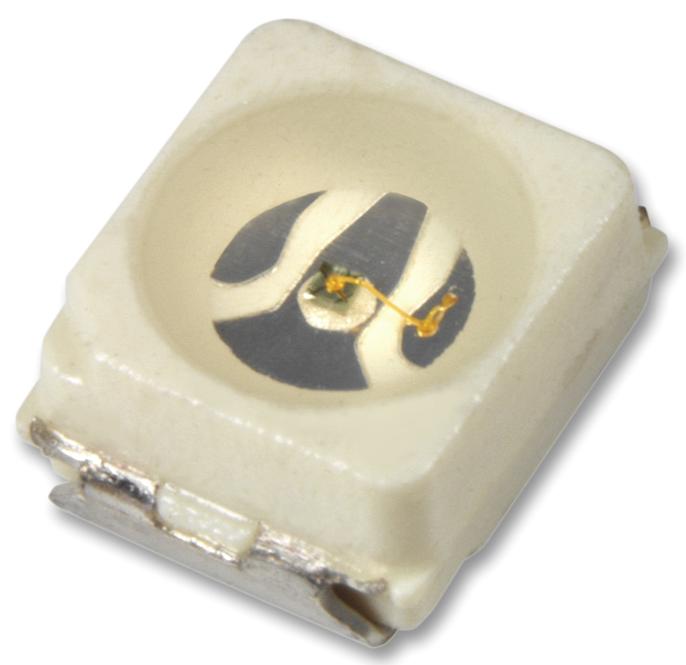

Vishay VSML3710GS18 Infrared Emitter Diode
This high-power infrared emitting diode operates at 940 nm wavelength using GaAlAs technology, making it ideal for IR emitters in sensors, photo interrupters, and low-space applications. Its compact PLCC-2 surface mount package ensures easy integration into electronic assemblies, providing high radiant power and intensity with a half-intensity angle of ±60°. The diode is AEC-Q101 qualified for high reliability, supports high pulse current operations, and has a low forward voltage. Suitable for household appliances, tactile keyboards, and reflective sensors, ensuring excellent spectral matching with silicon photodetectors for efficient performance.
Vishay VSML3710GS18 Infrared Emitter Diode Specifications:
- Peak wavelength: 940 nm
- Package type: surface mount, PLCC-2
- Dimensions: 3.5 x 2.8 x 1.75 mm
- Forward voltage: 1.35 V (at 100 mA), 26 V (at 1A)
- Radiant power: 35 mW, Radiant intensity: 60 mW/st at 1A
- Operating temperature range: -40°C to +85°C
- Storage temperature range: -40°C to +100°C
- Soldering temperature: Max 260°C for reflow
- Peak forward current: 200 mA, Surge: 1 A
- Peak wavelength: 940 nm, Spectral bandwidth: 50 nm
- Half-intensity angle: ±60°
- Bias: Suitable for high pulse current
- RoHS compliant, Halogen-free, AEC-Q101 qualified
Buy the Vishay Series VSML3710 Infrared Emitter: 940 nm High Power IR Diode
Order the Vishay VSML3710 infrared emitter diode today for your sensor, illumination, or household electronic needs. Designed with GaAlAs technology, it features high radiant power at 940 nm wavelength, compact PLCC-2 package, and excellent spectral matching with silicon photodetectors. The diode's high reliability, low forward voltage, and suitability for high pulse currents make it ideal for applications in photo interrupters, reflective sensors, and low-space environments. Purchase online now to ensure fast delivery and enhanced performance in your product designs.
Get Vishay VSML3710 high-power infrared diode today—built for precision, reliability, and optimal sensing performance in your applications.
Frequently Asked Questions
Where can I buy Vishay VSML3710GS18?
You can click on the BUY or RFQ button to purchase VSML3710GS18 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VSML3710GS18?
You can download the VSML3710GS18 datasheet or visit the Vishay website for support.
Who is the manufacturer of VSML3710GS18?
Vishay
