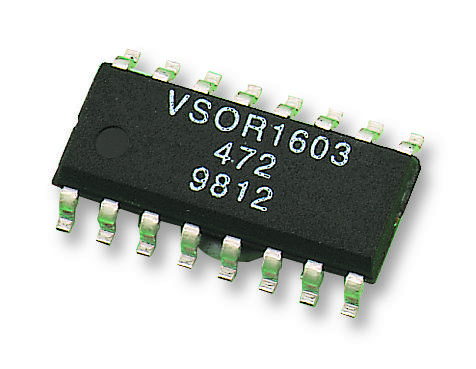

Vishay VSOR1603102JTF Thin Film Resistor Network
Vishay Dale Thin Film VSOR series resistor networks are compact, molded epoxy packages designed for surface mount technology in analog and digital circuits. Featuring tantalum nitride on silicon resistive elements, these resistor networks offer high stability and low noise, making them suitable for industrial, medical, and scientific instrumentation. Available in various package sizes such as SOIC narrow, QSOP, and TSSOP, they provide resistance ranges from 10 ohms to 47 kilo-ohms, with tolerances of 1%, 2%, or 5%. Their robust construction ensures environmental resilience and compatibility with automated placement equipment, ensuring reliable performance in demanding applications.
Vishay VSOR1603102JTF Thin Film Resistor Network Specifications:
- Material: Tantalum nitride on silicon
- Resistance Range: 10 ohms to 47 kilo-ohms
- Resistance Tolerance: 1%, 2%, 5%
- Power Rating: 100 mW max at +70°C
- Package Types: SOIC narrow, QSOP, TSSOP
- Pin Count: 16, 20, 24
- Temperature Range: -55°C to +125°C
- Storage Temperature: -55°C to +150°C
- Environmental Resistance: UL 94 V-0 flame retardant, RoHS compliant
- Lead Plating: 100% matte tin
- Dimensions vary by package: A-16 PIN approx. 0.206 inches, A-20 PIN approx. 0.256 inches, A-24 PIN approx. 0.306 inches
- Voltage Rating: 50 V
- Noise Level: < -35 dB
- Thermal EMF: Specified per datasheet
- Shelf Life Stability: Absolute and Ratio
- Mechanical: Copper alloy terminals, molded epoxy body, coplanarity 0.0005 inches
Buy the Vishay VSOR – Reliable Thin Film Resistor Networks for Industrial Applications
Purchase Vishay SeriesVSOR thin film resistor networks online today and benefit from high-quality, low noise, and stable performance designed to meet the demands of industrial, medical, and scientific instrumentation. With various package types, resistance ranges, and precise tolerances, these resistor networks are suitable for automated surface-mount assembly. Enjoy fast delivery and reliable product support, making your electronic projects more efficient and dependable. Elevate your designs with Vishay's proven technology for optimal precision and environmental resilience.
Order your Vishay SeriesVSOR resistor network today and ensure high stability and low noise performance for your industrial and scientific circuits.
Frequently Asked Questions
Where can I buy Vishay VSOR1603102JTF?
You can click on the BUY or RFQ button to purchase VSOR1603102JTF from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VSOR1603102JTF?
You can download the VSOR1603102JTF datasheet or visit the Vishay website for support.
Who is the manufacturer of VSOR1603102JTF?
Vishay
