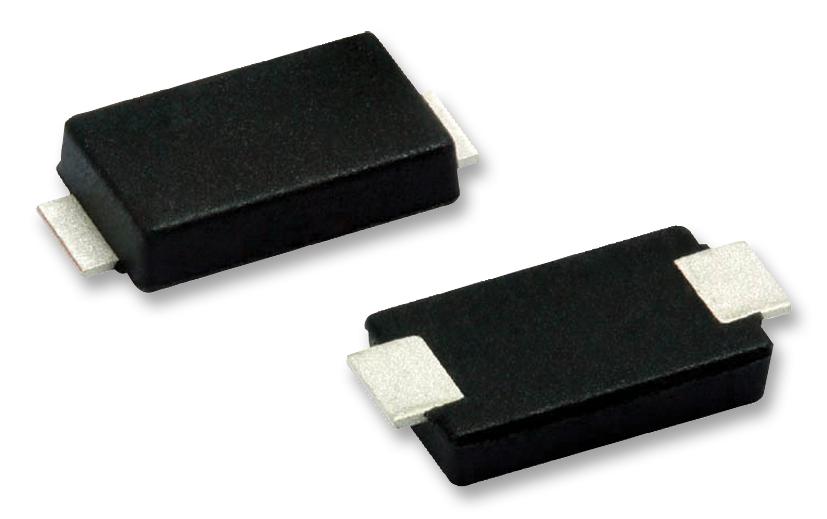

Vishay VSS8D2M6M3H Schottky Rectifier
The VSS8D2M6 is a surface-mount TMBS® (Trench MOS Barrier Schottky) rectifier designed for high-frequency inverters, freewheeling, DC/DC converters, and automotive applications. It features a low-profile SlimSMAW (DO-221AD) package, meets UL 94 V-0 flammability rating, and is halogen-free and RoHS-compliant. This device is AEC-Q101 qualified, with a maximum repetitive peak reverse voltage of 60 V, and an average forward rectified current of 2 A. It provides low forward voltage, excellent thermal, and electrical characteristics suitable for demanding industrial and automotive environments.
Vishay VSS8D2M6M3H Schottky Rectifier Specifications:
- Case: SlimSMAW (DO-221AD)
- Maximum Repetitive Peak Reverse Voltage: 60 V
- Average Forward Rectified Current: 2 A
- Peak Forward Surge Current: 60 A
- Junction Temperature Range: -40°C to +175°C
- Storage Temperature Range: -55°C to +175°C
- Thermal Resistance Junction-to-Ambient: 12°C/W (typ), 15°C/W (max)
- Forward Voltage (Ta=25°C): 0.48 V (typ), 0.62 V (max)
- Reverse Current at 60 V (Ta=25°C): 0.36 μA (typ), 0.54 μA (max)
- Reverse Current at 60 V (Ta=125°C): 15 mA (typ), 5.0 mA (max)
- Junction Capacitance: 430 pF at 4.0 V, 1 MHz
- Mounting: Surface-mount, matte tin plated leads, solderable per J-STD-002
- Package: SlimSMAW (DO-221AD), designed for reliable quick mounting
- Compliance: Halogen-free, RoHS, AEC-Q101 qualified
Buy the Vishay VSS8D2M6 – Reliable Schottky Rectifier for Industrial Applications
Purchase the Vishay VSS8D2M6 Schottky rectifier online and experience dependable performance in high-frequency inverter, freewheeling, and automotive circuits. With a compact SlimSMAW package, rated at 60 volts and 2 amps, this device offers low forward voltage, excellent thermal management, and robust electrical characteristics. Ideal for demanding industrial and automotive environments, it ensures efficient power delivery, fast switching, and long-term reliability. Order now to secure quality components and enhance your electronic projects easily and quickly.
Order your Vishay VSS8D2M6 Schottky rectifier today and ensure reliable power conversion for industrial, automotive, and high-frequency circuits.
Frequently Asked Questions
Where can I buy Vishay VSS8D2M6M3H?
You can click on the BUY or RFQ button to purchase VSS8D2M6M3H from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VSS8D2M6M3H?
You can download the VSS8D2M6M3H datasheet or visit the Vishay website for support.
Who is the manufacturer of VSS8D2M6M3H?
Vishay
