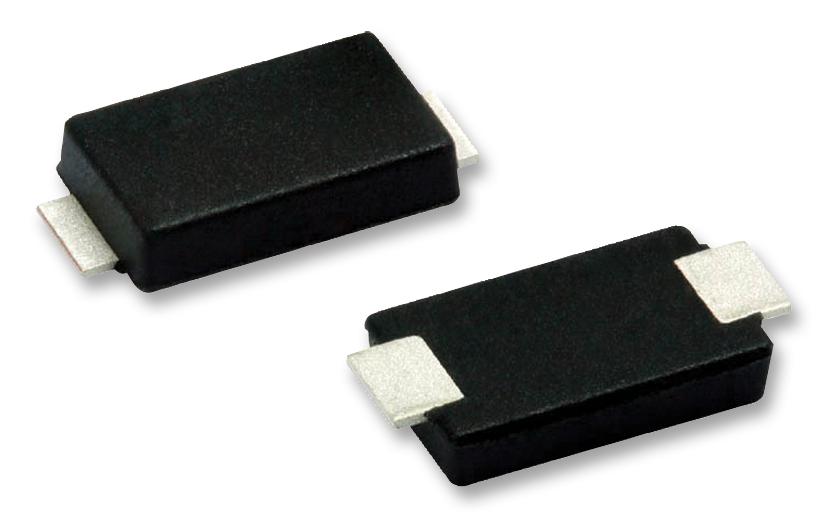

Vishay VSS8D3M12HM3H Schottky Rectifier
The VSS8D3M12 is a high-performance surface-mount Schottky rectifier designed for industrial, automotive, and power supply applications. Featuring a low-profile SlimSMAW (DO-221AD) package, it provides a maximum repetitive peak reverse voltage of 120V and a forward current of 2A. Its construction ensures excellent thermal resistance, with a mounting pad setup suitable for PCB mounting. Suitable for high-frequency inverters, DC/DC converters, and polarity protection, it is halogen-free, RoHS-compliant, and available in AEC-Q101 qualified variants, ensuring reliability and safety in demanding environments.
Vishay VSS8D3M12HM3H Schottky Rectifier Specifications:
- Maximum Repetitive Peak Reverse Voltage: 120 V
- Maximum Average Forward Rectified Current: 2 A
- Peak Forward Surge Current: 60 A
- Operating Junction Temperature Range: -40°C to +175°C
- Storage Temperature Range: -55°C to +175°C
- Case: SlimSMAW (DO-221AD)
- Mounting: Surface-mount on PCB, intended for high frequency inverter, DC/DC converter, and polarity protection applications
- Material: Halogen-free, RoHS-compliant, with UL 94 V-0 flammability rating
- Terminal Leads: Matte tin plated, solderable, meets JESD 22-B102
- Maximum Forward Voltage (IF = 3A): 0.83 V at 25°C
- Reverse Current (IR = 120 V): Max. 4 mA at 125°C
- Junction Capacitance: Typical 310 pF at 4.0 V, 1 MHz
- Thermal Resistance Junction-to-Ambient: Typical 150°C/W
- Peak Forward Surge Current: 60 A for 8.3 ms
- Mechanical Dimensions: Refer to package outline in inches (millimeters) included in datasheet
- Meets MSL Level 1, per J-STD-020 standards
- Compliance: RoHS, Halogen-Free, AEC-Q101 qualified options available
Buy the VISHAY VSS8D3M12 – Reliable Schottky Rectifier for Industrial Applications
Purchase the Vishay VSS8D3M12 surface-mount Schottky rectifier online today and enhance your power supply designs. This high-quality component offers a 120V reverse voltage, 2A forward current, and is RoHS and halogen-free. Its compact SlimSMAW package ensures easy integration into high-frequency inverters, DC/DC converters, and polarity protection circuits. With excellent thermal performance and compliance with industry standards, this rectifier ensures durability and reliability in demanding industrial and automotive applications. Order now for fast delivery and proven performance.
Buy Vishay VSS8D3M12 now and experience unmatched reliability and performance in power electronics and automotive power management.
Frequently Asked Questions
Where can I buy Vishay VSS8D3M12HM3H?
You can click on the BUY or RFQ button to purchase VSS8D3M12HM3H from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VSS8D3M12HM3H?
You can download the VSS8D3M12HM3H datasheet or visit the Vishay website for support.
Who is the manufacturer of VSS8D3M12HM3H?
Vishay
