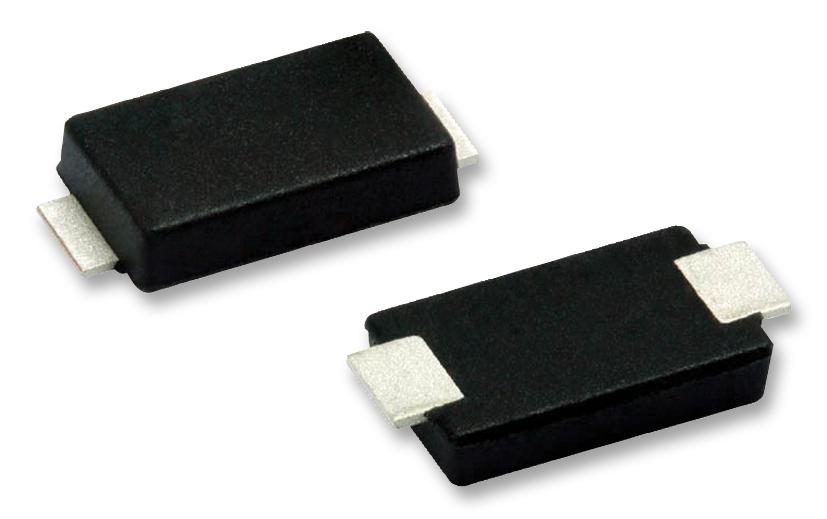

Vishay VSS8D3M6M3H Surface-Mount Schottky Rectifier
The VSS8D3M6 is a surface-mount Schottky rectifier designed for high-frequency inverters, DC/DC converters, and polarity protection in auto, industrial, and commercial applications. It features a low-profile SlimSMAW package with a maximum repetitive peak reverse voltage of 60V and a forward current of 3A. The device boasts a low forward voltage drop and high reliability, meeting automotive AEC-Q101 standards. Its compact design, thermal efficiency, and RoHS compliance make it ideal for space-constrained electronics requiring efficient power rectification.
Vishay VSS8D3M6M3H Surface-Mount Schottky Rectifier Specifications:
- Package: SlimSMAW (DO-221AD)
- Maximum Repetitive Peak Reverse Voltage: 60 V
- Maximum Average Forward Rectified Current: 3 A
- Peak Forward Surge Current: 60 A
- Forward Voltage at 3A, 25°C: 0.54 V (typical), 0.62 V (max)
- Operating Junction Temperature Range: -40°C to +175°C
- Storage Temperature Range: -55°C to +175°C
- Thermal Resistance Junction-to-Ambient: 120°C/W (typical), 150°C/W (max)
- Material: Halogen-free, RoHS-compliant, meets UL 94V-0
- Terminals: Matte tin plated leads, solderable as per J-STD-002
Buy the VISHAY VSS8D3M6 – Reliable Schottky Rectifier for Industrial Applications
Purchase the Vishay VSS8D3M6 Schottky rectifier online now to optimize your power electronics with its compact design, low forward voltage, and high current handling. Perfect for high-frequency converters, automotive, and industrial applications, this reliable device offers excellent thermal performance and RoHS compliance. Whether you're replacing an existing component or designing new circuits, ordering online ensures fast delivery and consistent quality, helping you meet project deadlines and maintain high standards of efficiency and durability in your electronic systems.
Order your Vishay VSS8D3M6 series rectifier today and ensure your high-frequency inverter and automotive circuits operate with maximum efficiency and reliability.
Frequently Asked Questions
Where can I buy Vishay VSS8D3M6M3H?
You can click on the BUY or RFQ button to purchase VSS8D3M6M3H from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VSS8D3M6M3H?
You can download the VSS8D3M6M3H datasheet or visit the Vishay website for support.
Who is the manufacturer of VSS8D3M6M3H?
Vishay
