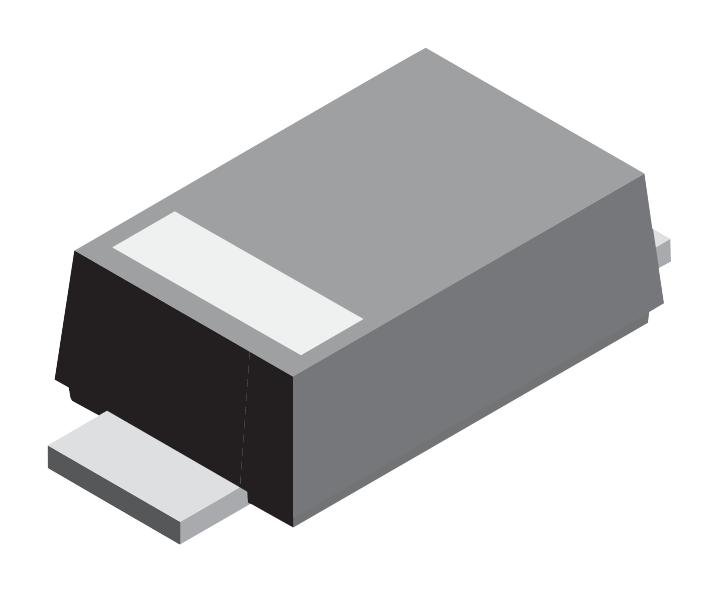

Vishay VTVS8V5ASMFM308 Transient Voltage Suppressor Diode
The VTVSxxASMF Series 400W Transient Voltage Suppressor diodes in SMF package provide reliable protection for portable electronics and automotive systems against voltage transients with a surge capability of 400W at 10/100µs. These devices feature low-noise technology, rapid response times, and precise component protection, making them ideal for space-constrained applications such as smartphones, tablets, laptops, and automotive electronics. Qualified for automotive use, they offer low leakage, fast response, and accurate voltage clamping, ensuring safe operation in sensitive electronic components. Lead times may be extended due to market demand.
Vishay VTVS8V5ASMFM308 Transient Voltage Suppressor Diode Specifications:
- Peak pulse power: 400 W at 10/100µs waveform
- Maximum working voltage: 5.00 V to 63.00 V (varies by model)
- Peak pulse current: Up to 588 A
- Operating temperature: -55°C to +175°C
- Package: DO-219AB (SMF)
- Clamping voltage at pulse: Ranges from 3.54 V to 108 V
- Response time: Very fast, low-noise technology
- Qualification: Automotive (AEC-Q101 qualified)
- Lead-free, RoHS compliant, Halogen-free
- Solderability: Wave and reflow capable
- Discharge surge: +30 KV contact, +30 KV air discharge according to IEC 61000-4-2
Buy the Vishay Series TVS Diode: VTVS8V5ASMFM308
Secure your electronics with the Vishay VTVS8V5ASMFM308 400W TVS diode. Designed for fast response and low noise, it offers reliable transient suppression for consumer gadgets and automotive systems. Perfect for space-limited applications such as smartphones, tablets, and laptops. Its low leakage current and precise voltage clamping ensure device safety and longevity. RoHS compliant and halogen-free, these diodes are solderable via wave or reflow process, guaranteeing easy integration. Protect your sensitive electronics today by purchasing this high-performance TVS diode online.
Buy Vishay VTVS8V5ASMFM308 transient voltage suppressor diode now and protect your delicate electronic systems with fast, reliable surge suppression.
Frequently Asked Questions
Where can I buy Vishay VTVS8V5ASMFM308?
You can click on the BUY or RFQ button to purchase VTVS8V5ASMFM308 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VTVS8V5ASMFM308?
You can download the VTVS8V5ASMFM308 datasheet or visit the Vishay website for support.
Who is the manufacturer of VTVS8V5ASMFM308?
Vishay
