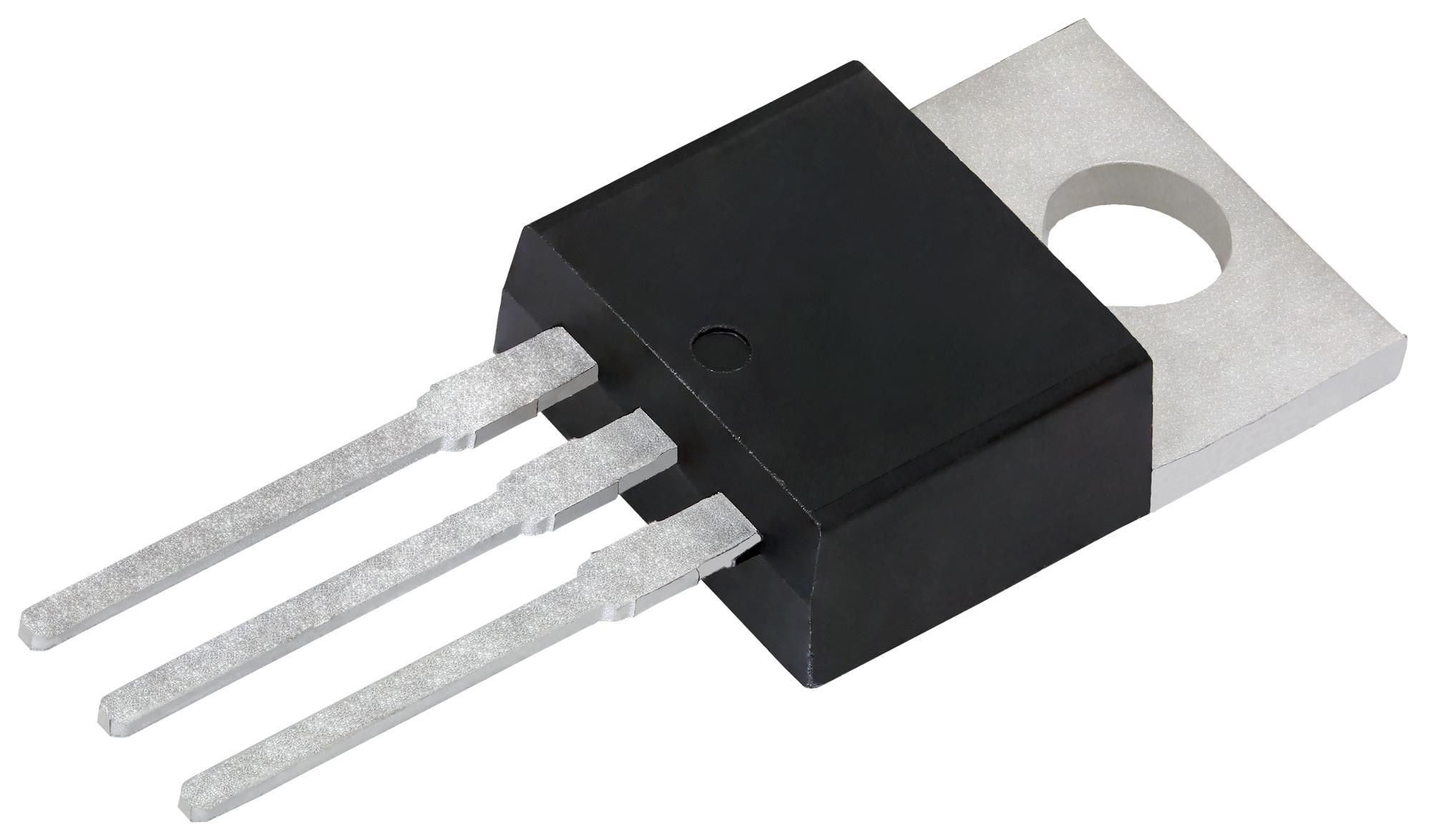

Vishay VX60M100CHM3P High Voltage Rectifier
The Vishay VX60M100C is a dual high voltage TMBS® (Trench MOS Barrier Schottky) rectifier designed for high-frequency power conversion applications. Featuring low forward voltage drop at 0.39 V at 5.0A, it offers high efficiency and low power losses. The device operates within a junction temperature range of -40°C to +175°C and is qualified for automotive use, with RoHS and halogen-free compliance. Suitable for DC/DC converters, switching power supplies, and reverse battery protection in industrial, commercial, and automotive systems.
Vishay VX60M100CHM3P High Voltage Rectifier Specifications:
- Maximum repetitive peak reverse voltage: 100 V
- Maximum average forward rectified current per device: 60 A
- Peak forward surge current: 320 A
- Forward voltage at 5A: 0.49 V typical, 0.61 V max
- Forward voltage at 30A: 0.75 V typical, 0.82 V max
- Reverse current at 70V, 25°C: 0.32 mA, at 100V, 25°C: 0.7 mA, max 20 mA
- Junction capacitance: 2600 pF at 4.0 V, 1 MHz
- Thermal resistance junction-to-ambient: 1°C/W typical
- Operating junction temperature: -40°C to +175°C
- Case: TO-220AB, halogen-free, RoHS-compliant
- Mounting torque: 10 in-lbs maximum
- Material: Matte tin plated leads, solderable per standards
- Dimensions: Length 425–465 mm, width varies, conforming to JEDEC TO-220AB outline
- RoHS and halogen-free materials, AEC-Q101 qualified
Buy the Vishay Series VX60M100C High Voltage Rectifier: VX60M100C
Buy the Vishay Series VX60M100C dual high voltage Schottky rectifier online today to enhance your power supply efficiency. Featuring low forward voltage drop of 0.39 V at 5A and a maximum voltage rating of 100V, this device is ideal for high-frequency switching, reverse battery protection, and industrial power conversion. Its robust TO-220AB package ensures excellent thermal management, while RoHS and halogen-free compliance support eco-friendly manufacturing. Perfect for automotive, commercial, and industrial applications requiring reliable, high-performance rectification.
Order your Vishay Series VX60M100C high voltage rectifier today and ensure high efficiency and reliability for your power management projects.
Frequently Asked Questions
Where can I buy Vishay VX60M100CHM3P?
You can click on the BUY or RFQ button to purchase VX60M100CHM3P from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VX60M100CHM3P?
You can download the VX60M100CHM3P datasheet or visit the Vishay website for support.
Who is the manufacturer of VX60M100CHM3P?
Vishay
