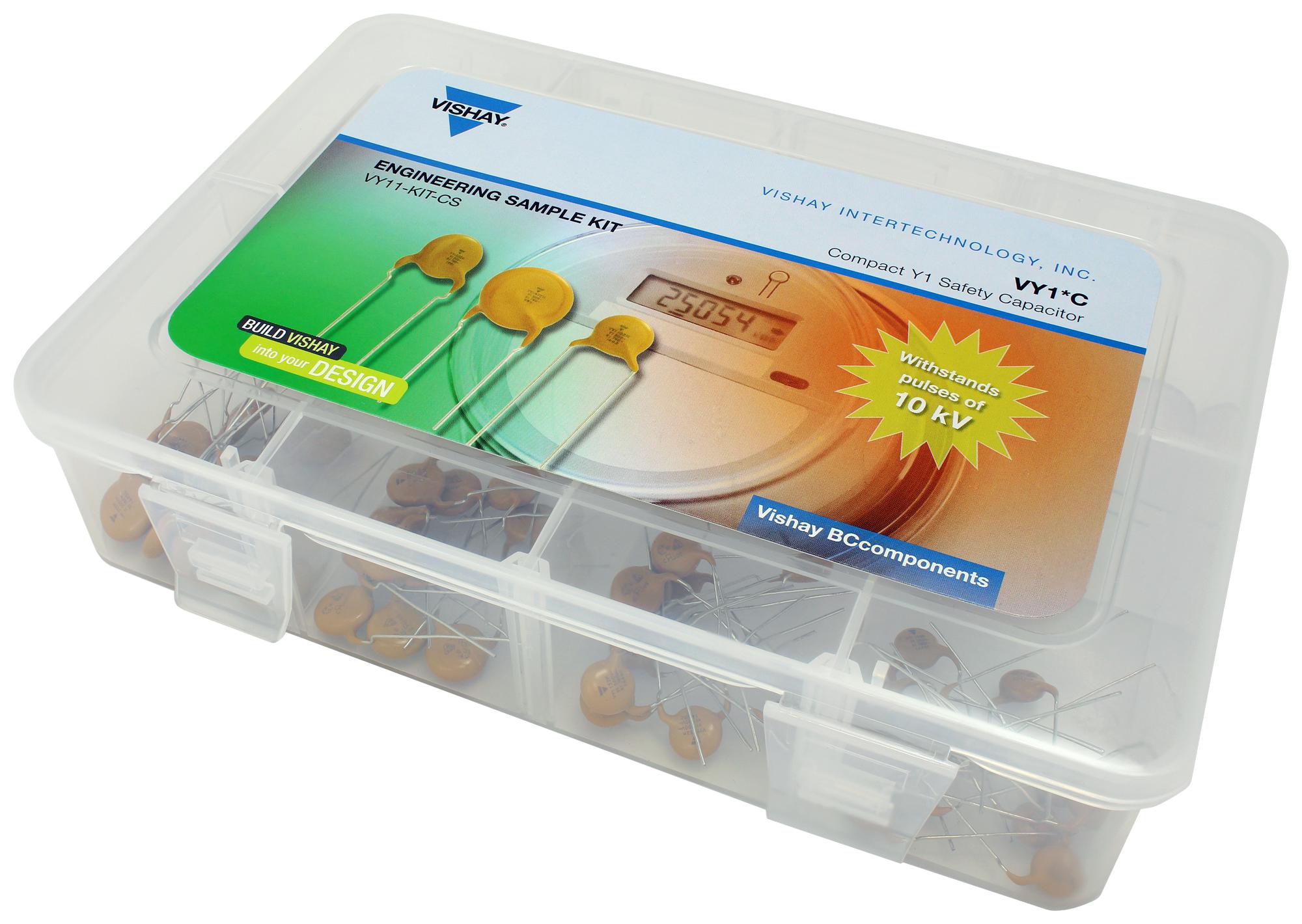

Vishay VY11KITCS Ceramic Disc Capacitor Kit
The VY11-KIT-CS is a comprehensive kit containing ten pieces of each of seven different ceramic disc capacitors, with capacitance values ranging from 470pF to 4700pF. These single-layer capacitors are rated for 760VAC (Class X1) and 500VAC (Class Y1), featuring a compact design, high reliability, and compliance with IEC 60384-14 3rd edition standards. They have vertical or straight kinked leads, can withstand 10kV pulses, and have a Y5U temperature coefficient.
Vishay VY11KITCS Ceramic Disc Capacitor Kit Specifications:
- Capacitors type: Class X1, 760 Vac, Class Y1, 500 Vac
- Temperature coefficient: Y5U
- Tolerance: 20%
- Capacitance range: 470pF to 4700pF
- Number of capacitance values: 7
- Capacitors per value: 10
- Lead configuration: Vertical or straight kinked leads
- Rated voltage: 760VAC (X1), 500VAC (Y1)
- Dimensions: Vary by model, typically 75x50 mm for larger values
- Can pass 10 kV pulses
- Material categorization: RoHS compliant
- Compliance: IEC 60384-14 standard, UL listed
- Features: Compact size, high reliability, single-layer design
Buy the Vishay VY11-KIT-CS – Reliable Ceramic Disc Capacitors for Industrial Applications
Purchase the Vishay VY11-KIT-CS ceramic capacitor kit online and enhance your electronic projects with high-quality, reliable capacitors. Perfect for high-voltage filtering, snubber circuits, and safety applications, this kit includes seven capacitance values from 470pF to 4700pF, each with 10 pieces. Rated for 760VAC and 500VAC, these single-layer ceramic capacitors feature a compact design, high reliability, and compliance with IEC standards. Order now to ensure your designs meet demanding industrial needs.
Order your Vishay SeriesVY11-KIT-CS ceramic capacitor kit today and give your high-voltage filtering projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy Vishay VY11KITCS?
You can click on the BUY or RFQ button to purchase VY11KITCS from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VY11KITCS?
You can download the VY11KITCS datasheet or visit the Vishay website for support.
Who is the manufacturer of VY11KITCS?
Vishay
