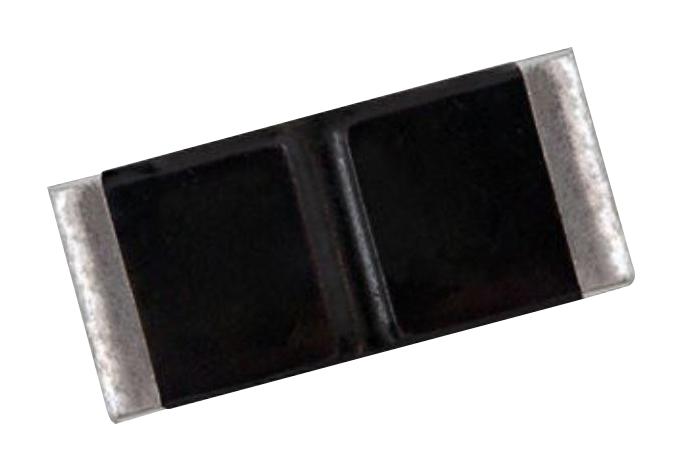

Vishay WFMA2010R0200FEA Power Sense Resistor
The Vishay Power Metal Plate Current Sense Resistor is designed for high power applications like switching and linear power supplies, instruments, and power inverters. It features low resistance values, excellent frequency response up to 50 MHz, very low thermal EMF, and RoHS compliance. Available in 2010 and 2512 sizes, these resistors have a solid metal manganese-copper and nickel-chromium-aluminum alloy resistive element with low TCR (< 20 ppm/°C). Suitable for all current sensing and pulse applications, ensuring reliability and precision in demanding environments.
Vishay WFMA2010R0200FEA Power Sense Resistor Specifications:
- Size: 2010 and 2512 package
- Power Rating: 2.0 W (2010), 3.0 W (2512) at 110°C or 95°C
- Resistance Range: 0.005 to 0.500 ohms (typical)
- Resistance Tolerance: ±1%, ±5%
- Temperature Coefficient: All <20 ppm/°C
- Operating Temperature Range: -65°C to +170°C
- Maximum Working Voltage: Based on power dissipation and resistor size
- Terminal Temperature: 110°C (2010), 95°C (2512)
- Material: Solid metal manganese-copper and nickel-chromium-aluminum alloy
- Inductance: Very low, 0.5 nH to 5 nH
- Frequency Response: Up to 50 MHz
- Thermal EMF: <3 μV/°C
- RoHS and halogen-free compliant
- Packaging: Tape and reel, 2000 to 4000 pieces per reel
- Certifications: AEC-Q200 qualified
Buy the Buy Vishay Power Metal Plate Current Sense Resistor Part Number WFMA2010R0200FEA Online
Experience the reliability and precision of Vishay Power Metal Plate Current Sense Resistors, available in 2010 and 2512 sizes. These resistors are ideal for current sensing in switching and linear power supplies, offering low resistance, excellent frequency response, and low thermal EMF. RoHS compliant and suitable for demanding industrial applications, they feature low TCR (<20 ppm/°C), solid metal alloy elements, and are qualified to meet AEC-Q200 standards. Enhance your projects with Vishay’s high-performance power sensing solutions, available for quick online purchase.
Order your Vishay Series WFMA2010R0200FEA high power current sensing resistor today and ensure reliable performance in your switching and linear power supply projects.
Frequently Asked Questions
Where can I buy Vishay WFMA2010R0200FEA?
You can click on the BUY or RFQ button to purchase WFMA2010R0200FEA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part WFMA2010R0200FEA?
You can download the WFMA2010R0200FEA datasheet or visit the Vishay website for support.
Who is the manufacturer of WFMA2010R0200FEA?
Vishay
