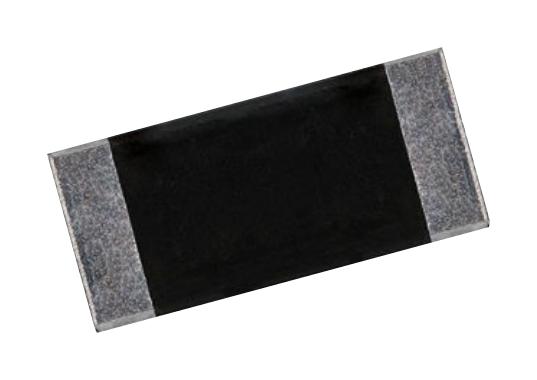

Vishay WFMB2010R2000FEA Current Sense Resistor
Vishay Power Metal Plate Current Sense Resistors are high-power, surface-mount components designed for precise current measurement in switching, linear power supplies, amplifiers, and battery management. Available in 2010 and 2512 sizes, these resistors feature low resistance values (5 mΩ to 500 mΩ), low TCR (< 20 ppm/°C), and excellent frequency response up to 50 MHz. They are RoHS compliant, halogen-free, and built with solid metal alloys for durability and reliable performance in demanding electronic applications.
Vishay WFMB2010R2000FEA Current Sense Resistor Specifications:
- Size: 2010 and 2512 package
- Power Rating: 2.0 W at 110°C (2010), 3.0 W at 95°C (2512)
- Resistance Range: 0.005 to 0.5 Ω
- Resistance Tolerance: ±1 %
- Temperature Coefficient: < 20 ppm/°C (element only)
- Operating Temperature: -65°C to +170°C
- Max Working Voltage: Based on resistance and power dissipation
- Terminal Temperature: 110°C (2010), 95°C (2512)
- Dimensions: 0.200 x 0.100 inches (2010), 0.250 x 0.125 inches (2512)
- Low inductance: 0.5 nH to 5 nH
- Frequency Response: Up to 50 MHz
- Material: Solid metal manganese-copper, nickel-chromium-aluminum alloy
- RoHS Compliant, Halogen-Free
- Certified: AEC-Q200 qualified
Buy the Vishay Series Power Metal Plate Current Sense Resistors: WFMB2010R2000FEA
Purchase Vishay WFMB2010R2000FEA current sense resistor online today and enjoy high power handling, low resistance, excellent frequency response, and robust construction. Perfect for precise current measurement in power supplies, amplifiers, and battery management systems, these resistors deliver consistent performance in demanding environments. With RoHS compliance and high thermal stability, they ensure long-term reliability. Order now to enhance your electronic designs with Vishay's proven quality and innovative technology.
Buy Vishay WFMB2010R2000FEA now and experience unmatched reliability and performance in precision current sensing applications.
Frequently Asked Questions
Where can I buy Vishay WFMB2010R2000FEA?
You can click on the BUY or RFQ button to purchase WFMB2010R2000FEA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part WFMB2010R2000FEA?
You can download the WFMB2010R2000FEA datasheet or visit the Vishay website for support.
Who is the manufacturer of WFMB2010R2000FEA?
Vishay
