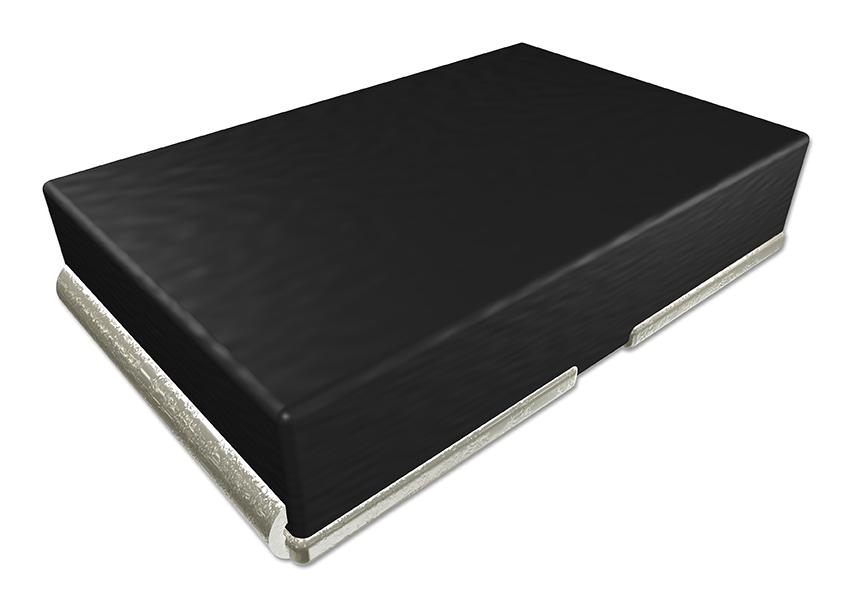

Vishay WSHM2818R0200FEB High Power Resistor
The WSHM2818 resistance is a high-power surface mount resistor rated at 7 W, ideal for current sensing, voltage division, and pulse applications. Incorporating advanced thermal management, it features welded construction, very low inductance (< 5 nH), and low TCR (< 20 ppm/°C). Designed for precise low resistance values, it operates within -65°C to +170°C, with a maximum surface temperature of 180°C. The resistor's compact size and excellent frequency response up to 50 MHz make it suitable for demanding industrial and automotive environments.
Vishay WSHM2818R0200FEB High Power Resistor Specifications:
- Power Rating: 7 W
- Resistance Range: 0.001 to 0.1 ohms
- Resistance Tolerance: ±0.5%, ±1.0%
- Resistance Value Examples: 0.004, 0.012, 0.0200 ohms
- Temperature Coefficient: < 20 ppm/°C
- Inductance: < 5 nH
- Operating Temperature Range: -65°C to +170°C
- Maximum Surface Temperature: 180°C
- Size: 0.280 inch length (7 mm), 0.180 inch width (4.62 mm)
- Weight: 167.8 grams per 100 pieces
- Compliance: RoHS, AEC-Q200 qualified
- Packaging: 3500 pieces per reel, tape width 16 mm, diameter 330 mm
- Solder Profile Recommendations: available at Vishay resources
Buy the Buy Vishay WSHM2818 Resistance Part Number WSHM2818R0200FEB Online
Purchase the Vishay WSHM2818 high power resistor online today to benefit from its robust design, low temperature coefficient, excellent frequency response, and compact surface mount construction. Perfect for current sensing and voltage division tasks, it delivers 7 W power handling with resistance values from 0.001 to 0.1 ohms. With its low inductance and precise TCR, this resistor guarantees high reliability and stability across a wide temperature range. Easy to order, ideal for high-demand industrial and automotive environments.
Buy Vishay WSHM2818 resistance now and ensure reliable high-power performance in your industrial or automotive applications.
Frequently Asked Questions
Where can I buy Vishay WSHM2818R0200FEB?
You can click on the BUY or RFQ button to purchase WSHM2818R0200FEB from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part WSHM2818R0200FEB?
You can download the WSHM2818R0200FEB datasheet or visit the Vishay website for support.
Who is the manufacturer of WSHM2818R0200FEB?
Vishay
