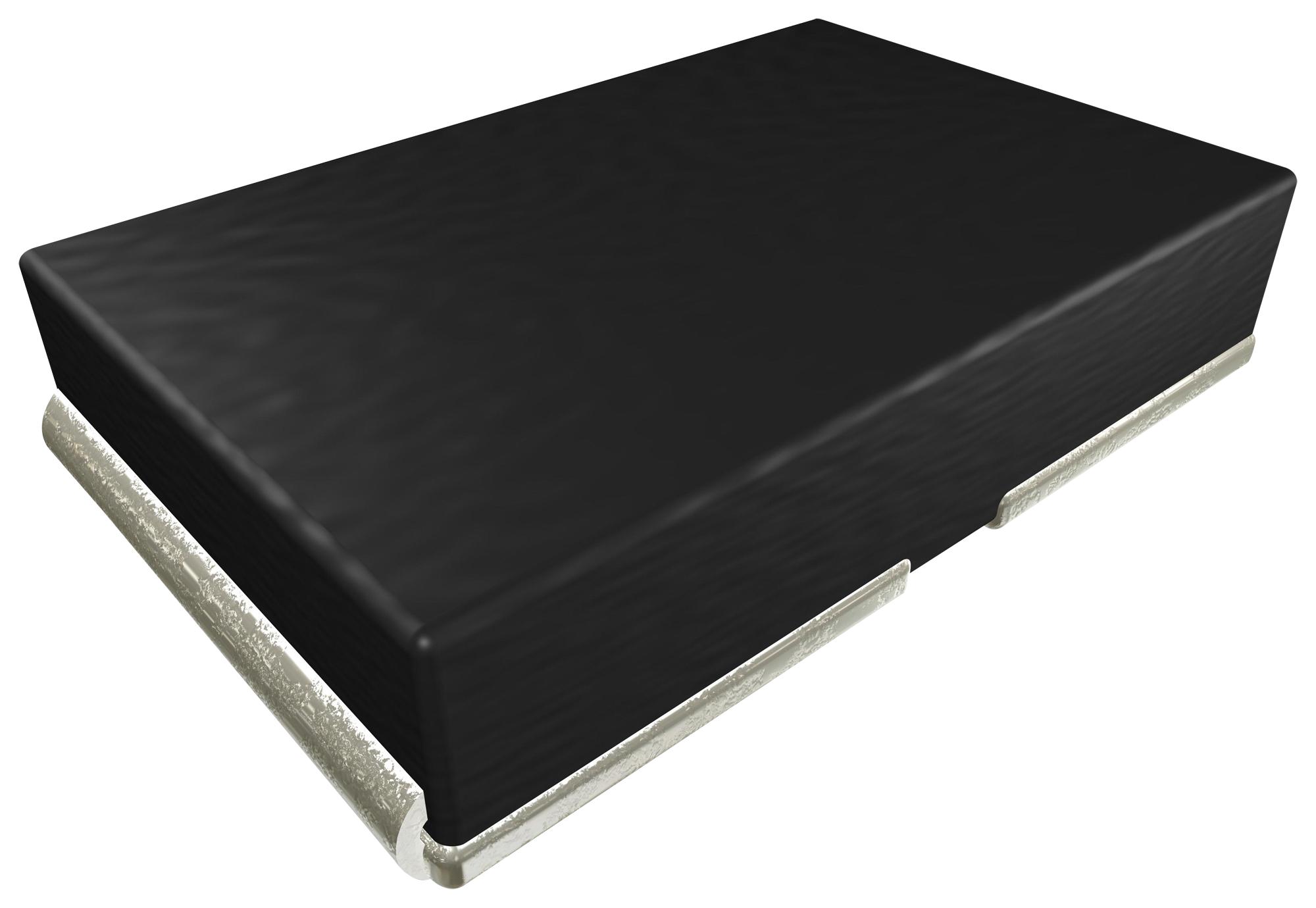

Vishay WSHP2818R0500FEA Power Metal Strip Resistor
The Power Metal Strip resistors are high power surface-mount components rated at 10 W, ideal for current sensing, voltage division, and pulse applications. Featuring improved thermal management, all-welded construction, and low resistance values down to 0.001 Ω, these resistors are halogen-free, compliant with RoHS, and sulfur resistant. They have very low inductance (< 5 nH), low thermal EMF (< 3 µV/°C), operate from -65°C to +170°C, and include features suitable for automotive and industrial environments, with a maximum surface temperature of 200°C.
Vishay WSHP2818R0500FEA Power Metal Strip Resistor Specifications:
- Power Rating: 10 W
- Resistance Range: 0.001 to 0.1 Ω
- Resistance Tolerance: ±5 %, ±1.0 %
- Component Temperature Coefficient: ±200 ppm/°C (6 mΩ to 100 mΩ)
- Inductance: < 5 nH
- Operating Temperature Range: -65°C to +170°C
- Maximum Working Voltage: V x R
- Surface Temperature Limit: 200°C
- Material: Solid metal nickel-chrome alloy
- RoHS Compliant, Halogen-Free, Sulfur Resistant
- Size: 2.8 mm x 1.8 mm
- Solder Pad Dimensions: 0.138 in x 0.210 in
- Packaging: Embossed tape, 3500 pieces per reel
- Vibration, thermal shock, humidity, overload, and solder heat resistance tested
- Suitable for automotive, industrial, and electronic sensing applications
Buy the Vishay Series Power Metal Strip High Power Resistor: WSHP2818R0500FEA
Order the Vishay Power Metal Strip high power resistor WSHP2818R0500FEA online today to ensure your electronic project benefits from reliable high power performance. These surface-mount resistors deliver 10 W power rating with low resistance values down to 0.001 Ω, suitable for current sensing, voltage division, and pulse applications. Featuring excellent thermal management, low inductance, and sulfur resistance, they are ideal for automotive and industrial environments, ensuring longevity and stability in challenging conditions. Purchase now and enhance your design with trusted Vishay quality.
Buy Vishay Power Metal Strip high power resistor WSHP2818R0500FEA now and experience unmatched reliability and performance in demanding electronic applications.
Frequently Asked Questions
Where can I buy Vishay WSHP2818R0500FEA?
You can click on the BUY or RFQ button to purchase WSHP2818R0500FEA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part WSHP2818R0500FEA?
You can download the WSHP2818R0500FEA datasheet or visit the Vishay website for support.
Who is the manufacturer of WSHP2818R0500FEA?
Vishay
