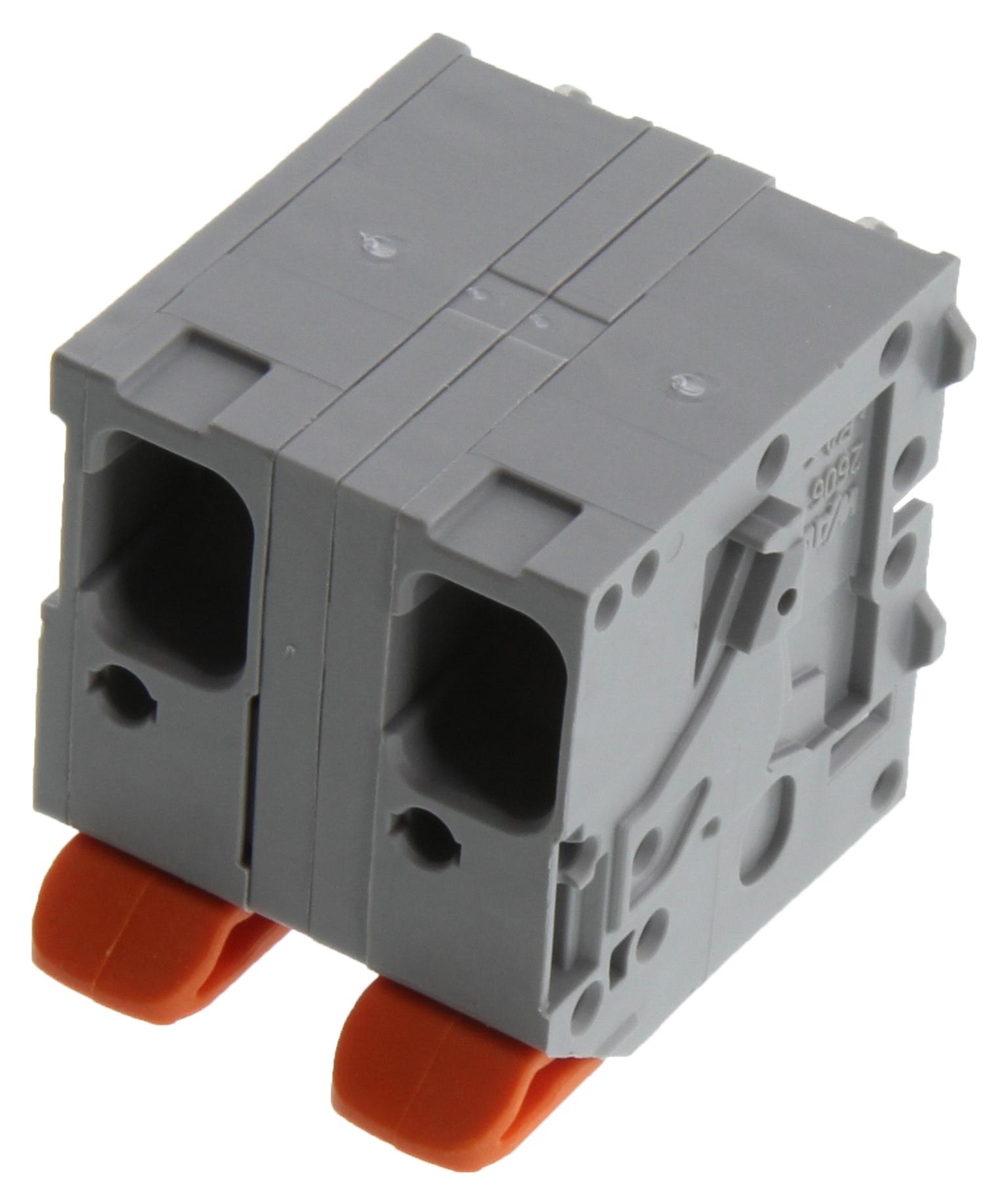

WAGO 26063352 PCB Terminal Block
This two-pole PCB terminal block features lever actuation and Push-in CAGE CLAMP® connection technology, enabling tool-free, intuitive termination of solid and ferruled conductors. It supports multi-core cable terminations with multiple clamping units operable simultaneously. The device allows testing both parallel and perpendicular to conductor entry, enhancing flexibility. Constructed from grey polyamide (PA66) with UL94 V0 flammability class, it meets IEC, UL, CSA, and European standards, and is suitable for applications requiring reliable electrical connections in industrial control and automation systems.
WAGO 26063352 PCB Terminal Block Specifications:
- Number of poles: 2
- Pin spacing: 12.5 mm / 0.492 inch
- Width: 21.5 mm / 0.846 inch
- Height: 31 mm / 1.22 inch
- Depth: 24 mm / 0.945 inch
- Solder pin length: 4 mm
- Solder pin dimensions: 1.5 x 1.2 mm
- Materials: Polyamide 66 (PA66), chrome nickel spring steel, electrolytic copper
- Flammability class: UL94 V0
- Rated voltage: 600 V (UL), 800 V (IEC)
- Rated current: 42 A
- Operation temperature: -60°C to +105°C
- Conductor cross-section: 0.2…10 mm² / 24…8 AWG
- Connection method: Push-in CAGE CLAMP® with lever actuation
- Testing: Parallel and perpendicular testing possibilities
Buy the WAGO Series 2606-3352 PCB Terminal Block: 12.5 mm Pin Spacing, 2-Pole
Enhance your electrical connections with the WAGO 2606-3352 PCB terminal block, featuring lever actuation and Push-in CAGE CLAMP® for quick, tool-free wiring. Its design supports multi-core cables and allows testing both parallel and perpendicular to conductor entry. Made from durable, UL94 V0 polyamide, it meets international standards for safety and reliability. Ideal for industrial automation and control systems, this two-pole terminal block provides secure, maintenance-free connections with easy installation and testing options, ensuring efficient wiring in demanding environments.
Buy WAGO 2606-3352 terminal block now and enjoy reliable connections with push-in technology, multi-core support, and easy tool-free installation.
Frequently Asked Questions
Where can I buy WAGO 26063352?
You can click on the BUY or RFQ button to purchase 26063352 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 26063352?
You can download the 26063352 datasheet or visit the WAGO website for support.
Who is the manufacturer of 26063352?
WAGO
