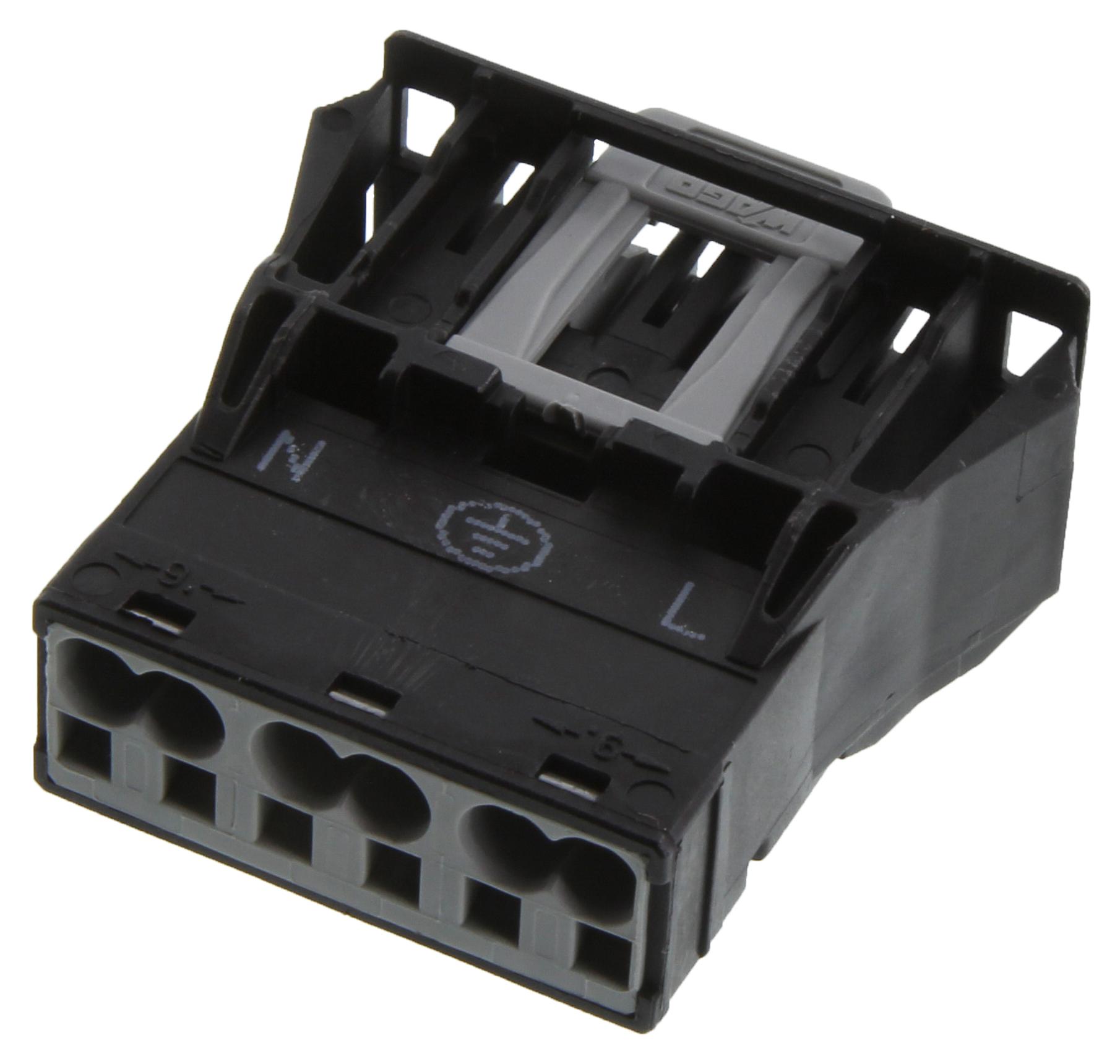

WAGO 770713 Electrical Connector
The three-pole snap-in plug features robust push-in CAGE CLAMP® technology, ensuring maintenance-free, secure connections suitable for various electrical applications. It is protected against mismating, with a vacuum-formed locking system and a versatile design that supports loop or bridge connections. With a rated current of 25A and nominal voltage of 250V, it is ideal for safe, reliable use in control and automation systems. Constructed from durable materials, it supports repeated mating cycles and is RoHS compliant, with dimensions optimized for easy installation in electrical assemblies. Suitable for 0.5–4mm2 conductors, it guarantees a secure fit with a locking lever, and its compliance with industry standards ensures safety and performance in demanding environments.
WAGO 770713 Electrical Connector Specifications:
- Rated current: 25A
- Rated voltage: 250V
- UL Rated voltage: 600V
- Contact resistance: approx. 1 mΩ (contact transition), approx. 0.25 mΩ (plug/socket)
- Poles: 3
- Pole spacing: 10mm
- Housing width: 35.5mm
- Housing height: 17.5mm
- Housing depth: 36mm
- Material: Polyamide 66 (PA 66)
- Color: Black
- Insulation material: Polyamide 66
- Clamping spring material: Chrome nickel spring steel
- Temperature range: -35°C to +85°C
- Minimum strip length: 9mm
- Number of mating cycles: 200 (no resistive load), 100 (resistive load 25A)
- Mounting: Snap-in
- Protection class: IP20 (when mated)
- Conductor range: Solid 0.5–4mm², stranded 0.5–2.5mm², with ferrules 0.25–4mm²
- Certification: UL, IEC 61892, EN 61535
Buy the Buy WAGO Snap-in Plug Part Number 770-713 Online
Purchase the WAGO electrical connector online today to ensure fast delivery and reliable performance. Designed with advanced push-in technology, it offers maintenance-free operation and high resistance to mismating. Suitable for control and automation systems, it supports multiple conductors, rated for 25A and 250V. Easy to install with snap-in mounting, it provides a secure connection with a locking lever and supports numerous mating cycles for repeated use. Order now and benefit from industry-standard safety, durability, and efficient installation for your electrical projects.
Buy WAGO 770-713 snap-in plug now and experience secure, maintenance-free electrical connections perfect for automation and industrial control systems.
Frequently Asked Questions
Where can I buy WAGO 770713?
You can click on the BUY or RFQ button to purchase 770713 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 770713?
You can download the 770713 datasheet or visit the WAGO website for support.
Who is the manufacturer of 770713?
WAGO
