WALSIN WF04P1001FTL High Power Chip Resistor
The WF04P series consists of high-power, surface-mount chip resistors with a size of 0402 (1005), constructed on a ceramic alumina substrate. These resistors feature laser-trimmed resistance values within standard IEC series, offering resistance ranges from 1Ω to 1MΩ with ±1% or ±5% tolerance. Designed for reliable performance in consumer electronics, automotive, computing, and telecom applications, they are capable of withstanding soldering temperatures up to 260°C. Their compact rectangular shape ensures easy automation handling and durable solder joints, making them ideal for modern electronic assemblies.
WALSIN WF04P1001FTL High Power Chip Resistor Specifications:
- Series No: WFO4P
- Size: 0402 (1005)
- Resistance Range: 1Ω to 1MΩ
- Resistance Tolerance: ±1% (E96 series), ±5% (E24 series)
- Temperature Coefficient: ±200 ppm/°C for 1MΩ, ±100 ppm/°C for below 1MΩ
- Maximum Dissipation: 1/8 W at 70°C
- Maximum Operation Voltage: 50V DC or RMS
- Maximum Overload Voltage: 100V DC or RMS
- Climatic Category: 55/155/56
- Dimensions: Length 1.00±0.05 mm, Width 0.50±0.05 mm, Thickness 0.35±0.05 mm
- Packaging: 8mm tape reel (10,000 pcs), or bulk packing
- Operating Temp Range: -55°C to +125°C
- Soldering: Immersion in 260°C for 10 seconds acceptable
- Construction: Aluminum oxide ceramic substrate with metal electrodes, laser-trimmed resistive layer, tin (Pb-free) end terminations

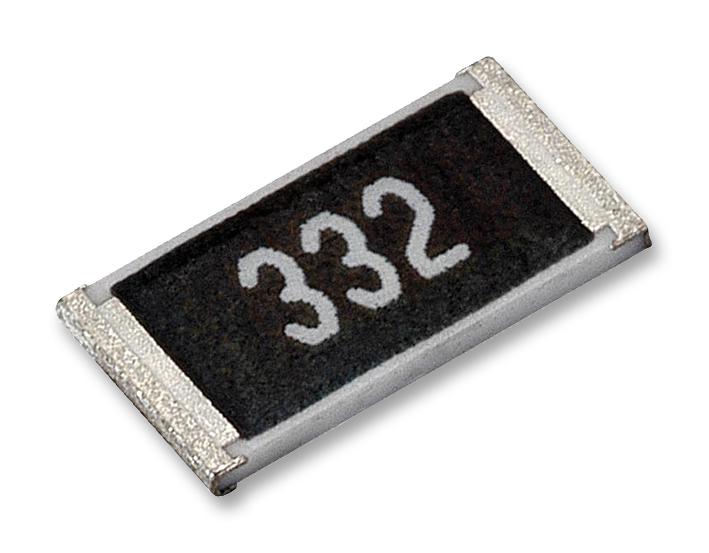

Buy the Walsin Tech WF04P – Reliable High Power Chip Resistors for Industrial Applications
Enhance your electronic designs with the high power surface-mount resistors from Walsin Tech. Featuring precise resistance values within IEC standard series, these 0402 resistors deliver reliable performance and excellent stability. Suitable for consumer, automotive, computing, and telecom applications, they support automated mounting and handle high soldering temperatures without damage. Their compact size, robust construction, and tight tolerances ensure long-term reliability, reducing assembly costs and improving product durability. Buy online today to secure top-tier quality components for your manufacturing needs.
Order your Walsin Tech SeriesWF04P high power chip resistor today and ensure your electronic projects benefit from dependable, compact, and high-stability components.
Frequently Asked Questions
Where can I buy WALSIN WF04P1001FTL?
You can click on the BUY or RFQ button to purchase WF04P1001FTL from an authorized WALSIN distributor.
How do I troubleshoot issues or seek technical support for part WF04P1001FTL?
You can download the WF04P1001FTL datasheet or visit the WALSIN website for support.
Who is the manufacturer of WF04P1001FTL?
WALSIN
