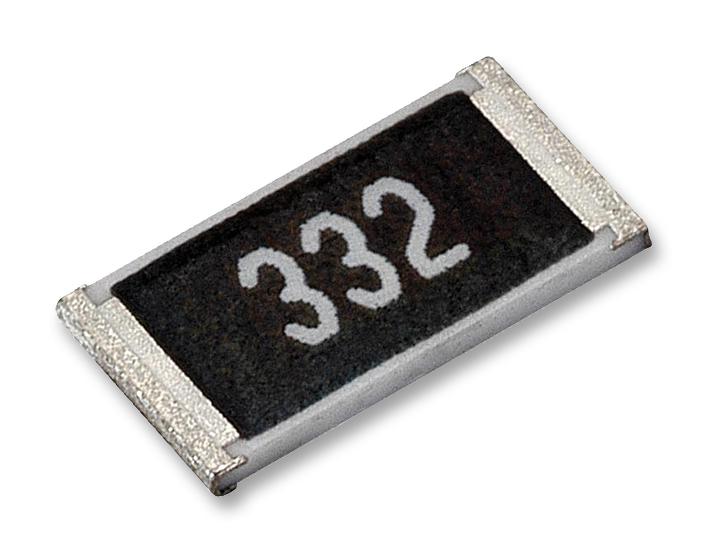

WALSIN WF08U6041BTL High Precision Chip Resistor
High precision surface-mount thin film chip resistor with low TCR of 25 ppm/K and resistance tolerance options down to 0.05%. Constructed on an alumina ceramic substrate with laser-trimmed resistive layer for stability. Suitable for medical equipment, measuring instruments, communication devices, computers, and printers. Features environmentally friendly lead-free solder terminations, robust construction for high reliability, and compatibility with automatic placement systems. Delivering excellent electrical stability, low noise, and effective in demanding electronic applications, this resistor series ensures precise resistance values and dependable performance in various environmental conditions.
WALSIN WF08U6041BTL High Precision Chip Resistor Specifications:
- Size: 1206 (WFO12U), 0805 (WFO8U), 0603 (WFO6U), 0402 (WF04U)
- Resistance Range: 4.72Ω to 1MΩ (E24+E192 series), 4.72Ω to 680KΩ (WFO6U), 102Ω to 100KΩ (WF04U)
- Resistance Tolerance: +1%, +0.5%, +0.25%, +0.1%, +0.05%
- Temperature Coefficient: ±25 ppm/°C
- Max Dissipation at 70°C: 1/8W (WFO12U), 1/10W (WFO8U), 1/16W (WFO6U & WF04U)
- Maximum Operating Voltage (DC or RMS): 200V (WFO12U), 100V (WFO8U), 50V (WFO6U), 25V (WF04U)
- Overload Voltage: 400V (WFO12U), 200V (WFO8U), 100V (WFO6U), 50V (WF04U)
- Operating Temperature: -55°C to +155°C
- Dimensions: WFO12U (L: 3.10mm, W: 1.60mm, A: 0.45mm, B: 0.45mm, t: 0.60mm), WFO8U (L: 2.00mm, W: 1.25mm, A: 0.25mm, B: 0.40mm, t: 0.50mm), WFO6U (L: 1.55mm, W: 0.80mm, A: 0.25mm, B: 0.30mm, t: 0.45mm), WF04U (L: 1.00mm, W: 0.50mm, A: 0.20mm, B: 0.25mm, t: 0.35mm)
Buy the Walsin Series WF08U High Precision Chip Resistor: WF08U6041BTL
Order the Walsin WF08U6041BTL high precision surface-mount chip resistor online today. Designed for stability, low noise, and excellent electrical performance, it offers resistance tolerance options down to 0.05% and a TCR of just 25 ppm/K. Suitable for medical, measurement, communication, and computing applications, this resistor series features environmentally friendly lead-free solder terminations and robust construction for high reliability. Ensure your electronic projects meet demanding quality standards with this top-tier component, available now for fast, secure online purchase.
Get Walsin WF08U6041BTL today—built for precision and long-lasting durability in demanding electronic applications.
Frequently Asked Questions
Where can I buy WALSIN WF08U6041BTL?
You can click on the BUY or RFQ button to purchase WF08U6041BTL from an authorized WALSIN distributor.
How do I troubleshoot issues or seek technical support for part WF08U6041BTL?
You can download the WF08U6041BTL datasheet or visit the WALSIN website for support.
Who is the manufacturer of WF08U6041BTL?
WALSIN
