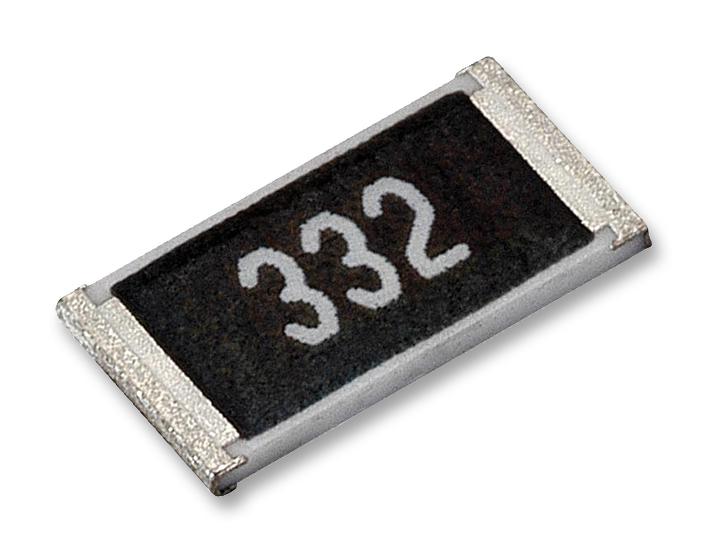

WALSIN WF12P1R00FTL High Power Surface Mount Resistor
The WF12P resistor series features high power ratings up to 1/2W and a compact 1206 size, constructed with a ceramic alumina substrate and laser-trimmed resistive layer. These surface-mount resistors are RoHS compliant, lead-free, and flame retardant, making them ideal for power supply, digital meters, automotive applications, and DC-DC converters. With resistance values from 0.12Ω to 1MΩ, they offer high reliability, stability, and excellent thermal performance, suitable for automated assembly and rigorous environmental conditions.
WALSIN WF12P1R00FTL High Power Surface Mount Resistor Specifications:
- Size: 1206 (3216)
- Resistance Range: 0.12Ω to 1MΩ
- Resistance Tolerance: +1%, +5%
- Resistance Temp. Coefficient: +100 ppm/°C
- Max. Dissipation at 70°C: 1/2W
- Max. Operation Voltage: 200V
- Max. Overload Voltage: 400V
- Operating Temperature: -55°C to +155°C
- Mechanical Dimensions: Length approximately 3.1mm, width approximately 1.6mm, height approximately 0.55mm
- Construction: Alumina ceramic substrate with laser-trimmed resistive layer
- Packaging: 8mm tape, 5000 pcs per reel
- Compliance: RoHS, Lead-free, Flame retardant
Buy the Walsin Resistor 1206 Series WF12P – Reliable Power Resistor for Industrial Applications
Discover the high reliability and compact design of the Walsin WF12P surface mount resistors. These 1206 size resistors feature resistance values from 0.12Ω to 1MΩ, perfect for power supply, automotive electronics, and digital meters. Built with a ceramic alumina substrate and laser-trimmed resistive layer, they guarantee stability, RoHS compliance, and lead-free construction. Their high thermal performance, mechanical robustness, and reliable solderability make them ideal for automated assembly and rugged environments. Buy online today for trusted performance in your electronic designs.
Order your Walsin Series WF12P high power surface-mount resistor today and enhance your electronic projects with dependable quality and excellent thermal stability.
Frequently Asked Questions
Where can I buy WALSIN WF12P1R00FTL?
You can click on the BUY or RFQ button to purchase WF12P1R00FTL from an authorized WALSIN distributor.
How do I troubleshoot issues or seek technical support for part WF12P1R00FTL?
You can download the WF12P1R00FTL datasheet or visit the WALSIN website for support.
Who is the manufacturer of WF12P1R00FTL?
WALSIN
