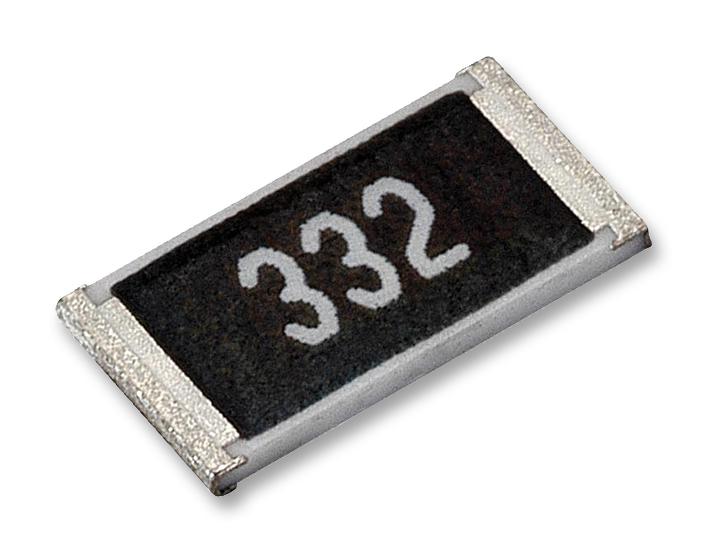

WALSIN WR02X1803FAL Surface Mount Resistor
The WR02X1803FAL is a high-reliability, surface-mount thick film chip resistor designed for high-density circuit board assembly. Made of high-grade ceramic with laser-trimmed resistive layer, it offers resistance values from 1 ohm to 10 megaohms with ±5% or ±1% tolerance. Suitable for mobile phones, PDAs, and hybrid modules, it features small size, light weight, and excellent stability. The resistor can withstand soldering at 260°C for 10 seconds, and operates within -55°C to +125°C, ensuring robustness in various electronic applications.
WALSIN WR02X1803FAL Surface Mount Resistor Specifications:
- Series No.: WRO02X(W)
- Size: 0201 (0603)
- Resistance Range: 1Ω to 10MΩ (+5% & +1% tolerance)
- Resistance Tolerance: ±5%, ±1%
- Resistance Series: E24/E96
- Temperature Coefficient of Resistance: 102 ppm/°C, 200 or ±200 ppm/°C depending on value
- Max Dissipation: 1/20 W at Tamb=70°C
- Max Operation Voltage: 25V
- Max Overload Voltage: 50V
- Operation Temperature: -55°C to +125°C
- Construction: Ceramic substrate with laser-trimmed resistive layer, tin-plated end terminations
- Physical Dimensions: Length 0.60 ±0.03 mm, Width 0.30 ±0.03 mm, Height 0.23 ±0.03 mm, Thickness 0.15 ±0.05 mm
- Soldering: Immersible in solder bath at 260°C for 10 seconds; tested at 235°C for 2 seconds
- Reel options: 7-inch, 10-inch, 13-inch with quantities up to 70,000 pcs
Buy the Walsin Series WRO02X Surface Mount Resistor: WR02X1803FAL
Order the Walsin Series WRO02X surface mount resistor today and experience reliable performance in compact electronic devices. Designed for high-density PCB assembly, this resistor offers resistance values from 1Ω to 10MΩ with tight tolerance and excellent stability. It supports high-temperature soldering and operates across a wide temperature range, making it ideal for mobile phones, PDAs, and other portable electronics. Choose quick, trusted online purchasing for consistent quality and fast delivery to enhance your electronic projects.
Get Walsin Series WRO02X resistor today—built for precision, stability, and long-lasting durability in high-density electronic circuits.
Frequently Asked Questions
Where can I buy WALSIN WR02X1803FAL?
You can click on the BUY or RFQ button to purchase WR02X1803FAL from an authorized WALSIN distributor.
How do I troubleshoot issues or seek technical support for part WR02X1803FAL?
You can download the WR02X1803FAL datasheet or visit the WALSIN website for support.
Who is the manufacturer of WR02X1803FAL?
WALSIN
