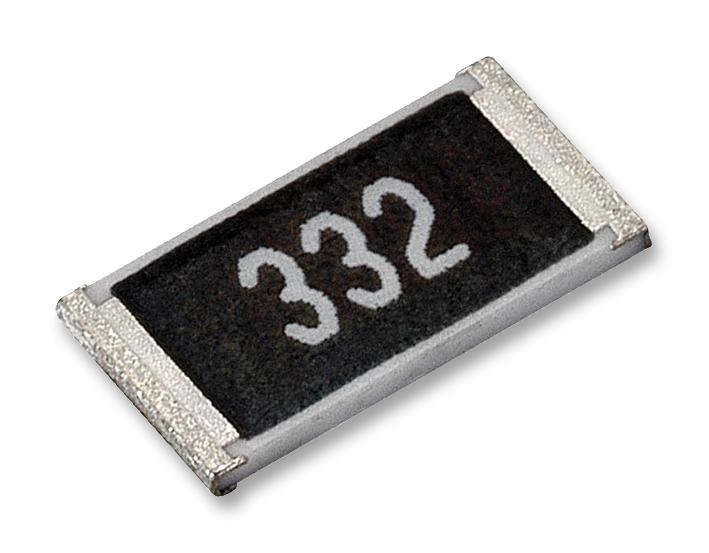

WALSIN WR04X1241FTL Surface Mount Resistor
High reliability and stability thick film chip resistors designed for consumer electrical, telecommunications, and computer applications. Constructed with a high-grade ceramic body, these surface-mount resistors are laser trimmed for precise resistance values within ±1% or ±5% tolerance. They feature RoHS compliance and lead-free tin alloy end terminations for easy soldering. Available in sizes 1206, 0805, 0603, and 0402, with resistance ranges from 1Ω to 10MΩ. Suitable for automated assembly, these resistors withstand soldering at 260°C, environmental testing, and thermal cycling, ensuring long-term durability and performance.
WALSIN WR04X1241FTL Surface Mount Resistor Specifications:
- Size: 1206 (3216), 0805 (2012), 0603 (1608), 0402 (1005)
- Resistance Range: 1Ω to 10MΩ (±5%) or (±1%) for some series
- Resistance Tolerance: ±1%, ±5%
- TCR (ppm/°C): <+100 for high resistance; -200~+400 for low resistance
- Max. Dissipation at 70°C: 1/4W, 1/8W, 1/16W depending on size
- Operating Voltage: 200V (1206), 150V (0805), 75V (0603), 50V (0402)
- Max. Overload Voltage: 400V, 300V, 150V, 100V respectively
- Climatic Category: 55/155/56
- Temperature Range: -55°C to +155°C
- Soldering Conditions: Immersible at 260°C for 10 seconds, tested for reliable joints
- Marking: 3- or 4-digit coding depending on size and tolerance
- Packaging: Reel and bulk options for automated placement
- Compliance: RoHS, Lead-Free, IEC and EIA standards
Buy the Walsin Thick Film Resistors — Reliable Chip Resistors for Industrial Applications
Purchase Walsin Series WR04 surface mount resistors online now and benefit from their high reliability, precise resistance values, and RoHS compliance. These resistors are ideal for consumer electronics, telecommunications, and computer systems, offering excellent thermal stability and environmental durability. Designed for automated assembly, they withstand high-temperature soldering and rigorous testing standards, ensuring long-term performance in demanding industrial environments. Elevate your projects with our quick, secure online ordering—delivering quality electronics solutions straight to your door.
Order your Walsin Series WR04 resistors today and ensure high stability and durability in your electronic designs with our precision surface-mount solutions.
Frequently Asked Questions
Where can I buy WALSIN WR04X1241FTL?
You can click on the BUY or RFQ button to purchase WR04X1241FTL from an authorized WALSIN distributor.
How do I troubleshoot issues or seek technical support for part WR04X1241FTL?
You can download the WR04X1241FTL datasheet or visit the WALSIN website for support.
Who is the manufacturer of WR04X1241FTL?
WALSIN
