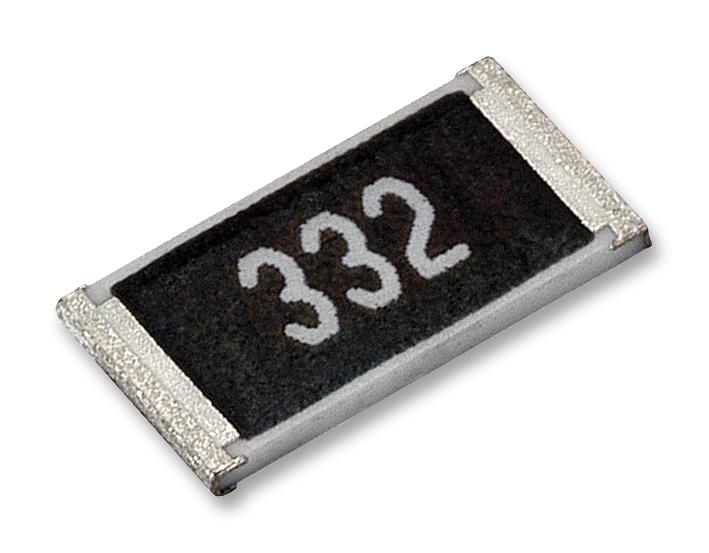

WALSIN WR04X7500FTL Surface Mount Chip Resistor
High reliability surface mount thick film chip resistors designed for consumer electronics, computers, and telecom applications. Constructed with a ceramic body and laser-trimmed resistive layer, these resistors feature RoHS compliance, lead-free alloy terminations, and precise resistance values from the E24 and E96 series. They offer stable performance across a wide temperature range, with detailed specifications including resistance range, tolerance, TCR, maximum power dissipation, and soldering conditions. Suitable for automated assembly, these resistors provide excellent durability and reliability for modern electronic equipment.
WALSIN WR04X7500FTL Surface Mount Chip Resistor Specifications:
- Size codes: 1206 (3216), 0805 (2012), 0603 (1608), 0402 (1005)
- Resistance Range: 1Ω to 10MΩ with tolerance ±1% or ±5%
- Resistance Tolerance: ±1% (E96 series), ±5% (E24 series)
- Temperature Coefficient of Resistance: ±100 ppm/°C for 10MΩ, -200 to +400 ppm/°C for below 10Ω
- Max. dissipation at 70°C: 1/4W (1206), 1/8W (0805), 1/16W (0402)
- Max. operation voltage: 200V (1206), 150V (0805), 75V (0603), 50V (0402)
- Max. overload voltage: 400V (1206), 300V (0805), 150V (0603), 100V (0402)
- Climatic category: 55/155/56
- Physical dimensions: Length approximately 3.10mm (1206), 2.00mm (0805), 1.60mm (0603), 1.00mm (0402); width, height, and termination sizes subject to specific model
- Soldering conditions: immersion in 260°C for 10s, solderability testing at 235°C for 2s, suitable for automatic placement
Buy the Buy Walsin Technology Chip Resistor Part Number WR04X7500FTL Online
Purchase the Walsin Technology WR04X7500FTL chip resistor online now to ensure high reliability and stability for your electronic applications. Designed for consumer, telecom, and computer equipment, this resistor provides accurate resistance values from the E24/E96 series, RoHS compliance, and lead-free construction. Its robust ceramic body and laser-trimmed resistive layer guarantee precision, durability, and excellent performance across broad temperature ranges. Ideal for automated assembly, order now to enhance your manufacturing process with these dependable components that meet global standards for quality and performance.
Get Walsin Technology WR04X7500FTL today—built for precision and long-lasting durability in electronic circuits.
Frequently Asked Questions
Where can I buy WALSIN WR04X7500FTL?
You can click on the BUY or RFQ button to purchase WR04X7500FTL from an authorized WALSIN distributor.
How do I troubleshoot issues or seek technical support for part WR04X7500FTL?
You can download the WR04X7500FTL datasheet or visit the WALSIN website for support.
Who is the manufacturer of WR04X7500FTL?
WALSIN
