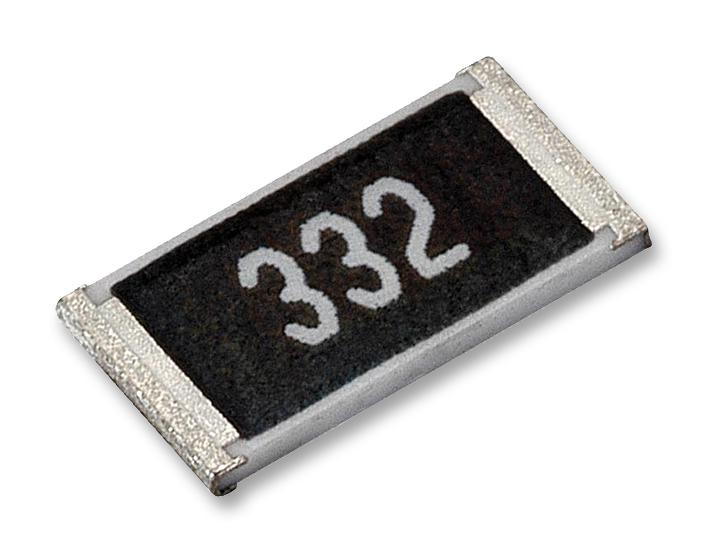

WALSIN WR12W1005FTL Thick Film Chip Resistor
High reliability surface-mount thick film chip resistors designed for consumer electronics, telecom, and computer applications. Constructed with a ceramic alumina body and laser-trimmed resistive layer, these resistors offer precise resistance values, RoHS compliance, and lead-free termination for durable and stable performance. Available in various sizes including 1206, 0805, 0603, and 0402, they provide excellent stability, low power dissipation, and resistance to environmental stresses. Widely used in modern electronic manufacturing for their compact size and reliability.
WALSIN WR12W1005FTL Thick Film Chip Resistor Specifications:
- Series: WR12, WRO8, WRO6, WRO4
- Size code: 1206(3216), 0805(2012), 0603(1608), 0402(1005)
- Resistance Range: 1Ω to 10MΩ
- Resistance Tolerance: ±1%, ±5%
- Resistance Series: E24 (±5%), E96 (±1%)
- Temperature Coefficient of Resistance: ±100 ppm/°C for 10MΩ, -200~+400 ppm/°C for R<10Ω
- Max. Dissipation: 1/4W (WR12), 1/8W (WRO8), 1/16W (WRO4)
- Max. Operation Voltage: 200V (WR12), 150V (WRO8), 75V (WRO6), 50V (WRO4)
- Max Overload Voltage: 400V (WR12), 300V (WRO8), 150V (WRO6), 100V (WRO4)
- Climatic category: 55/155/56
- Physical dimensions vary by size, e.g., Length approximately 3.10mm (WR12), 2.00mm (WRO8), 1.60mm (WRO6), 1.00mm (WRO4)
Buy the Buy Walsin Thick Film Chip Resistors Part Number WR12W1005FTL Online
Purchase the Walsin WR12W1005FTL thick film chip resistor online now to ensure high reliability, precision performance, and RoHS compliance. These surface-mount resistors are ideal for consumer electronics, telecom, and computer applications. They feature a ceramic alumina body with laser-trimmed resistive layers for accurate resistance values, marked with 3-digits or 4-digits codes depending on tolerance and size. Suitable for automatic placement and handling, they provide excellent environmental stability, low power dissipation, and resistance to mechanical stresses. Order today for fast delivery and maximum performance in your electronic projects.
Get Walsin WR12W1005FTL today—built for high precision and long-lasting durability in your electronic designs.
Frequently Asked Questions
Where can I buy WALSIN WR12W1005FTL?
You can click on the BUY or RFQ button to purchase WR12W1005FTL from an authorized WALSIN distributor.
How do I troubleshoot issues or seek technical support for part WR12W1005FTL?
You can download the WR12W1005FTL datasheet or visit the WALSIN website for support.
Who is the manufacturer of WR12W1005FTL?
WALSIN
