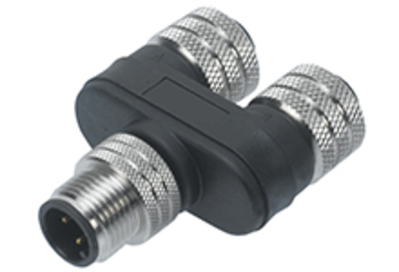

WOODHEAD / MOLEX 1200680228 Micro-Change M12 Splitter
The WOODHEAD / MOLEX 120068-0228 is a Micro-Change M12 in-line splitter designed for industrial applications requiring reliable power and signal distribution. This splitter features a solid body construction, 3 female connectors transitioning to 4 male connectors, and a 2.0-meter PVC cable. It is IP67 rated, ensuring protection against dust and moisture, and supports a maximum voltage of 24V DC with a current limit of 4A per contact. The splitter's robust construction and M12 connector design make it suitable for harsh environments commonly found in industrial automation, sensor networks, and process control systems.
WOODHEAD / MOLEX 1200680228 Micro-Change M12 Splitter Specifications:
- Part Number: 120068-0228
- Status: Active
- Overview: Brad® Micro-Change® (M12) Connectors
- Description: Micro-Change® (M12) In-Line Splitter, 4 Pole, 3-Female (Straight) to 4-Male (Straight), 18 AWG PVC Cable, 2.0m Length
- Product Family: Industrial Tees and Splitters
- Series: 120068
- IP Rating: IP67
- Product Name: Micro-Change® (M12)
- Type: Splitter - Solid Body
- UPC: 78678841954
- Color - Cable Jacket: Black
- Drop Connector: Micro-Change® (M12)
- Drop Gender: Male
- Keyway: Single
- LED Indicator: No
- Left Trunk Connector: Micro-Change® (M12)
- Left Trunk Gender: Female
- Leg 1 Length: N/A
- Leg 2 Length: N/A
- Length: N/A
- Material - Cable Jacket: N/A
- Material - Connector Body: TPE
- Material - Coupling Nut: Black Epoxy Coated Zinc
- Net Weight: 24.490/g
- Poles: 3 Female/4 Male
- Right Trunk Connector: Micro-Change® (M12)
- Right Trunk Gender: Female
- Temperature Range - Operating: -20°C to +105°C
- Current - Maximum per Contact: 4A
- Voltage - Maximum: 24V DC
- Old Part Number: 81589R
- Sales Drawing: SD-120068-035
