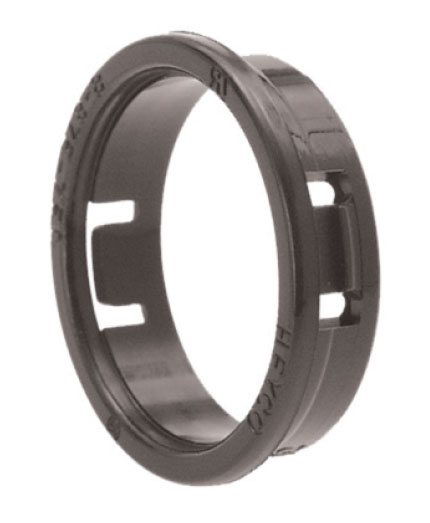

WOODHEAD / MOLEX 2848 Shorty Bushing Connector
Heyco Shorty Bushings provide a compact and efficient solution for insulating and isolating electric or telecommunications cables, as well as low-RPM shafts and push-pull rods. Their single locking step design simplifies installation on panels up to .062˝ thick, while the mounting hole diameter range from .187˝ to 1.093˝ accommodates various applications. Constructed from durable Nylon 6/6, these bushings are recognized under Underwriters’ Laboratories and certified by Canadian Standards Association, ensuring reliable performance within a temperature range of -18°C to 105°C. The locking fingers provide secure retention after fingertip pressure snap-in installation.
WOODHEAD / MOLEX 2848 Shorty Bushing Connector Specifications:
- Mounting Hole Diameter (in): 1.093
- Mounting Hole Diameter (mm): 27.8
- Description: B 1093-969
- A (in): .97
- A (mm): 24.6
- B (in): 1.16
- B (mm): 29.4
- C (in): .26
- C (mm): 6.5
- Material: Nylon 6/6
- Flammability Rating: 94V-2
- Temperature Range: -18°C to 105°C
Buy the 2848 WOODHEAD / MOLEX Shorty Bushing Connector | myMectronic
Securely purchase genuine Heyco 2848 Shorty Bushings for your industrial applications.
Buy Now
