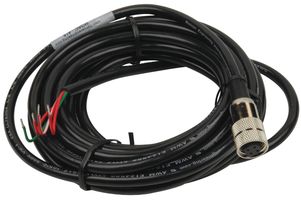

WOODHEAD / MOLEX 805000E03M005 M12 Female Straight Plug
The Woodhead/Molex 805000E03M005 is a robust M12 female straight connector engineered for reliable data and power transmission in industrial environments. This connector is designed to withstand harsh conditions and offers a variety of cable options (E02, E03, H08, H09, P02, P03) to meet diverse application requirements. It is RoHS compliant and features a secure connection for critical systems. Typical applications include industrial automation, sensors, and control systems where a compact and reliable connector is essential.
WOODHEAD / MOLEX 805000E03M005 M12 Female Straight Plug Specifications:
- Material: Bronze, Brass
- Finish: Selective Au over Ni
- Contact Type: M12 Female
- Protection Class: IP 67
- Rated Voltage: 250V (3, 4 contacts), 60V (5 contacts), 30V (8 contacts)
- Rated Current: 4A (3, 4, 5 contacts), 2A (8 contacts)
- Temperature Range: -25°C to +85°C
- Bending Radius (Static): 10xO.D.
- Bending Radius (Dynamic): 15xO.D.
- Cable Length Tolerance: Up to 305mm: +19mm, 305mm-915mm: +45mm, 915mm-1830mm: +56mm, 1830mm-3660mm: +89mm, 3660mm-7320mm: +165mm, 7320mm-14640mm: +317mm, 14640mm+: +2% of finished length
- Cable Jacket Options: ['PVC Black', 'PUR Black LS0H', 'PUR / PVC Black']
- Contact Positions: ['3', '4', '5', '8']
- Coupling Nut Options: ['Knurled Brass Ni Plated', 'Hexagonal Stainless Steel', 'Knurled Derlin', 'Knurled Brass Ni Plated, Teflon Coated', 'Knurled / Hexagonal Brass Ni Plated']
