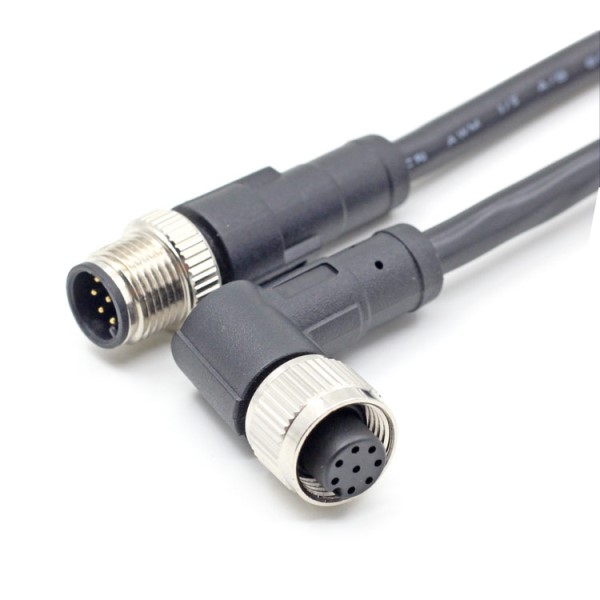

WOODHEAD / MOLEX 883031P03M030 M12 Angled to Straight Plug
The WOODHEAD / MOLEX 883031P03M030 is a versatile M12 connector designed for industrial automation, sensors, and control systems. Its angled-to-straight configuration simplifies wiring and space-constrained installations. Rated for 250V and 4A, this connector provides reliable power transmission while the IP67 rating ensures protection against dust and water ingress. The robust construction and wide operating temperature range (-25°C to +85°C) make it suitable for demanding environments. Available with various cable options and coding configurations to meet specific application requirements.
WOODHEAD / MOLEX 883031P03M030 M12 Angled to Straight Plug Specifications:
- Rated Voltage: 3, 4 contacts 250V per IEC 60664, 5 contacts 60V per IEC 60664, 5 contacts 250V per UL 2238, 8 contacts 30V per IEC 60664
- Rated Current: 3, 4, 5 contacts 4A, 8 contacts 2A
- Protection Class: IP 67
- Temperature: -25°C / +85°C
- Contact Position: Front View
- Cable Length Tolerance: Over 0mm up to 305mm +19mm, 305mm to 915mm +45mm, 915mm to 1830mm +56mm, 1830mm to 3660mm +89mm, 3660mm to 7320mm +165mm, 7320mm to 14640mm +317mm, 14640mm to 30500mm +610mm
- Cable Types: ['I03', 'I20', 'I26', 'K03', 'K05', 'P82', 'S20', 'E02', 'E03', 'H09', 'P03', 'H08']
Buy the 883031P03M030 WOODHEAD / MOLEX M12 Angled to Straight Plug | myMectronic
Purchase the WOODHEAD / MOLEX 883031P03M030 M12 connector securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy WOODHEAD / MOLEX 883031P03M030?
You can click on the BUY or RFQ button to purchase 883031P03M030 from an authorized WOODHEAD / MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 883031P03M030?
You can download the 883031P03M030 datasheet or visit the WOODHEAD / MOLEX website for support.
Who is the manufacturer of 883031P03M030?
WOODHEAD / MOLEX
