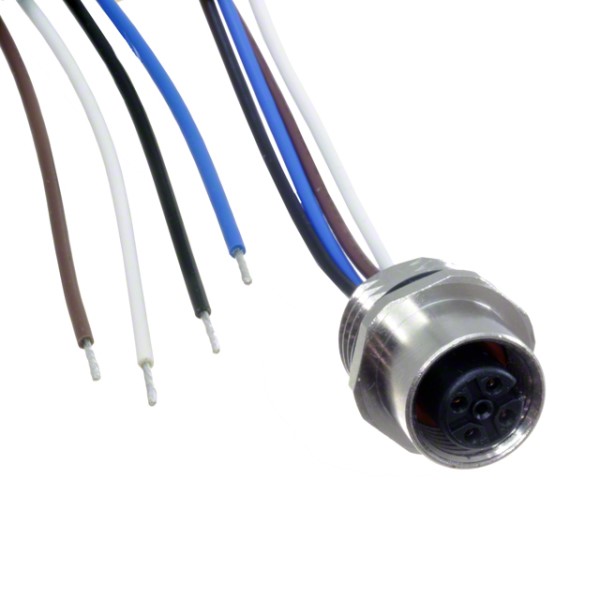

WOODHEAD / MOLEX 8R4J400013 Micro-Change M12 Receptacle
The WOODHEAD / MOLEX 8R4J400013 Micro-Change (M12) receptacle is a robust and reliable connector designed for industrial automation, power transmission, and sensor applications. Its M12 design provides a compact and standardized connection, while the IP67 rating ensures protection against dust and water ingress. The nickel-plated brass construction offers excellent corrosion resistance, and the PCB mount design simplifies integration into electronic systems. With a maximum current of 4.0A and a voltage of 250V AC/DC, this connector is suitable for a wide range of power and signal transmission needs.
WOODHEAD / MOLEX 8R4J400013 Micro-Change M12 Receptacle Specifications:
- IP Rating: IP67
- NEMA Rating: NEMA 6
- Mounting Thread Size: PG9
- Net Weight: 17.079/g
- Temperature Range - Operating: -20° to +80°C
- Current - Maximum per Contact: 4.0A
- Voltage - Maximum: 250V AC/DC
- Material - Component: Nickel-plated Brass
- Poles: 4
- Coupling Type: Internal Thread
- Gender: Female
- Keyway: Single
- Orientation: Straight
Buy the 8R4J400013 WOODHEAD / MOLEX Micro-Change M12 Receptacle | myMectronic
Securely purchase the genuine WOODHEAD / MOLEX 8R4J400013 Micro-Change M12 receptacle here.
Buy Now
Frequently Asked Questions
Where can I buy WOODHEAD / MOLEX 8R4J400013?
You can click on the BUY or RFQ button to purchase 8R4J400013 from an authorized WOODHEAD / MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 8R4J400013?
You can download the 8R4J400013 datasheet or visit the WOODHEAD / MOLEX website for support.
Who is the manufacturer of 8R4J400013?
WOODHEAD / MOLEX
