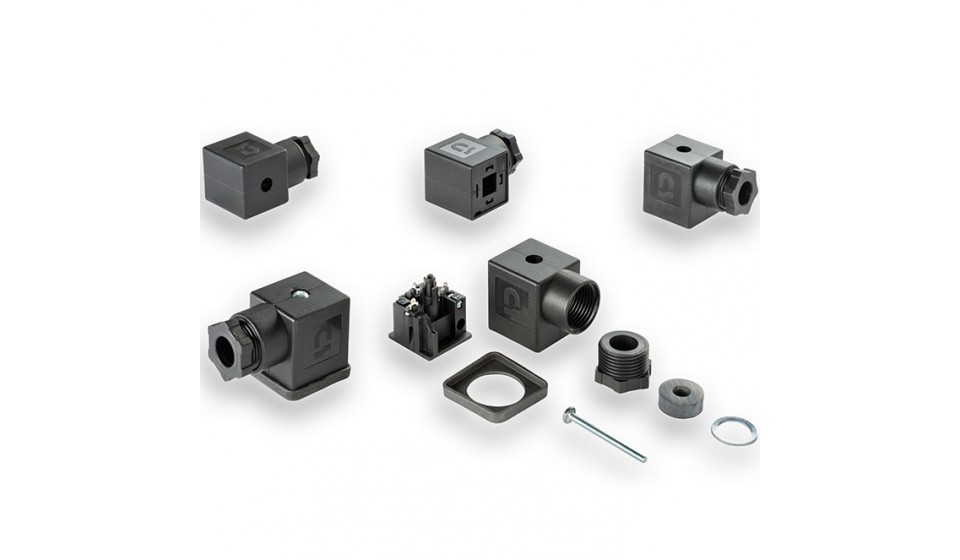

WOODHEAD / MOLEX C183M6W21SA Cable Connectors
The WOODHEAD / MOLEX C183M6W21SA is a versatile circular cable connector ideal for various industrial automation, power transmission, and data communication applications. Constructed with durable materials, it provides reliable performance in harsh environments. The connector's robust design and IP65 ingress protection make it suitable for use in machinery, equipment, and outdoor installations. It supports a maximum current of 16.0A and a voltage of 250V, ensuring efficient and safe power delivery. Available with various gasket options (NBR or Silicone) to suit different temperature requirements (-40°C to +90°C or -40°C to +125°C).
WOODHEAD / MOLEX C183M6W21SA Cable Connectors Specifications:
- MAX_CURRENT: 16.0A
- INSULATION_RESISTANCE: 100Megaohms min.
- MAX_CONDUCTOR: 1.50mm[2] /16AWG
- MAX_VOLTAGE: 250V
- CONTACT_RESISTANCE: ≤15milliohms max.
- CABLE_DIAMETER_RANGE_PG6-M16: 6.00-8.00mm
- CABLE_DIAMETER_RANGE_PG11-G1_2-M20: 8.00-10.00mm
- OPERATING_TEMPERATURE_NBR_GASKET: -40°C TO +90°C
- OPERATING_TEMPERATURE_SILICONE: -40°C TO +125°C
- ENVIRONMENTAL: IP65
- SCREW: 1
- COVER_ASSEMBLY: 1
- INSERT_ASSEMBLY: 1
- GASKET: 1
Buy the C183M6W21SA WOODHEAD / MOLEX Cable Connectors | myMectronic
Purchase the genuine WOODHEAD / MOLEX C183M6W21SA securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WOODHEAD / MOLEX C183M6W21SA?
You can click on the BUY or RFQ button to purchase C183M6W21SA from an authorized WOODHEAD / MOLEX distributor.
How do I troubleshoot issues or seek technical support for part C183M6W21SA?
You can download the C183M6W21SA datasheet or visit the WOODHEAD / MOLEX website for support.
Who is the manufacturer of C183M6W21SA?
WOODHEAD / MOLEX
