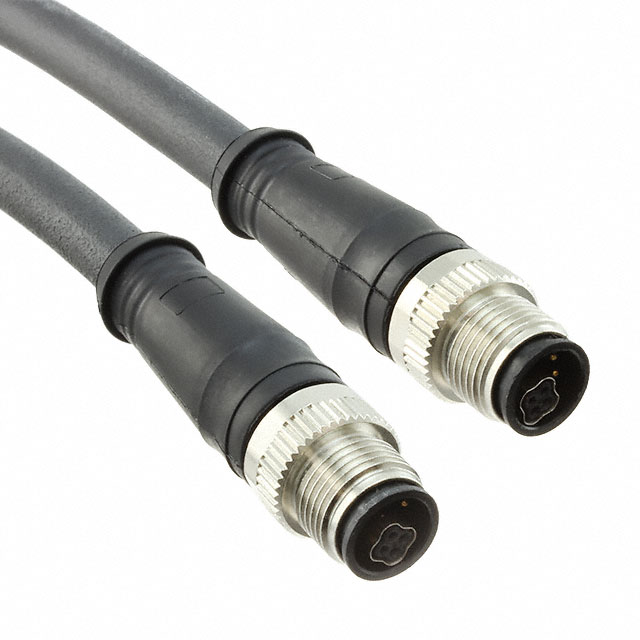

WOODHEAD / MOLEX E11A06004M005 M12 Ethernet Connector
The WOODHEAD / MOLEX E11A06004M005 is a robust M12 Ethernet connector, ideal for industrial automation, networking, and sensor applications. It boasts a durable construction with a TPE black overmold and a teal cable jacket, providing excellent protection against environmental factors. The connector utilizes a tin-copper conductor with a PE insulation and a gold-over-nickel plating for reliable signal transmission. It supports a voltage rating of up to 300V and is designed to operate within a temperature range of -50°C to +75°C, making it suitable for harsh industrial settings. The connector's design ensures secure and dependable data connectivity in various industrial applications.
WOODHEAD / MOLEX E11A06004M005 M12 Ethernet Connector Specifications:
- series: MIC 4P M/MP ST/ST D-CODED XM
- material_number: 130048
- engineering_no_l_mm: E11A06004M005
- length_mm: 5000
- conductor_material: Tined Copper
- conductor_section: 24AWG
- insulation_compound: PE
- insulation_diameter_mm: 0.99
- jacket_compound: TPE
- jacket_color: Teal
- jacket_diameter_mm: 5.58
- temperature_rating: -50°C to +75°C
- voltage_rating_max: 300V
- cable_color_coding: White/Orange, White/Green
- length_tolerances_over_up_to_and_including: +19
- length_tolerances_305_to_915: +45
- length_tolerances_915_to_1830: +56
- length_tolerances_1830_to_3660: +89
- length_tolerances_3660_to_7320: +165
- length_tolerances_7320_to_14640: +317
- length_tolerances_14640_to_30500: +610
- length_tolerances_over_30500: +2% of length
