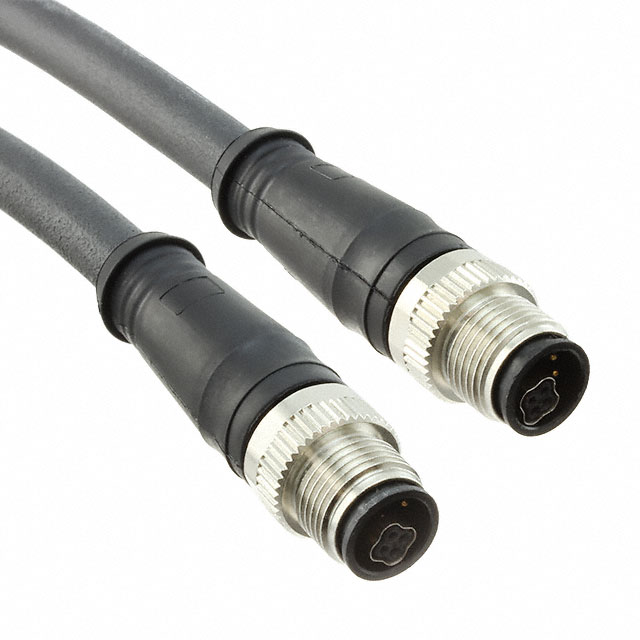

WOODHEAD / MOLEX E11A06004M080 M12 Ethernet Connector
The WOODHEAD / MOLEX E11A06004M080 is a robust M12 Ethernet connector engineered for reliable data communication in industrial automation, process control, and networking applications. It boasts a durable TPE black overmold, ensuring protection against harsh environmental conditions. The connector utilizes a copper alloy gold-over-nickel contact for optimal signal integrity and a brass coupling nut with Teflon over nickel for secure and corrosion-resistant connections. It supports a temperature range of -50°C to +75°C and a voltage rating of up to 300V. The cable features twisted pairs with color-coded insulation and a teal TPE jacket, ensuring organized and protected wiring. Available in a range of lengths, this connector offers flexibility for various installation requirements.
WOODHEAD / MOLEX E11A06004M080 M12 Ethernet Connector Specifications:
- series: MIC 4P M/MP ST/ST D-CODED XM
- material_number: 130048
- tolerance_angular: ±°
- tolerance_4_places: ±
- tolerance_3_places: ±
- tolerance_2_places: ±
- tolerance_1_place: ±
- tolerance_0_places: ±
- length_tolerance_up_to_305mm: +19
- length_tolerance_305_to_915mm: +45
- length_tolerance_915_to_1830mm: +56
- length_tolerance_1830_to_3660mm: +89
- length_tolerance_3660_to_7320mm: +165
- length_tolerance_7320_to_14640mm: +317
- length_tolerance_over_14640mm: +610
- brad_logo: Only on one side of the overmold
- molex_pn: 1300480095
- engineering_no_l_mm: 1000
- conductor_material: Tined Copper
- conductor_section: 24AWG
- insulation_compound: PE
- insulation_diameter: 0.99mm
- jacket_compound: TPE
- jacket_color: Teal
- jacket_diameter: 5.58mm
- temperature_rating: -50°C to +75°C
- voltage_rating_max: 300V
- cable_color_coding: White/Orange, White/Green, Orange, Green
Buy the E11A06004M080 WOODHEAD / MOLEX M12 Ethernet Connector | myMectronic
Purchase the WOODHEAD / MOLEX E11A06004M080 M12 Ethernet Connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WOODHEAD / MOLEX E11A06004M080?
You can click on the BUY or RFQ button to purchase E11A06004M080 from an authorized WOODHEAD / MOLEX distributor.
How do I troubleshoot issues or seek technical support for part E11A06004M080?
You can download the E11A06004M080 datasheet or visit the WOODHEAD / MOLEX website for support.
Who is the manufacturer of E11A06004M080?
WOODHEAD / MOLEX
