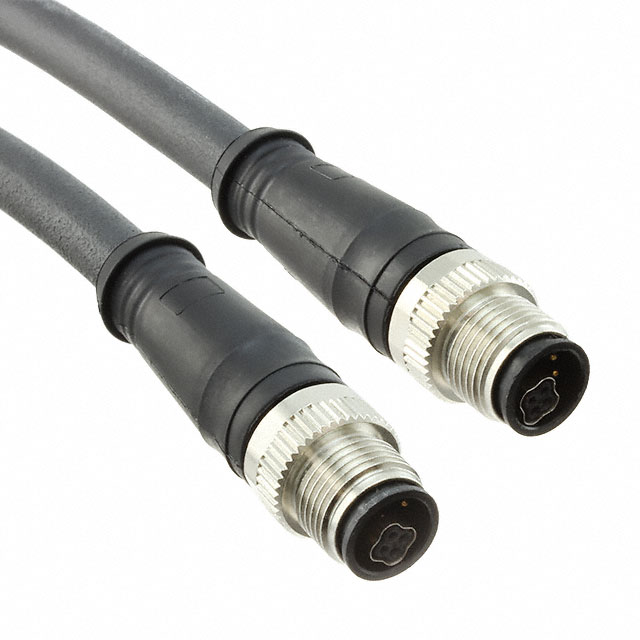

WOODHEAD / MOLEX E11A06004M100 M12 Ethernet Connector
The WOODHEAD / MOLEX E11A06004M100 is a robust M12 Ethernet connector, ideal for industrial automation, process control, and building automation systems. Its M12 form factor provides a compact and secure connection, while the gold-over-nickel plated contacts ensure reliable signal transmission. The connector is designed to withstand harsh environments and provides a dependable solution for Ethernet networking in industrial settings. It supports data transfer and power delivery, making it suitable for a wide range of applications.
WOODHEAD / MOLEX E11A06004M100 M12 Ethernet Connector Specifications:
- series: 130048
- material_number: SEE TABLE 1
- engineering_no_l_mm: 1300480104 E11A06004M100, 10000
- cable_specification_conductor_material: Tinned Copper
- cable_specification_conductor_section: 24AWG
- cable_specification_insulation_compound: PE
- cable_specification_insulation_diameter: 0.99mm
- cable_specification_pairs: Color coded singles, twisted into pairs
- cable_specification_jacket_compound: TPE
- cable_specification_jacket_color: Teal
- cable_specification_jacket_diameter: 5.58mm
- cable_specification_temperature_rating: -50°C to +75°C
- cable_specification_voltage_rating_max: 300V
- length_tolerance_over_up_to_and_including: 0
- length_tolerance_305: +19
- length_tolerance_915: +45
- length_tolerance_1830: +56
- length_tolerance_3660: +89
- length_tolerance_7320: +165
- length_tolerance_14640: +317
- length_tolerance_30500: +610
- length_tolerance_over_30500: +2% OF LENGTH
Buy the E11A06004M100 WOODHEAD / MOLEX M12 Ethernet Connector | myMectronic
Securely purchase the WOODHEAD / MOLEX E11A06004M100 M12 Ethernet Connector online for reliable industrial connectivity.
Buy Now
Frequently Asked Questions
Where can I buy WOODHEAD / MOLEX E11A06004M100?
You can click on the BUY or RFQ button to purchase E11A06004M100 from an authorized WOODHEAD / MOLEX distributor.
How do I troubleshoot issues or seek technical support for part E11A06004M100?
You can download the E11A06004M100 datasheet or visit the WOODHEAD / MOLEX website for support.
Who is the manufacturer of E11A06004M100?
WOODHEAD / MOLEX
