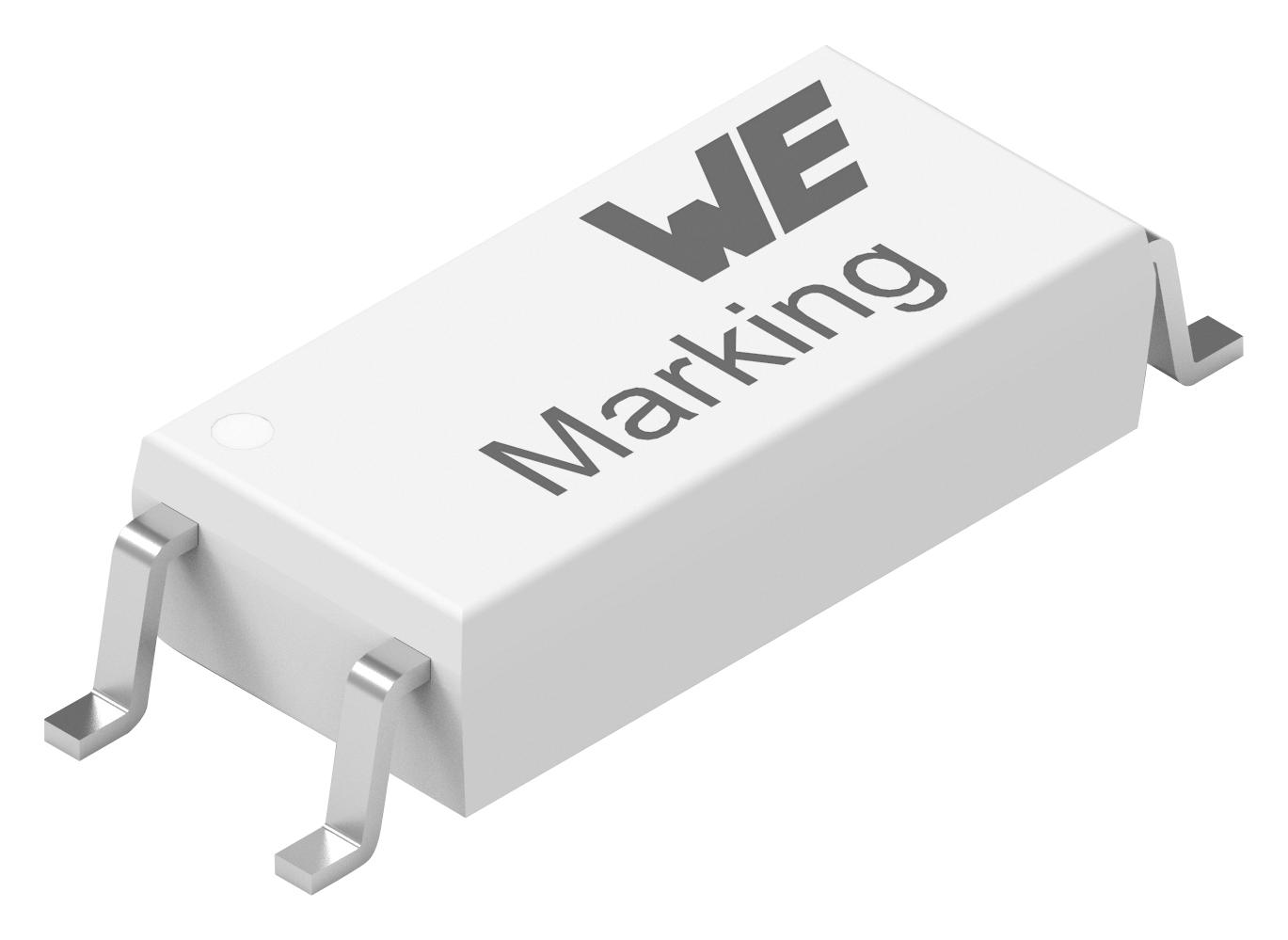

WURTH ELEKTRONIK 140106146000 Optocoupler
The WL-OCPT optocoupler combines an infrared LED with a phototransistor in a compact package, offering reliable isolation and high-speed switching for industrial automation, motor control, and signal isolation applications. Designed with robust electrical characteristics, it operates across a wide temperature range from -65°C to +110°C, ensuring durability in harsh environments. The device complies with RoHS, REACH, and halogen-free standards, making it suitable for both general and safety-critical applications. Its high current transfer ratio and low input current make it energy-efficient and easy to integrate into diverse electronic systems.
WURTH ELEKTRONIK 140106146000 Optocoupler Specifications:
- Type: Optocoupler Phototransistor
- Input: DC
- Package: LSOPA
- Color: White
- Certification: RoHS, REACH, Halogen Free (JEDEC JS7098, IEC 61249-2-21)
- Isolation Voltage: 5000 V AC for 1 minute
- Forward Current: 15 mA (max 60 mA)
- Peak Forward Current: 100 mA at 100 Hz duty cycle
- Emitter Dark Current: ≤ 40 nA at 100 mA
- Reverse Voltage: 6 V
- Collector Emitter Voltage: 80 V
- Collector Current: 50 mA
- Output Power Dissipation: 150 mW
- Current Transfer Ratio: 100–300%
- Operating Temperature: -65°C to +110°C
- Storage Temperature: -55°C to +125°C
- Max. Power Dissipation: 250 mW
- Switching Time: Rise time 18 μs, Fall time 18 μs
- Input Capacitance: 30 pF
- Isolation Resistance: 4000 MΩ
- Soldering Profile: Preheat 150–200°C, max 60–120 sec, Ramp rate 3°C/sec, Peak temp 260°C
- Package Size: Length varies; recommended tape packaging as per IEC 60286-3
Buy the WURTH ELEKTRONIK 140106146000 – Reliable Optical Isolator for Industrial Applications
Order the WURTH ELEKTRONIK optocoupler now to benefit from high current transfer ratio, robust electrical characteristics, and wide temperature operation. Its compliance with RoHS, REACH, and halogen-free standards makes it suitable for diverse industrial environments. Designed for easy integration, this reliable device enhances signal isolation and system safety in automation, motor control, and safety-critical systems. Secure your supply chain by purchasing online today and experience dependable performance in your electronic designs, ensuring durability and compliance.
Buy WURTH ELEKTRONIK 140106146000 optocoupler now and ensure high-speed, reliable signal isolation in industrial automation and safety-critical systems.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 140106146000?
You can click on the BUY or RFQ button to purchase 140106146000 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 140106146000?
You can download the 140106146000 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 140106146000?
WURTH ELEKTRONIK
