WURTH ELEKTRONIK 140107146000 Optocoupler Sensor
This optocoupler features a phototransistor output designed for high reliability in general electronic equipment. It complies with RoHS, REACH, and halogen-free standards, suitable for applications demanding safety and robustness. Operating within -65°C to +110°C and storage conditions up to +125°C, it offers a collector-emitter voltage of 80V, a forward current of 15mA, and a CTR range of 80-160%. Its package includes LSOPA with a white plastic housing, making it ideal for industrial automation, control systems, and medical devices requiring electrical isolation and noise immunity.
WURTH ELEKTRONIK 140107146000 Optocoupler Sensor Specifications:
- Type: Optocoupler Phototransistor
- Input: DC
- Package: LSOPA, White Plastic Housing
- Operating Temperature: -65°C to +110°C
- Storage Temperature: -55°C to +125°C
- Input Forward Current: 15mA
- Peak Forward Current: 60mA
- Collector Emitter Voltage: 80V
- Collector Current: 50mA
- Output Power Dissipation: 150mW
- CTR Range: 80-160%
- Isolation Voltage: 5000V (AC, 1 min.)
- Schematic: 4:1 scale - includes anode, cathode, emitter, collector
- Soldering Profile: Preheat 150-200°C, Max 3°C/sec ramp-up, Max 6°C/sec ramp-down, Peak temp 260°C

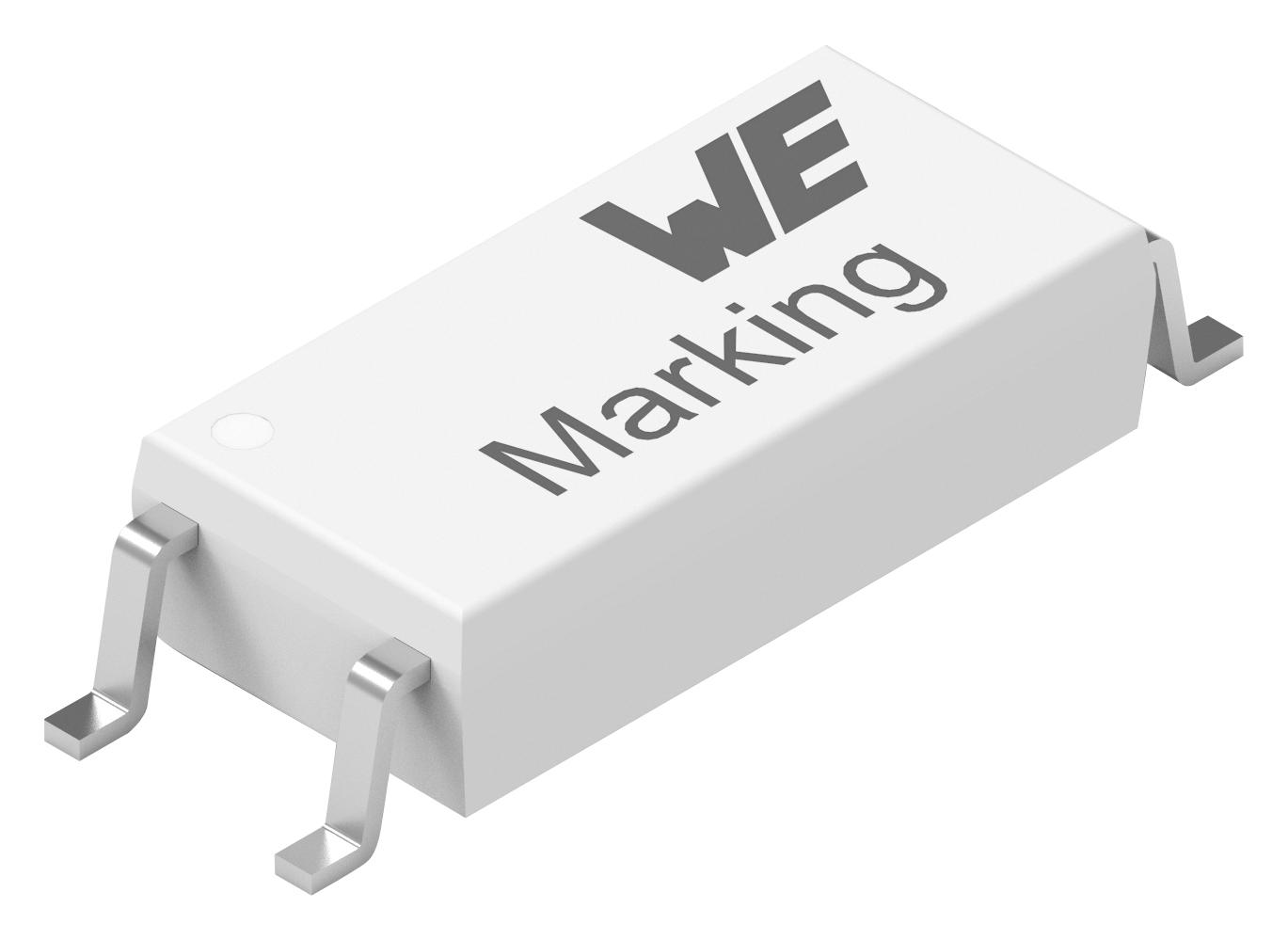

Buy the Wurth Series Optocoupler Phototransistor: 140107146000
Order the Wurth optocoupler with phototransistor today online and enhance your electronic system’s safety and reliability. Designed for general industrial and medical use, it offers electrical isolation, noise immunity, and long-term stability. This high-quality component adheres to international standards including RoHS, REACH, and halogen-free certifications, making it suitable for critical safety applications. Its robust package ensures durability under harsh conditions, and purchasing online guarantees quick delivery and technical support to meet your project needs.
Buy Wurth optocoupler with phototransistor output now and ensure robust electrical isolation for your industrial and medical applications.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 140107146000?
You can click on the BUY or RFQ button to purchase 140107146000 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 140107146000?
You can download the 140107146000 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 140107146000?
WURTH ELEKTRONIK
