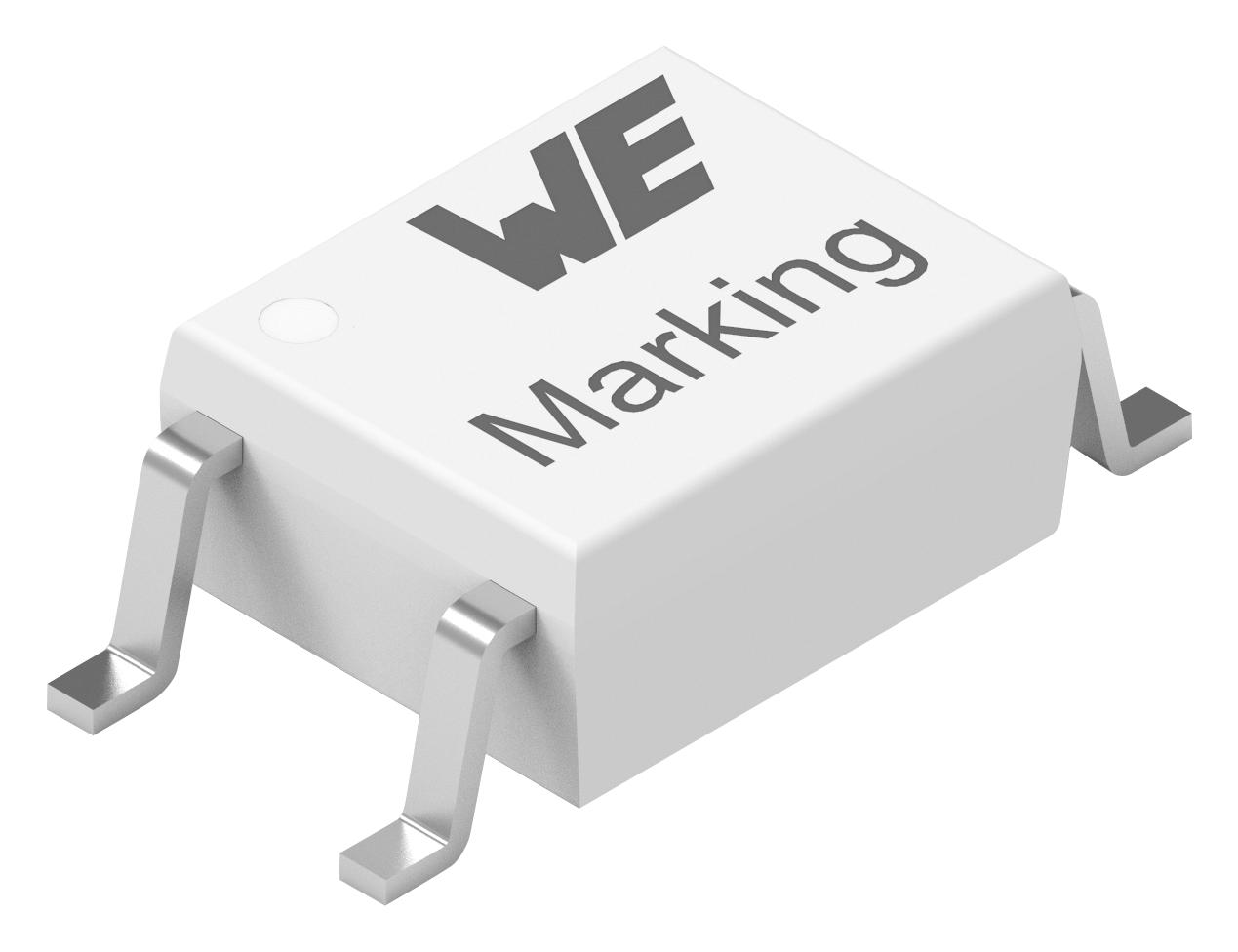

WURTH ELEKTRONIK 140354245000 Optocoupler Module
This optocoupler features a phototransistor output designed for use in general electronic circuits, providing electrical isolation and signal transfer between different system sections. It operates with a current transfer ratio of 20-300%, withstands collector-emitter voltages up to 80V, and supports a collector current of 50mA. Suitable for applications requiring reliable electrical isolation, the component boasts a high CTR and low dark current, with a maximum input dissipation of 100mW. It complies with RoHS, REACH, and halogen-free standards, and is designed to operate at temperatures from -55°C to +110°C, ensuring durability across various industrial environments.
WURTH ELEKTRONIK 140354245000 Optocoupler Module Specifications:
- Type: Optocoupler Phototransistor
- Input: AC, 14 Package SOP 4, Plastic Housing, White Color
- Operating Temperature: -55°C to +110°C
- Storage Temperature: -55°C to +126°C
- Collector-Emitter Voltage: 80 V
- Collector Current: 50 mA
- Input Power Dissipation: 100 mW
- Output Power Dissipation: 150 mW
- Current Transfer Ratio: 20-300%
- Isolation Voltage: 3750 V (RMS, 1 min)
- Rise Time: 18 μs
- Fall Time: 18 μs
- Forward Voltage: 1.24 V at 10 mA
- Maximum Dark Current: 100 nA
- Maximum Ambient Temperature: +110°C
- Standards: RoHS, REACH, Halogen Free, UL Approval
- Storage Conditions: < 40°C; < 75% RH
- Soldering profile aligns with IPC/J-STD-020E
Buy the Buy Wurth Optocoupler Part Number 140354245000 Online
Order the Wurth optocoupler with part number 140354245000 online today to ensure your electronic systems benefit from its high CTR, low dark current, and robust operation across a wide temperature range. Designed with durability and safety in mind, this optoelectronic component provides excellent electrical isolation, supporting applications in industrial automation, medical equipment, and safety-critical systems. With quick delivery and guaranteed authenticity, purchasing online guarantees you a quality product that meets all relevant standards and specifications for long-term reliability.
Get Wurth 140354245000 today—built for reliable electrical isolation and high performance in industrial applications.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 140354245000?
You can click on the BUY or RFQ button to purchase 140354245000 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 140354245000?
You can download the 140354245000 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 140354245000?
WURTH ELEKTRONIK
