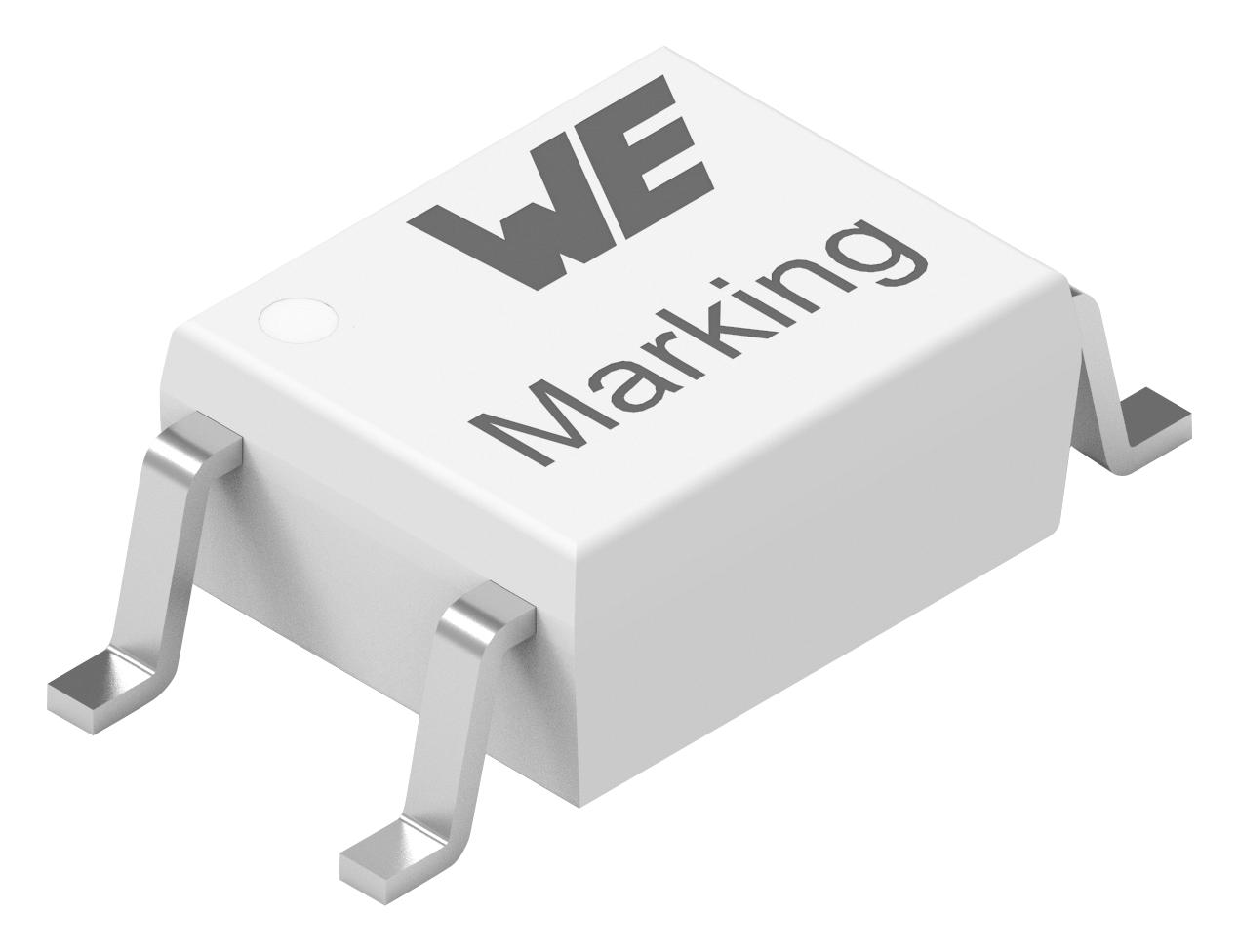

WURTH ELEKTRONIK 140357145200 Optocoupler
This optocoupler features a phototransistor output, designed for general electronic equipment, with an input DC of 2 mA and a forward voltage of 1.24 V at 10 mA. It conforms to RoHS, REACH, and halogen-free standards, ensuring safety and environmental compliance. Its electrical and optical properties include a CTR of 130-260%, a collector-emitter voltage of 35 V, and a collector current up to 50 mA. Suitable for high-reliability applications, it includes robust isolation ratings and temperature tolerance from -55°C to +110°C, making it versatile for switching and isolation tasks in industrial control systems.
WURTH ELEKTRONIK 140357145200 Optocoupler Specifications:
- Type: Optocoupler Phototransistor
- Input DC: 2 mA
- Forward Voltage: 1.24 V at 10 mA
- Peak Forward Current: 60 mA
- Reverse Voltage: 6 V
- Collector Emitter Voltage: 35 V
- Collector Current: 50 mA
- Collector Power Dissipation: 150 mW
- Output Power Dissipation: 150 mW
- CTR: 130-260%
- Operating Temperature: -55°C to +110°C
- Storage Temperature: -55°C to +125°C
- Isolation Voltage: 3750 V (AC for 1 min)
- Schematic: Standard optocoupler configuration
- Certification: UL, RoHS, REACH compliant, halogen free
- Package: SOP 4 plastic housing, white color
- Moisture Sensitivity Level: MSL 1
Buy the Buy WURTH ELEKTRONIK Optocoupler Part Number 140357145200 Online
Purchase the WURTH ELEKTRONIK optocoupler with part number 140357145200 online today to enhance your electronic system's safety and performance. This high-quality optocoupler provides excellent isolation through a phototransistor output, high CTR, and a wide temperature range from -55°C to +110°C. Ideal for industrial control, automation, and safety-critical systems, it is RoHS, REACH, and halogen free, ensuring compliance with strict environmental standards. Order now to benefit from swift delivery, guaranteed authenticity, and technical support for your project needs.
Buy WURTH ELEKTRONIK optocoupler part 140357145200 now and experience unmatched reliability and optical isolation performance for your industrial applications.
