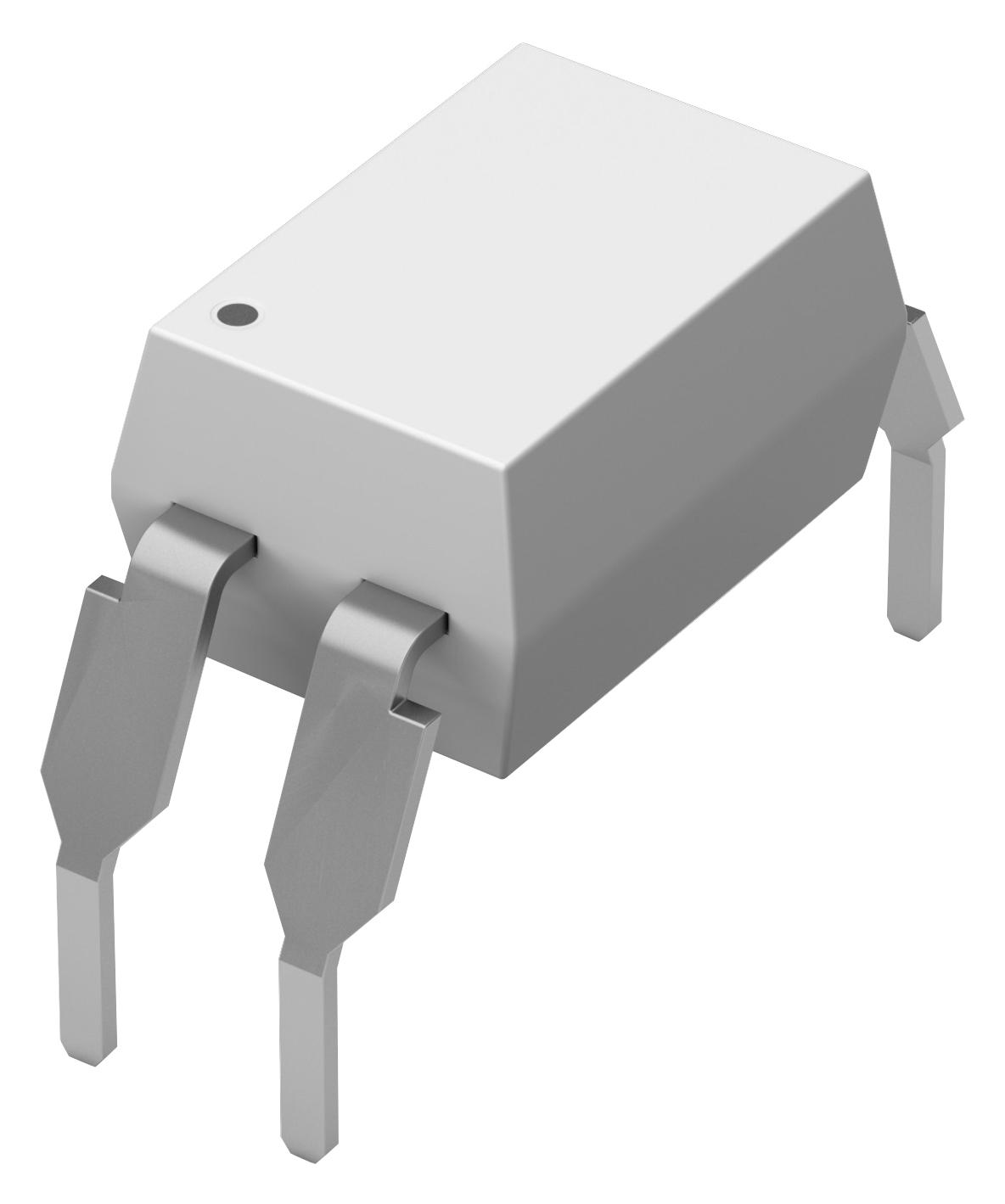

WURTH ELEKTRONIK 140816141010 Optocoupler Phototransistor
The WURTH ELEKTRONIK 140816141010 is a DIP 4 optocoupler designed for general electronic equipment. It utilizes a phototransistor output to provide electrical isolation between input and output circuits, enhancing system safety and noise immunity. This component is suitable for applications such as industrial control systems, power supplies, and data transmission where galvanic isolation is crucial. It offers a wide operating temperature range and is compliant with RoHS and REACH standards, ensuring environmental responsibility. The device is not intended for use in safety-critical applications without proper evaluation and testing.
WURTH ELEKTRONIK 140816141010 Optocoupler Phototransistor Specifications:
- Type: Optocoupler Phototransistor
- Package: DIP 4, M-Type
- Housing Color: White
- Operating Temperature: -55 up to +110 °C
- Storage Temperature: -55 up to +125 °C
- Storage Conditions: 40 °C; < 75 % RH
- Moisture Sensitivity Level: MSL 1
- Forward Voltage: 1.24 - 1.4 V
- Reverse Current: ≤ 10 µA
- Input Capacitance: ≤ 10 pF
- Collector-Emitter Dark Current: ≤ 100 nA
- Collector-Emitter Breakdown Voltage: ≥ 80 V
- Emitter-Collector Breakdown Voltage: ≥ 7 V
- Current Transfer Ratio: 50 - 600 %
- Collector-Emitter Saturation Voltage: ≤ 0.2 V
- Rise Time: ≤ 18 µs
- Fall Time: ≤ 18 µs
- Cut-Off Frequency: ≤ 80 kHz
- Floating Capacitance: ≤ 0.4 pF
- Isolation Resistance: ≥ 1 TΩ
- Isolation Voltage: ≥ 5000 V (RMS)
- Forward Current: ≤ 60 mA
- Peak Forward Current: ≤ 1 A
- Reverse Voltage: ≤ 6 V
- Input Power Dissipation: ≤ 100 mW
- Collector Emitter Voltage: ≤ 80 V
- Emitter Collector Voltage: ≤ 7 V
- Collector Current: ≤ 50 mA
- Output Power Dissipation: ≤ 150 mW
- Power Dissipation: ≤ 200 mW
- UL Approval: E513104
- CQC Approval: CQC20001244742
- VDE Approval: 40051484
