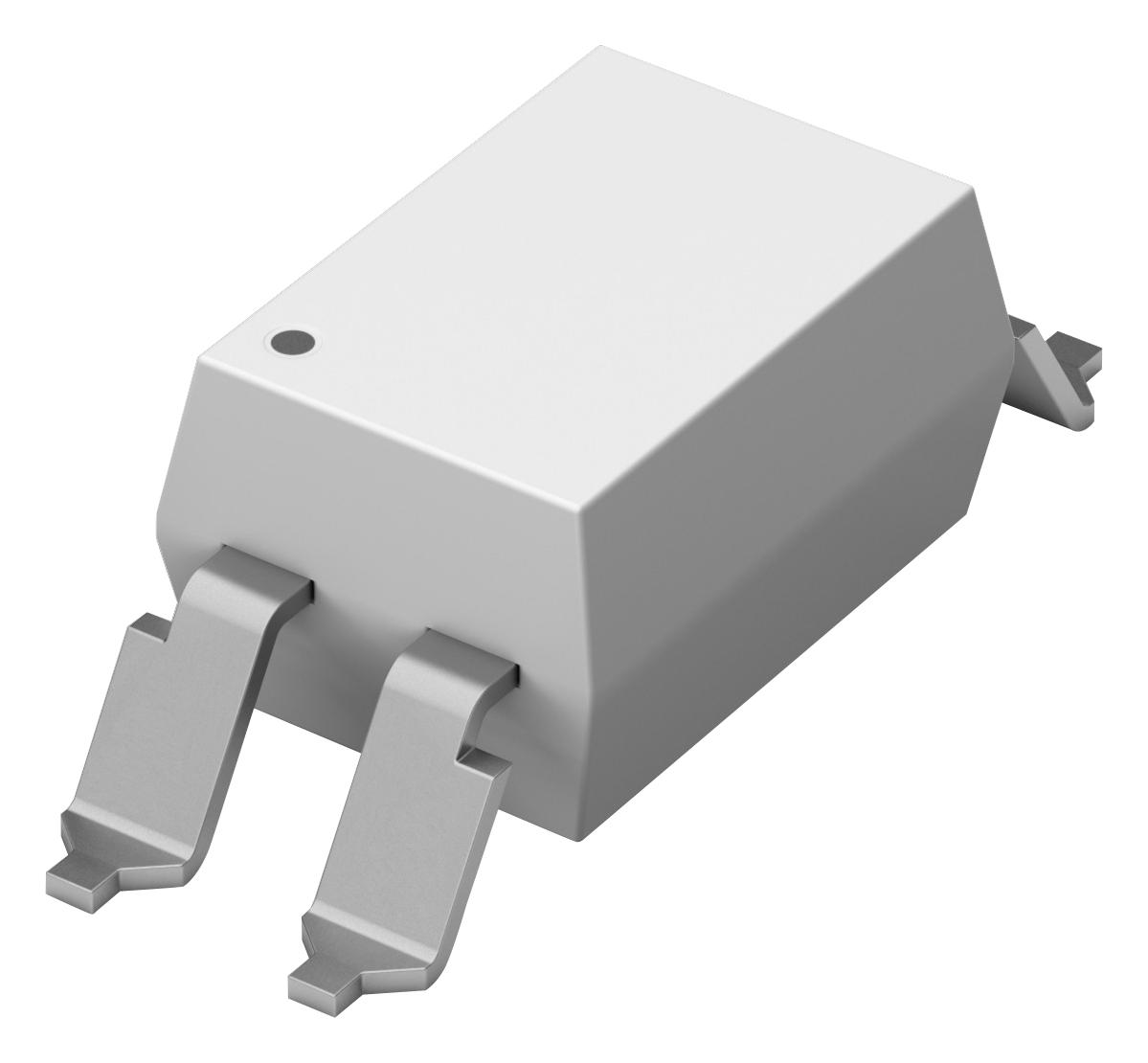

WURTH ELEKTRONIK 140816144100 Optocoupler Phototransistor
The WURTH ELEKTRONIK 140816144100 is an optocoupler incorporating a phototransistor output. This device provides a cost-effective and reliable solution for transferring signals while maintaining electrical isolation. It's suitable for a broad range of applications including industrial control, power supplies, and signal transmission where safety and noise immunity are critical. The component's RoHS compliance and wide operating temperature range (-55°C to +110°C) make it suitable for diverse environments. It is not intended for use in safety-critical applications without proper evaluation and testing.
WURTH ELEKTRONIK 140816144100 Optocoupler Phototransistor Specifications:
- Type: Optocoupler Phototransistor
- Package: DIP 4, SLM-Type
- Housing Color: White
- RoHS Approval: Compliant [2011/65/EU&2015/863]
- REACh Approval: Conform or declared [(EC)1907/2006]
- Halogen Free: Conform [IEC 61249-2-21] & [JEDEC JS709B]
- VDE Approval: EN 60747-5-5:2011; A1:2015
- UL Approval: E513104 [UL 1577]
- CQC Approval: CQC20001244742 [GB4943.1-2001; GB8898-2011]
- Operating Temperature: -55 up to +110 °C
- Storage Temperature: -40 °C ; < 75 % RH
- Moisture Sensitivity Level (MSL): 1
- Pin 1: Anode
- Marking: 816A (Series 816, Binning A)
- Product Marking: WL-OCPT
- Forward Voltage (VF): 1.24 V (typ.)
- Reverse Current (IREV): 10 µA
- Input Capacitance (Cin): 10 pF
- Collector-Emitter Dark Current (ICEO.Dark): 100 nA
- Collector-Emitter Breakdown Voltage (V(BR)CE): 80 V
- Emitter-Collector Breakdown Voltage (V(BR)EC): 7 V
- Collector Current (ICE.P): 50 mA
- Output Power Dissipation (PO): 150 mW
- Current Transfer Ratio (CTR): 80-160 %
- Collector-Emitter Saturation Voltage (VCEsat): 0.06-0.2 V
- Rise Time (tr): 3-18 µs
- Fall Time (tf): 4-18 µs
- Cut-Off Frequency (fc): 80 kHz
- Floating Capacitance (CIO): 0.4 pF
- Isolation Resistance (RISO): 1-100 TΩ
- Forward Current (IF): 60 mA
- Peak Forward Current (IF Peak): 1 A
- Reverse Voltage (VREV): 6 V
- Input Power Dissipation (PI): 100 mW
- Collector Emitter Voltage (VCE): 80 V
- Emitter Collector Voltage (VEC): 7 V
- Power Dissipation (PDiss): 200 mW
- Isolation Voltage (VISO): 5000 V (RMS)
