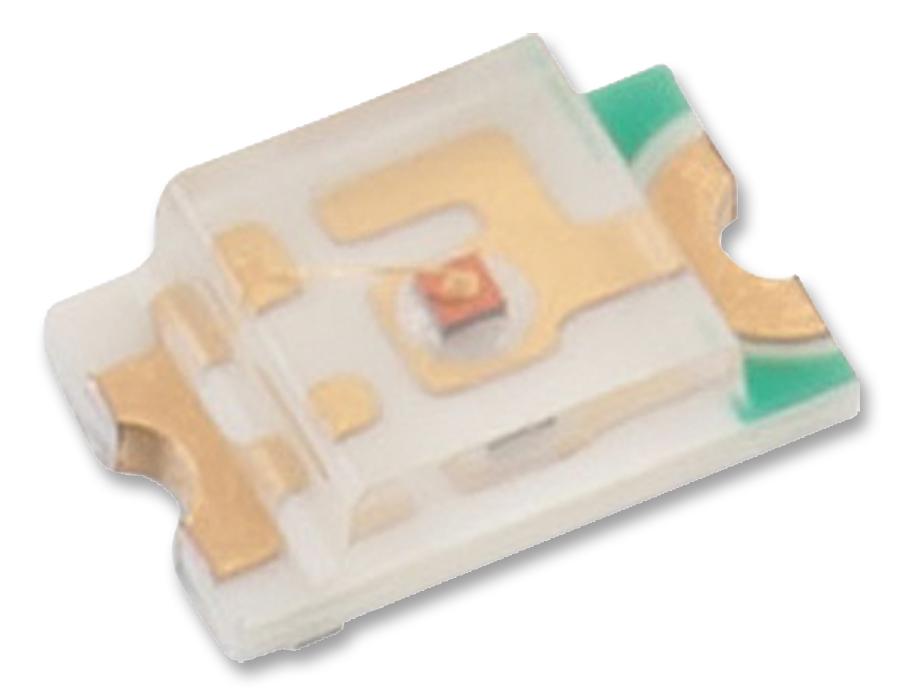

WURTH ELEKTRONIK 150080RS75000 Waterclear Mono Color LED
The WURTH ELEKTRONIK 150080RS75000 is a waterclear, mono-color SMD LED designed for a wide range of applications in general electronic equipment. This LED features a peak wavelength of 630nm and a dominant wavelength of 625nm, emitting a vibrant red light. With a luminous intensity ranging from 120 to 150 mcd, it provides adequate brightness for various indicator and lighting purposes. The component is designed for surface mount technology and is suitable for automated assembly processes. It is not intended for use in critical safety applications without proper evaluation and agreement with Würth Elektronik.
WURTH ELEKTRONIK 150080RS75000 Waterclear Mono Color LED Specifications:
- Chip Technology: AlInGaP
- Emitting Color: Red
- Lens Type: Chip LED
- Power Dissipation: 72 mW
- Peak Forward Current: 100 mA
- Continuous Forward Current: 30 mA
- Reverse Voltage: 5 V
- ESD Threshold Human Body Modell: 2000 V
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Moisture Sensitivity Level (MSL): 3
- Peak Wavelength: 630 nm
- Dominant Wavelength: 625 nm
- Luminous Intensity: 120-150 mcd
- Forward Voltage: 2.0-2.4 V
- Spectral Bandwidth: 15 nm
- Reverse Current: ≤10 μA
- Viewing Angle: 140°
