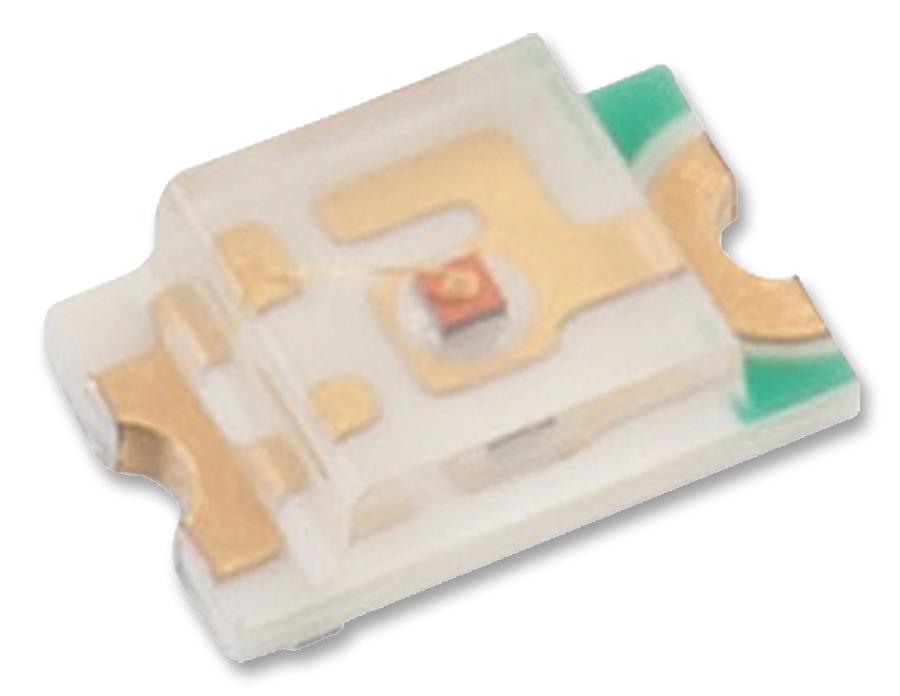

WURTH ELEKTRONIK 150080VS75000 SMT Mono-color Chip LED
The Würth Elektronik 150080VS75000 is a surface-mount technology (SMT) mono-color chip LED designed for general electronic equipment. Emitting bright green light, this LED features a peak wavelength of 572nm and a dominant wavelength of 570nm. With a luminous intensity of 40 mcd at 20mA, it offers efficient light output. The component is characterized by its compact size (0805) and robust design, suitable for integration into diverse electronic assemblies. It is RoHS compliant and designed for general electronic equipment only, not intended for critical safety applications without proper evaluation.
WURTH ELEKTRONIK 150080VS75000 SMT Mono-color Chip LED Specifications:
- Power Dissipation: 72 mW
- Peak Forward Current: 100 mA
- Continuous Forward Current: 30 mA
- ESD Threshold: 2000 V
- Junction Temperature: 95 °C
- Chip Technology: AlInGaP
- Emitting Color: Bright Green
- Lens Type: Chip LED
- Polarity: Marked (Cathode)
- Operating Temperature: -40 to +85 °C
- Storage Temperature: -40 to +85 °C
- Moisture Sensitivity Level: 3
- Peak Wavelength: 572 nm
- Dominant Wavelength: 570 nm
- Luminous Intensity: 12-40 mcd
- Forward Voltage: 2.0-2.4 V
- Spectral Bandwidth: 15 nm
- Reverse Current: 10 µA
- Viewing Angle: 140°
