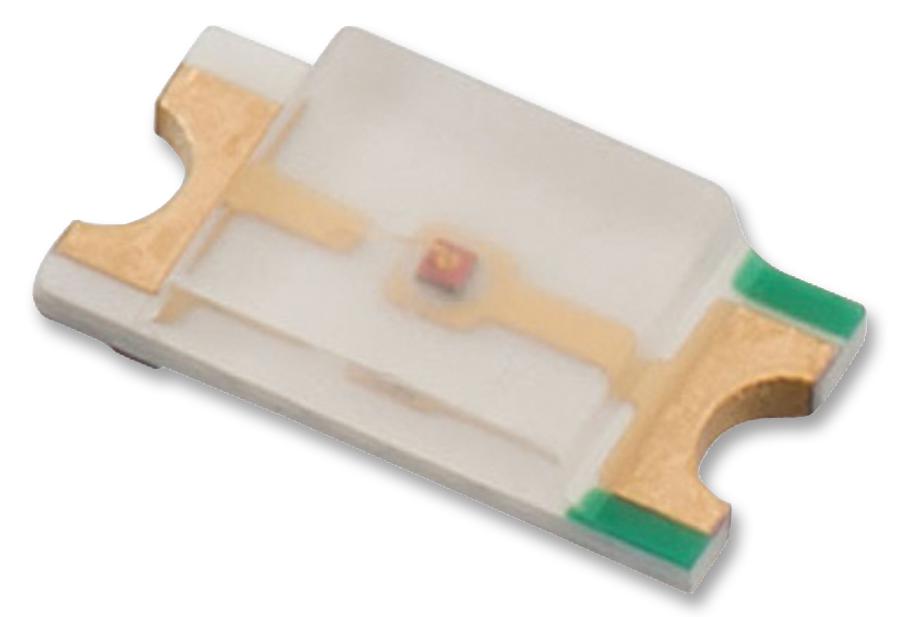

WURTH ELEKTRONIK 150120AS75000 Amber SMD Chip LED
The WURTH ELEKTRONIK 150120AS75000 is a compact, surface-mount LED designed for a wide range of electronic applications. It emits amber light with a luminous intensity ranging from 90 to 140 millicandelas at a forward current of 20 milliamperes. The LED's robust design allows for operation in environments with temperatures ranging from -40°C to +85°C, making it suitable for both commercial and industrial applications. It is RoHS compliant, ensuring adherence to environmental standards. This component is intended for general electronic equipment and is not authorized for use in safety-critical applications without specific agreements and thorough reliability evaluations.
WURTH ELEKTRONIK 150120AS75000 Amber SMD Chip LED Specifications:
- Chip Technology: AlInGaP
- Emitting Color: Amber
- Lens Type: Chip LED
- Power Dissipation: 72 mW
- Peak Forward Current: 100 mA
- Continuous Forward Current: 30 mA
- Reverse Voltage: 5 V
- ESD Threshold Human Body Modell: 2000 V
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Moisture Sensitivity Level (MSL): 3
- Peak Wavelength: 610 nm
- Dominant Wavelength: 605 nm
- Luminous Intensity: 90-140 mcd
- Forward Voltage: 2.0-2.4 V
- Spectral Bandwidth: 15 nm
- Reverse Current: ≤10 μA
- Viewing Angle: 140°
Buy the 150120AS75000 WURTH ELEKTRONIK Amber SMD Chip LED | myMectronic
Purchase the WURTH ELEKTRONIK 150120AS75000 securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 150120AS75000?
You can click on the BUY or RFQ button to purchase 150120AS75000 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 150120AS75000?
You can download the 150120AS75000 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 150120AS75000?
WURTH ELEKTRONIK
