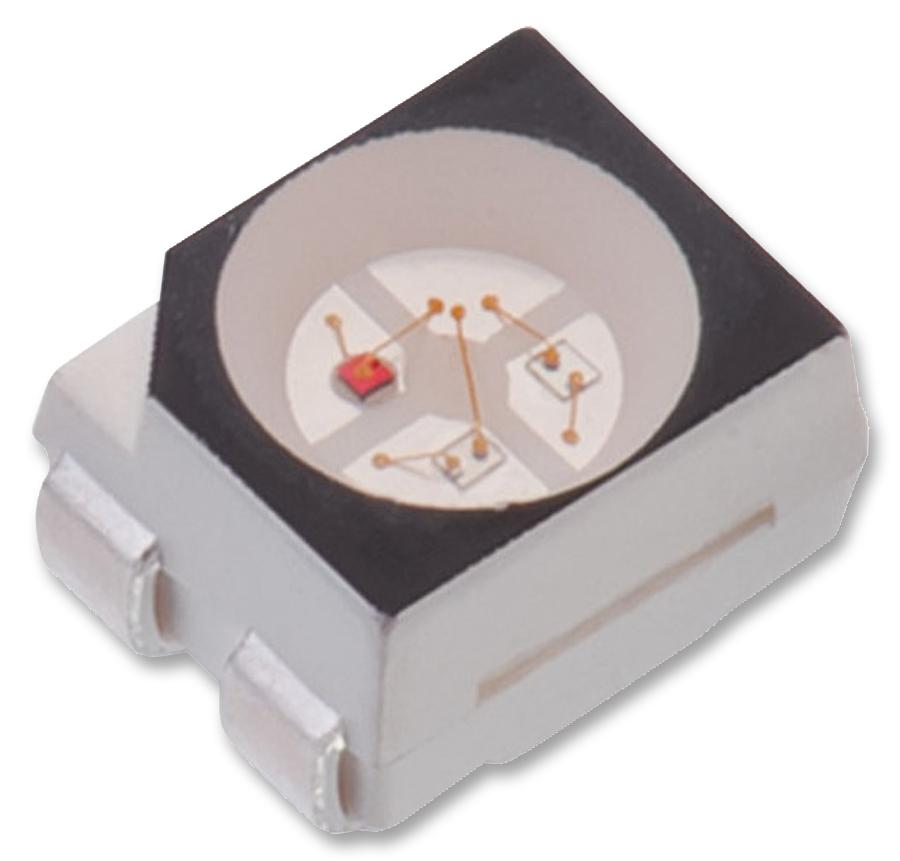

WURTH ELEKTRONIK 150141M173100 Full-color Top LED
The Würth Elektronik 150141M173100 is a full-color SMT LED designed for integration into a wide range of electronic devices. This LED offers a compact footprint and features red, green, and blue light emission, making it suitable for indicator lights, displays, and other lighting applications. It operates with a continuous forward current of 30mA and a reverse voltage of 5V. The component is RoHS compliant and designed for general electronic equipment, not for critical safety applications. Users should consult Würth Elektronik for specific use cases requiring higher safety and reliability standards.
WURTH ELEKTRONIK 150141M173100 Full-color Top LED Specifications:
- Power Dissipation (Blue): 108 mW
- Power Dissipation (Green): 108 mW
- Power Dissipation (Red): 72 mW
- Peak Forward Current: 100 mA
- Continuous Forward Current: 30 mA
- Reverse Voltage: 5 V
- ESD Threshold (HBM): 1000 V
- Chip Technology: AlInGaP + InGaN
- Scale: 8:1
- Emitting Color: Red & Green & Blue
- Lens Type: Top LED
- Operating Temperature: up to +85 °C
- Moisture Sensitivity Level: 3
- Peak Wavelength (Blue): 465 nm
- Peak Wavelength (Green): 515 nm
- Peak Wavelength (Red): 635 nm
- Dominant Wavelength (Blue): 470 nm
- Dominant Wavelength (Green): 520 nm
- Dominant Wavelength (Red): 625 nm
- Luminous Intensity (Blue): 180-230 mcd
- Luminous Intensity (Green): 700-950 mcd
- Luminous Intensity (Red): 200-270 mcd
- Forward Voltage (Green): 3.2-3.6 V
- Forward Voltage (Blue): 3.2-3.6 V
- Forward Voltage (Red): 2-2.4 V
- Spectral Bandwidth (Blue): 20 nm
- Spectral Bandwidth (Green): 35 nm
- Spectral Bandwidth (Red): 15 nm
- Reverse Current: 10 µA
- Viewing Angle: 120°
- RoHS Approval: Compliant
- REACh Approval: Conform
- Halogen Free: Conform
