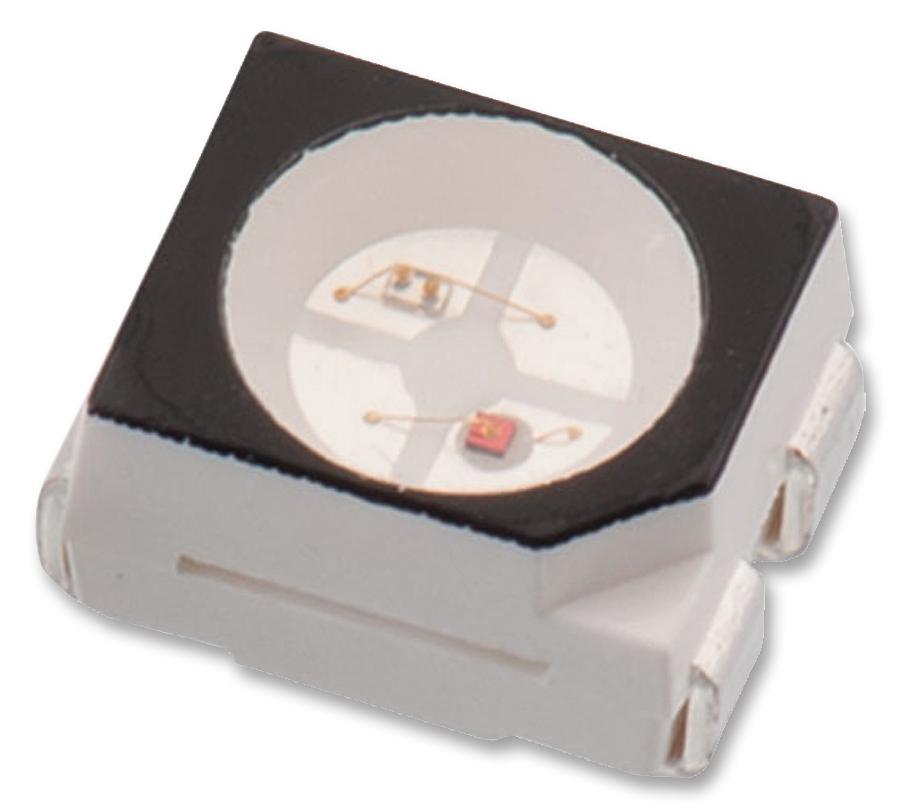

WURTH ELEKTRONIK 150141YB73100 Bi-color SMT LED
The WL-SBTW SMT Bi-color TOP LED features water-clear, top LED technology with yellow and blue emission colors. Designed for general electronic equipment, it offers high reliability with RoHS and REACH compliance. The device operates within -40°C to +85°C, with a luminous intensity of up to 240 med at 20mA, peak wavelengths of 465 nm (blue) and 592 nm (yellow), and forward voltages of 3.2–3.5 V (blue) and 2–2.4 V (yellow). It includes precise optical properties, tested under industry standards, making it suitable for diverse applications demanding high performance and safety.
WURTH ELEKTRONIK 150141YB73100 Bi-color SMT LED Specifications:
- Peak Wavelength (Blue): 465 nm
- Peak Wavelength (Yellow): 592 nm
- Dominant Wavelength (Blue): 470 nm
- Dominant Wavelength (Yellow): 590 nm
- Luminous Intensity (Blue): 200–240 med at 20mA
- Luminous Intensity (Yellow): 200–220 med at 20mA
- Forward Voltage (Blue): 3.2–3.5 V at 20mA
- Forward Voltage (Yellow): 2–2.4 V at 20mA
- Spectral Bandwidth (Blue): 20 nm
- Spectral Bandwidth (Yellow): 15 nm
- Operating Temperature Range: -40°C to +85°C
- Storage Conditions: < 40°C; < 90% RH
- Soldering Profile: Preheat min. 150°C, max. 200°C, max time 60–120 sec, ramp-up rate 3°C/sec, max peak temperature > 220°C
- Reflow temperature max: 260°C for <1.6mm thick packages
- RoHS & REACH compliant, Halogen Free (JEDEC JS709B, IEC 61249-2-21)
Buy the Wurth Series SMT Bi-color TOP LED: 150141YB73100
Order the Wurth 150141YB73100 Bi-color SMT LED today online and enjoy fast delivery of high-quality, water-clear top LEDs. Perfect for general electronic applications, these LEDs comply with RoHS, REACH, and halogen-free standards. Operating reliably within -40°C to +85°C, they feature vibrant yellow and blue emission colors, with peak wavelengths at 465 nm and 592 nm. They are tested under industry standards for optical and electrical properties, ensuring superior performance and safety in your design. Secure your supply now with our easy online purchase process and experience top-tier quality in optoelectronics.
Buy Wurth 150141YB73100 now and experience unmatched reliability and performance in optoelectronic illumination solutions.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 150141YB73100?
You can click on the BUY or RFQ button to purchase 150141YB73100 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 150141YB73100?
You can download the 150141YB73100 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 150141YB73100?
WURTH ELEKTRONIK
