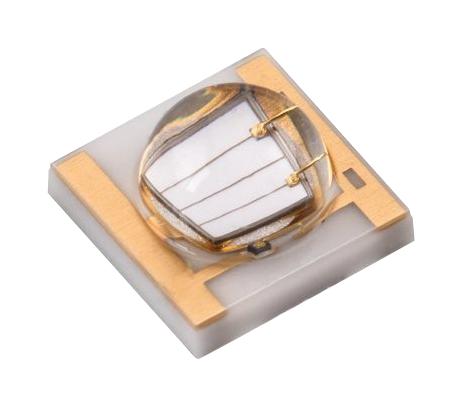

WURTH ELEKTRONIK 150353HS74500 Horticulture SMD Monocolor Ceramic LED
The Würth Elektronik 150353HS74500 is a surface-mount device (SMD) LED specifically designed for horticulture applications. This hyper-red LED utilizes AlInGaP chip technology and features a waterclear dome lens for optimal light distribution. It's designed for general electronic equipment and offers a wide viewing angle and efficient light output. The LED is suitable for various lighting applications where a focused red spectrum is beneficial for plant growth, such as indoor farming and horticultural lighting systems. It is not intended for use in safety-critical applications without proper evaluation and agreement.
WURTH ELEKTRONIK 150353HS74500 Horticulture SMD Monocolor Ceramic LED Specifications:
- Dimensions: 3.25 ±0.15 mm
- Recommended Land Pattern: 4.1 mm
- Power Dissipation PDiss: 2.1 W
- Peak Forward Current IF Peak: 1500 mA
- Continuous Forward Current IF: 700 mA
- Reverse Voltage VREV: 5 V
- ESD Threshold VESD HBM: 8000 V
- Junction to Solder Point RθJS: 8 K/W
- Thermal Pad Junction Temperature TJ: 125 °C
- Emitting Color: Hyper Red
- Lens Type: Dome Lens Waterclear
- Operating Temperature: -40 °C up to +100 °C
- Storage Conditions: -40 °C up to +125 °C, 60% RH max.
- Moisture Sensitive Level MSL: 2
- Peak Wavelength: 660 nm
- Radiant Flux: 240-330 mW
- Forward Voltage: 2.4-3 V
- Spectral Bandwidth: 20 nm
- Viewing Angle Phi 0°: 125 °
- Relative Luminous Intensity: Data available in datasheet
