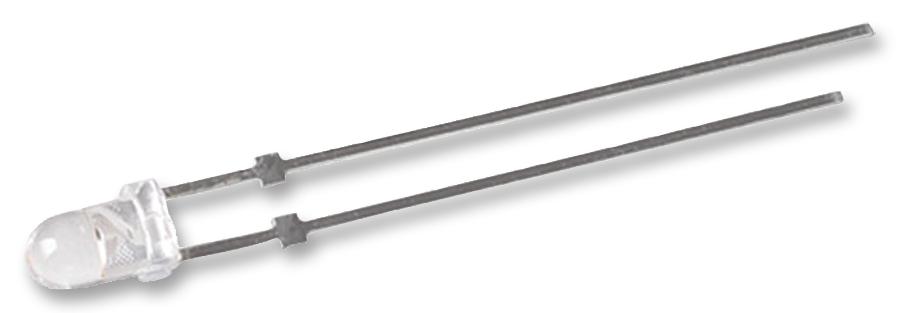

WURTH ELEKTRONIK 151033BS03000 THT LED Round Mono Color
The WURTH ELEKTRONIK 151033BS03000 is a through-hole mounted (THT) LED designed for general electronic applications. It emits blue light through a waterclear lens, providing good visibility. The LED operates within a temperature range of -40°C to +85°C, making it suitable for a wide range of environments. It's important to note that this component is not intended for use in safety-critical applications without proper evaluation and agreement with Würth Elektronik. The LED's luminous intensity ranges from 1100 to 3800 mcd, offering a bright and reliable light source for various projects.
WURTH ELEKTRONIK 151033BS03000 THT LED Round Mono Color Specifications:
- Optical Properties: Blue Emitting Color, Waterclear Lens
- Chip Technology: InGaN
- Power Dissipation: 108 mW
- Peak Forward Current: 100 mA
- Continuous Forward Current: 30 mA
- Reverse Voltage: 5 V
- ESD Threshold Human Body Modell: 1000 V
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C; 60% RH max
- Moisture Sensitivity Level (MSL): 1
- Peak Wavelength: 465 nm
- Dominant wavelength: 470 nm
- Luminous Intensity: 1100-3800 mcd
- Forward Voltage: 2.8-3.6 V
- Spectral Bandwidth: 20 nm
- Reverse Current: ≤ 50 μA
- Viewing Angle: 30°
