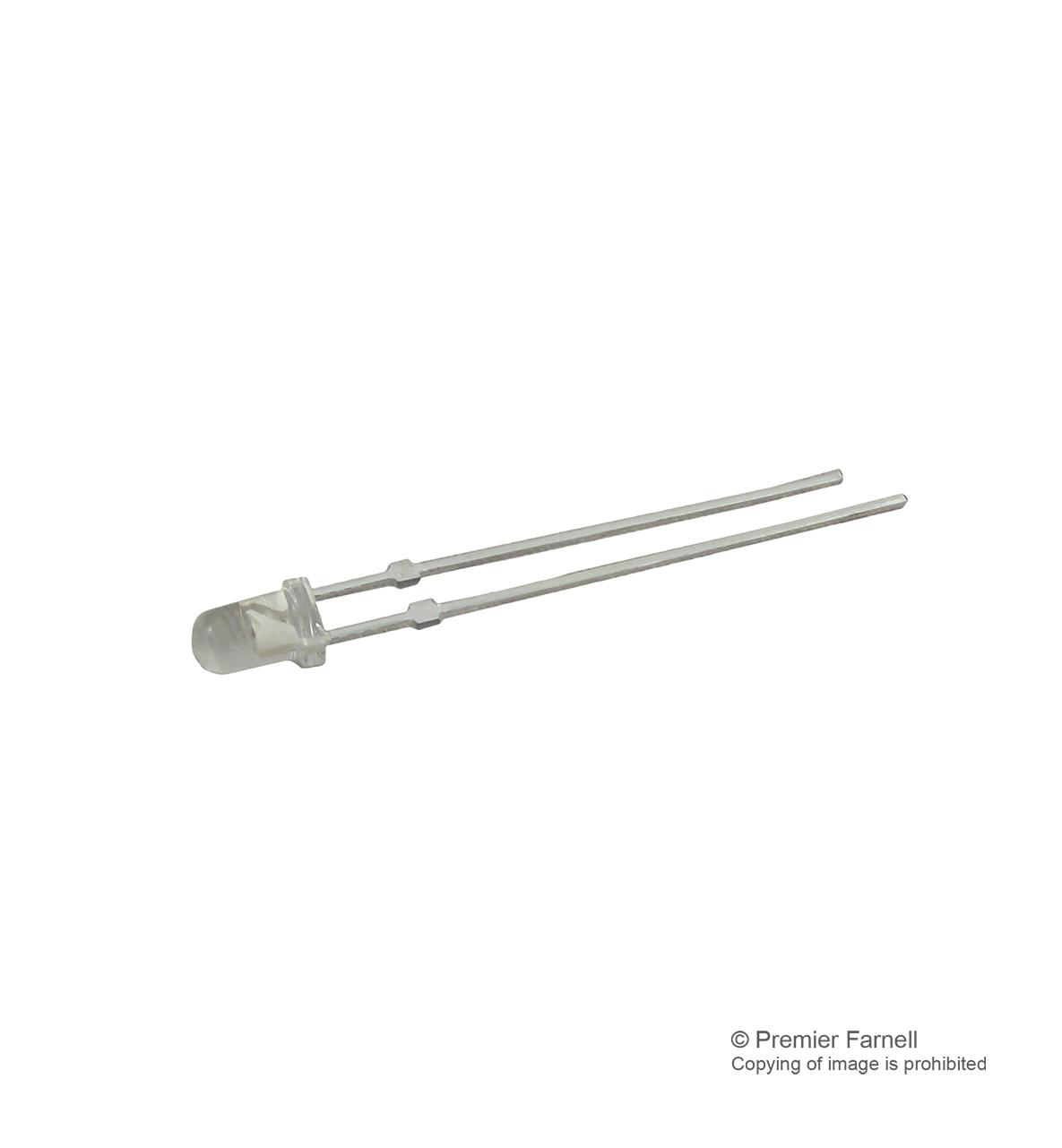

WURTH ELEKTRONIK 151033YS03000 Mono-color Round LED
The Würth Elektronik 151033YS03000 is a compact, THT (Through-Hole Technology) mono-color round LED designed for integration into a wide range of electronic equipment. Its waterclear lens provides excellent light transmission, while the yellow emitting color makes it suitable for status indication, backlighting, and decorative lighting applications. Operating within a temperature range of -40°C to +85°C, this LED offers reliable performance in diverse environments. It is not intended for use in safety-critical applications without proper evaluation and agreement with Würth Elektronik.
WURTH ELEKTRONIK 151033YS03000 Mono-color Round LED Specifications:
- Power Dissipation: 78 mW
- Peak Forward Current: 100 mA @ 1 kHz
- Continuous Forward Current: 30 mA
- Reverse Voltage: 5 V
- ESD Threshold (HBM): 2000 V
- Chip Technology: AlInGaP
- Emitting Color: Yellow
- Lens Type: Waterclear
- Operating Temperature: -40 up to +85 °C
- Storage Temperature (in original packaging): -40 up to +85 °C
- Storage Temperature (for single parts): -40 up to +100 °C
- Moisture Sensitivity Level (MSL): 1
- Peak Wavelength (λPeak): 592 nm
- Dominant Wavelength (λDom): 589 nm
- Luminous Intensity (IV): 850 - 2100 mcd
- Forward Voltage (VF): 2 - 2.6 V
- Spectral Bandwidth (Δλ): 15 nm
- Reverse Current (IREV): 50 µA
- Viewing Angle (2θ50%): 30 °
- Dimensions: 3 mm
