WURTH ELEKTRONIK 15427285BA242 Infrared LED
This SMT infrared QFN LED features waterclear lens type and AllnGaAs chip technology, emitting infrared light with a wavelength around 850 nm. It operates efficiently within -40°C to +85°C temperature range, with a maximum forward current of 1500 mA and peak current of 2000 mA. The device has a viewing angle of 120°, forward voltage between 3.2V and 3.6V, and radiant flux up to 900 mW at 1000 mA. RoHS, REACH, and halogen-free compliant, designed for reliable optical performance in electronic applications.
WURTH ELEKTRONIK 15427285BA242 Infrared LED Specifications:
- Wavelength: approx. 850 nm at 1000 mA
- Centroid Wavelength: 845 nm at 1000 mA
- Radiant Flux: 800-900 mW at 1000 mA
- Forward Voltage: 3.2-3.6 V at 1000 mA
- Viewing Angle: 120° at 1000 mA
- Peak Forward Current: 2000 mA, duty cycle 10% at 1 kHz
- Continuous Forward Current: 1500 mA
- Reverse Voltage: 5V
- Operating Temperature Range: -40°C to +85°C
- Storage Conditions: < -40°C, < 90% RH
- Certifications: RoHS, REACH, Halogen Free
- Chip Technology: AllnGaAs
- Lens Type: Waterclear
- Package: QFN
- Soldering Profile: Preheat 150-200°C, max. ramp rate 3°C/sec, max peak temperature 260°C

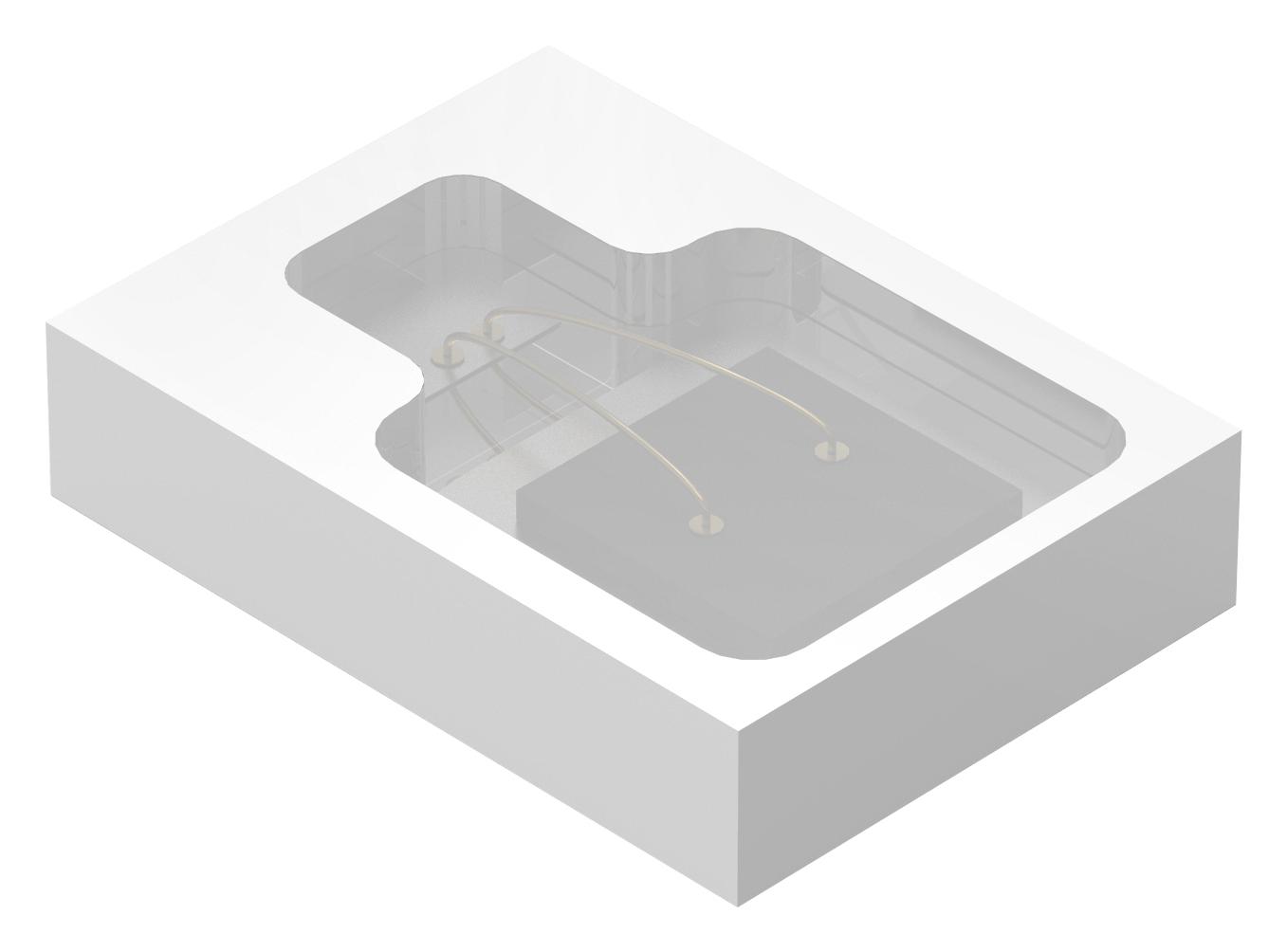

Buy the Buy WURTH ELEKTRONIK Infrared QFN LED Part Number 15427285BA242 Online
Order the WURTH ELEKTRONIK infrared LED part number 15427285BA242 online today to enhance your electronic projects. This high-quality QFN package features waterclear lens type and AllnGaAs chip technology, emitting infrared light at approximately 850 nm. It operates efficiently between -40°C and +85°C with a forward voltage of 3.2V to 3.6V and radiant flux up to 900 mW. The device complies with RoHS, REACH, and halogen-free standards, ensuring safety and environmental friendliness. Easy to integrate, this IR LED provides excellent illumination for sensors, remote controls, and communication devices, delivering consistent and reliable optical performance to meet your design needs.
Buy WURTH ELEKTRONIK 15427285BA242 infrared LED now and experience reliable optical performance in your electronic designs.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 15427285BA242?
You can click on the BUY or RFQ button to purchase 15427285BA242 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 15427285BA242?
You can download the 15427285BA242 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 15427285BA242?
WURTH ELEKTRONIK
